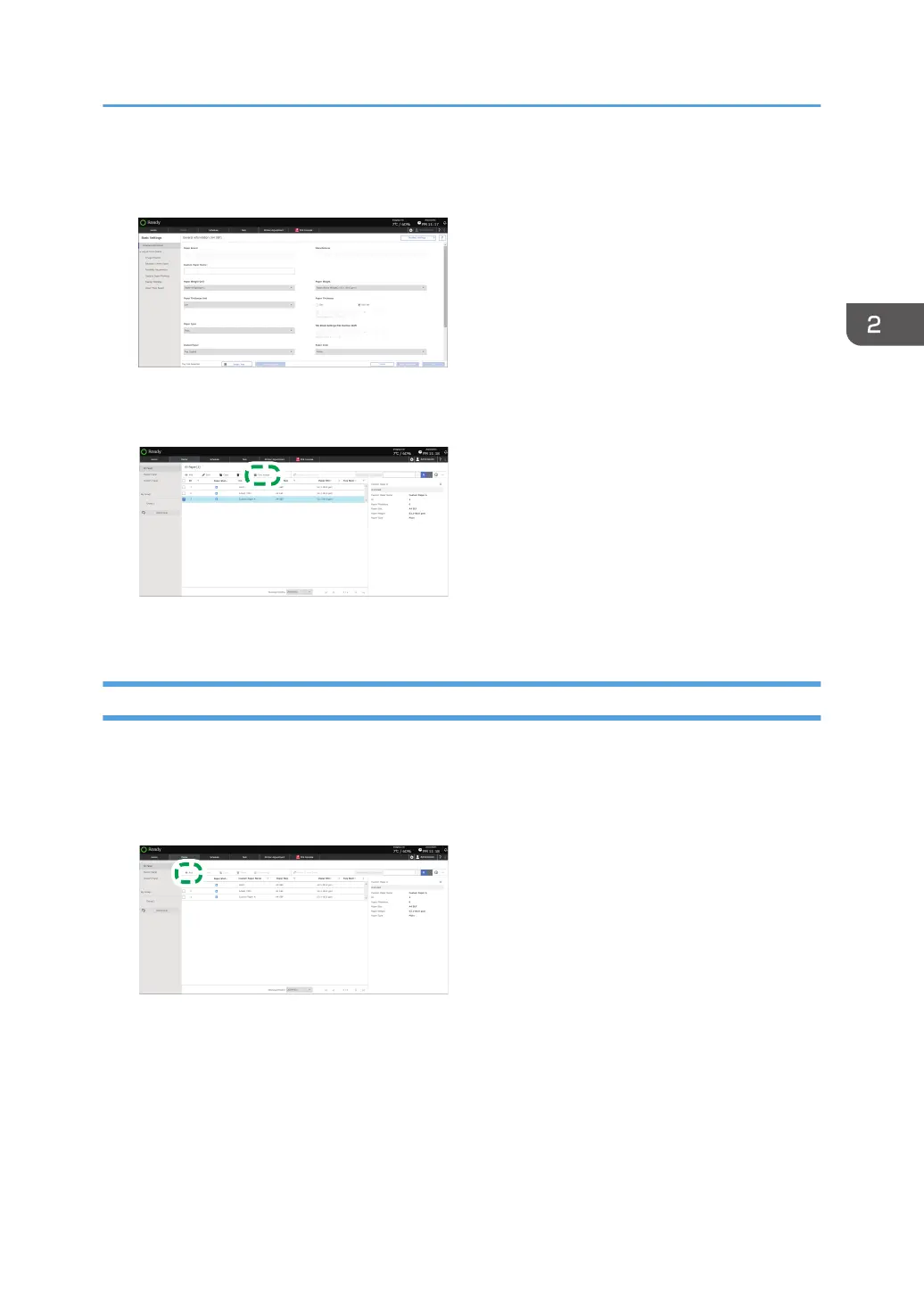

4.
Enter the paper name, and specify the paper weight, thickness, type, and other
attributes.
5.
Press [OK].
6.
Specify a registered paper, and then press [Tray Assign].
M0EBPM7120
7.
Specify the paper tray to specify the paper size, and then press [OK].
Specifying a Custom Size Paper
Specify the paper size on the control panel when loading paper of a custom size.
1.
Press the [Media] hub.
2.
Press [Add].
M0EBPM7121
3.
Select [Create New Custom Size].
Loading Paper into the Paper Tray
