Setting Items
Default
Value
Max.
Value
Min.
Value
Step
Unit
01: A3 SEF
02: B4 JIS SEF
03: 11 × 17 SEF
04: 8
1
/
2
× 14 SEF
05: Other Paper Sizes
0
1
-1
0.1
mm

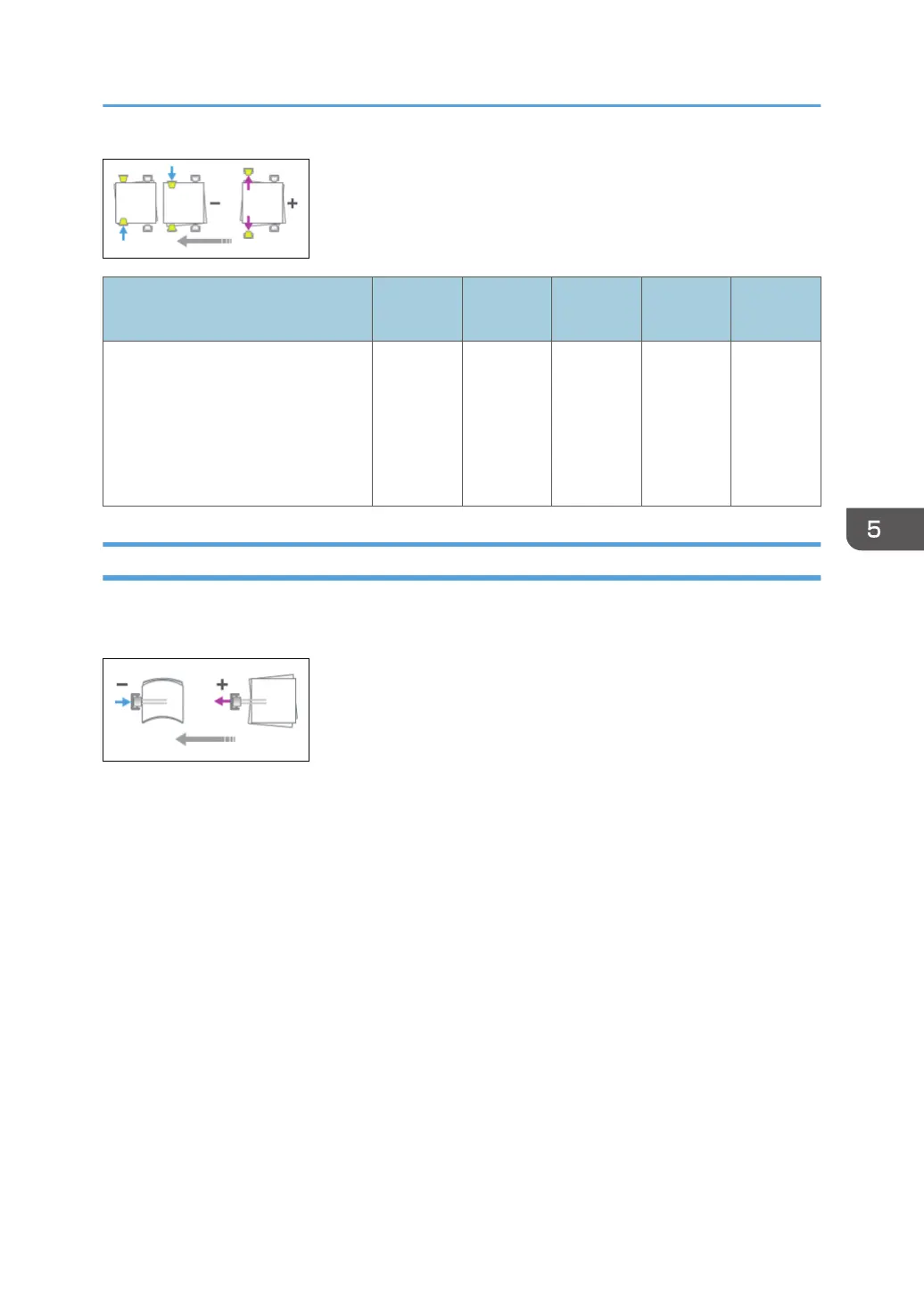

0903: Paper Alignment in Stacker Tray: With Feed
Adjust the alignment position of the Tip Stopper at the Stacker to reduce variations of paper orientation
in the feeding direction due to paper size, thickness, curl, etc.
09: Finishing: Stacker
243
244
246
