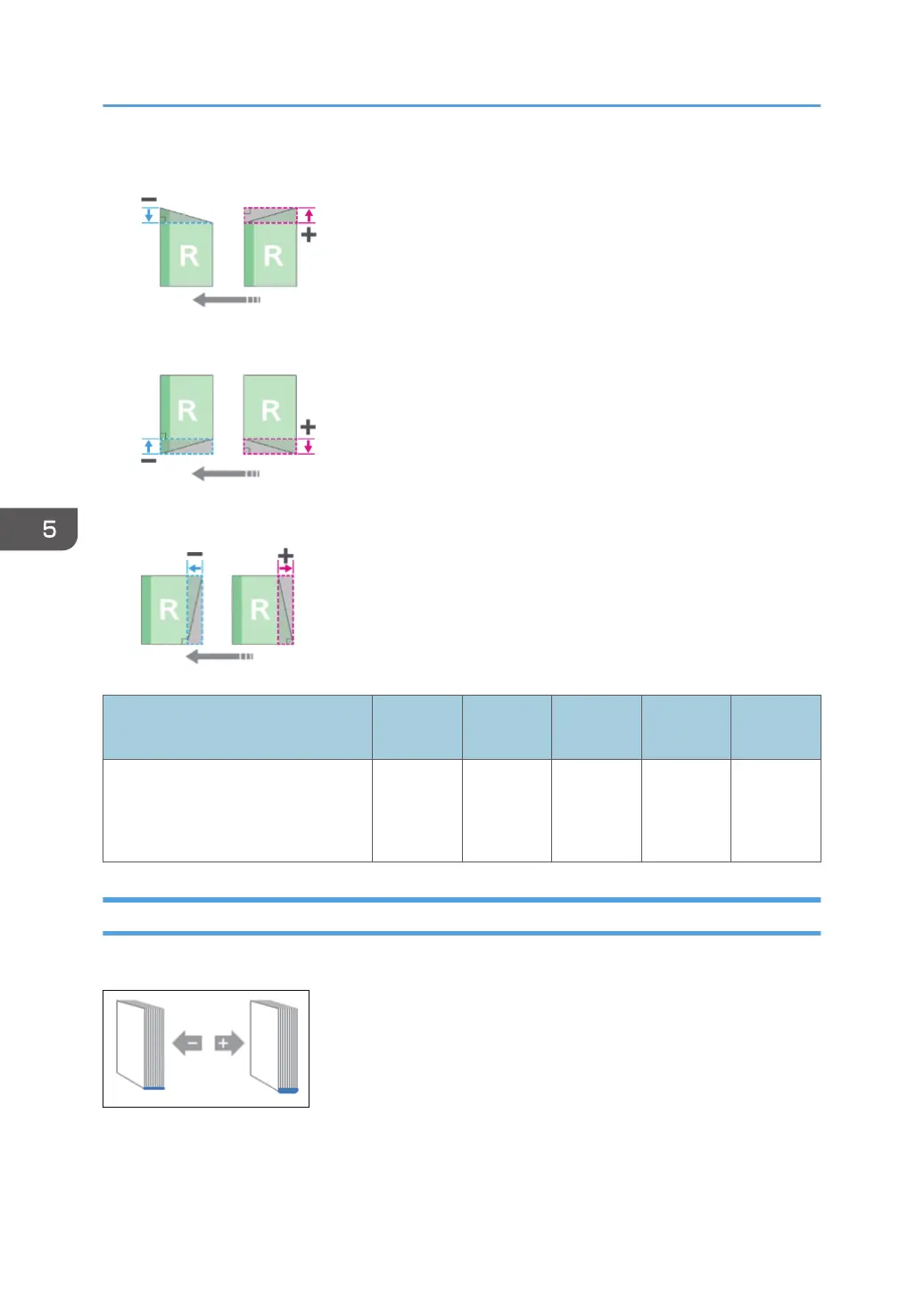

On Head Edge
M0EDIM0224
On Tail Edge
M0EDIM0225
On Fore Edge
M0EDIM0226
Setting Items
Default
Value
Max.
Value
Min.
Value
Step
Unit
01: Head Edge
02: Tail Edge
03: Fore Edge
0
10
-10
0.1
mm
0804: Applying Binding Glue
Adjust the amount of glue for Perfect Binding.
5. Adjustment Settings for Operators
