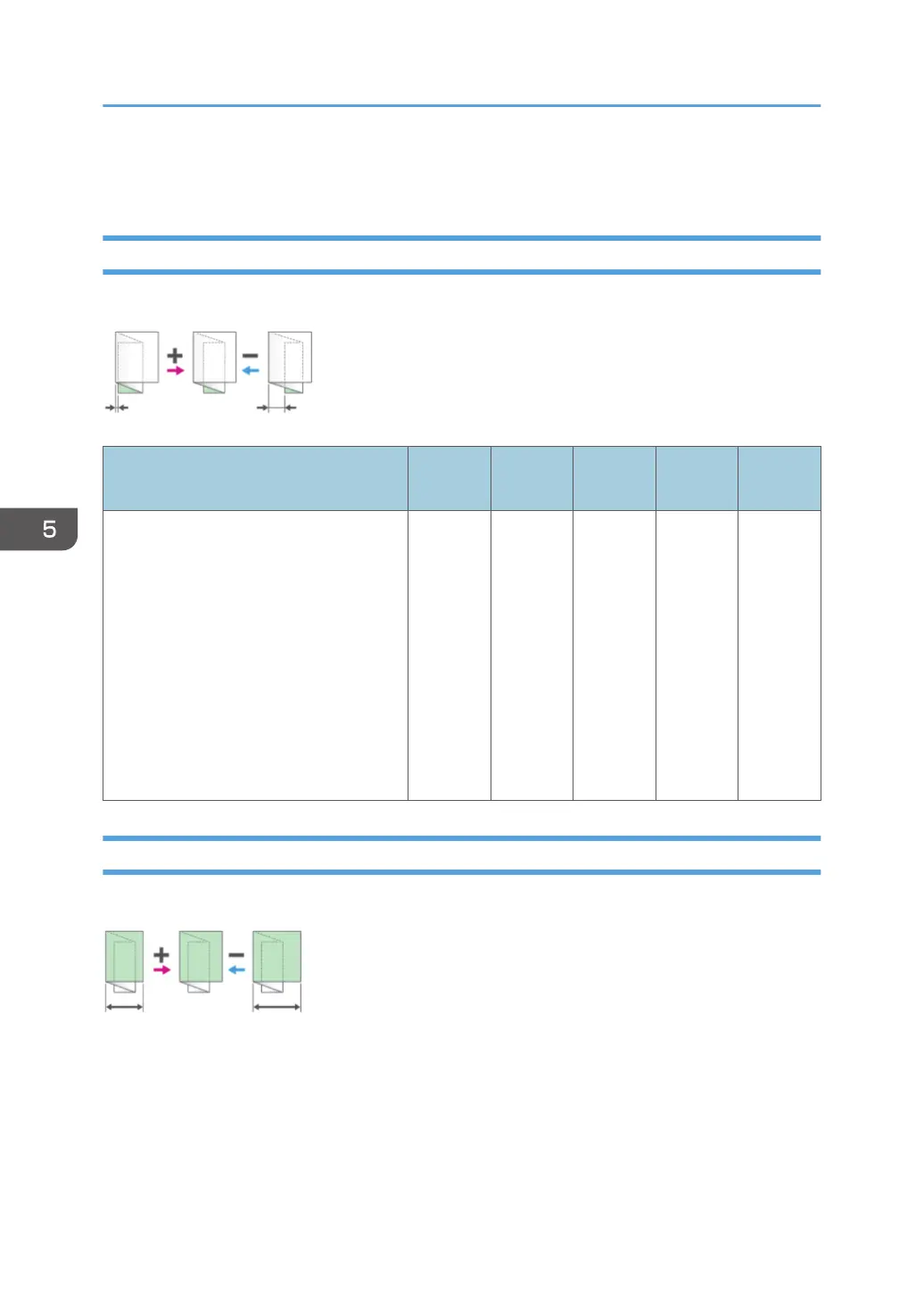

07: Finishing: Fold
0701: Z-fold Position 1
Adjust the fold position 1 for Z-folding using the Paper Folding Unit.
M0EDIM0216
Setting Items
Default
Value
Max.
Value
Min.
Value
Step
Unit
01: A3 SEF
02: B4 JIS SEF
03: A4 SEF
04: 11 × 17 SEF
05: 8
1
/
2
× 14 SEF
06: 8
1
/
2
× 11 SEF
07: 8K SEF
08: 8
1
/
2
× 13
2
/
5
SEF
09: Other Paper Sizes
0
4
-4
0.1
mm
0702: Z-fold Position 2
Adjust the fold position 2 for Z-folding using the Paper Folding Unit.
M0EDIM0217
5. Adjustment Settings for Operators
230
