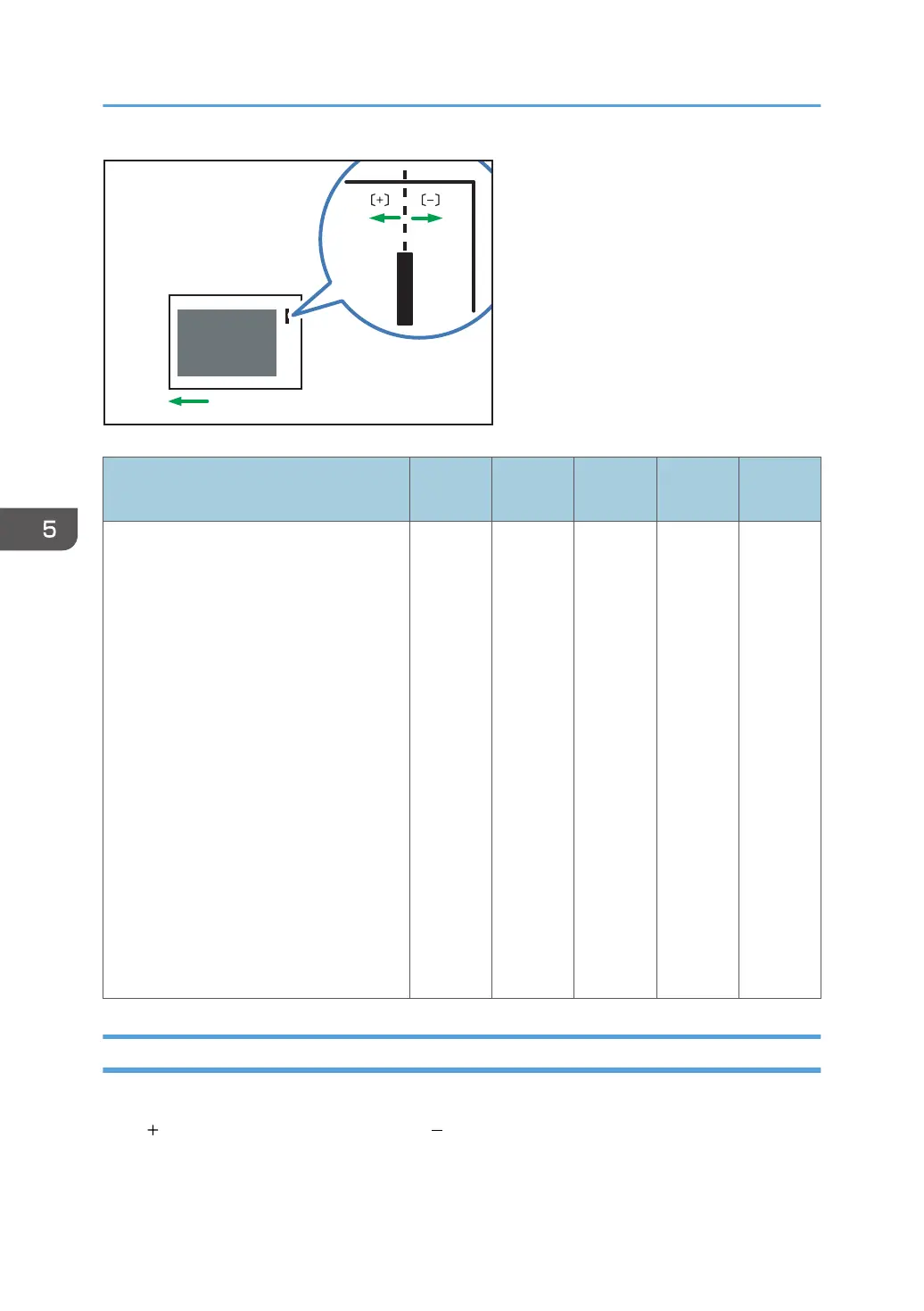

Paper feed direction
T
railing
edge
Leading
edge
DFZ003
Setting Items
Default
Value
Max.
Value
Min.
Value
Step
Unit
01: A3 SEF
02: B4 JIS SEF
03: A4 LEF
04: A4 SEF
05: B5 JIS LEF
06: B5 JIS SEF
07: 11 × 17 SEF
08: 8
1
/
2
× 14 SEF
09: 8
1
/
2
× 11 LEF
10: 8
1
/
2
× 11 SEF
11: 8K SEF
12: 16K LEF
13: 16K SEF
14: Other Paper Sizes
15: 8
1
/
2
× 13
2
/
5
SEF
0
2
-2
0.1
mm
0606: Punch Position: Across Feed
Adjust the vertical position of the punch holes when using Finisher or Booklet Finisher.
Press [
] to move the position forward (up), or [
] to move it backward (down).
