5
08/2005 ShopTurn Functions
5.5 Millin
5
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 5-243
EP Maximum insertion pitch (for helical insertion only)
The helix gradient might be smaller in some geometric conditions.
mm/rev
ER Insertion radius (for helical insertion only)
The radius cannot be any larger than the cutter radius; otherwise, material will
remain. Also make sure the pocket is not violated.
mm
FZ Depth infeed feedrate (for end face/end face C and end face Y with central insertion
only)
mm/tooth
mm/min
FX Depth infeed feedrate (for peripheral surface/peripheral surface C and peripheral
surface Y with central insertion only)
mm/tooth
mm/min
5.5.3 Rectangular spigot
The "Rectangular spigot" function is used when you want to mill
various rectangular spigots.

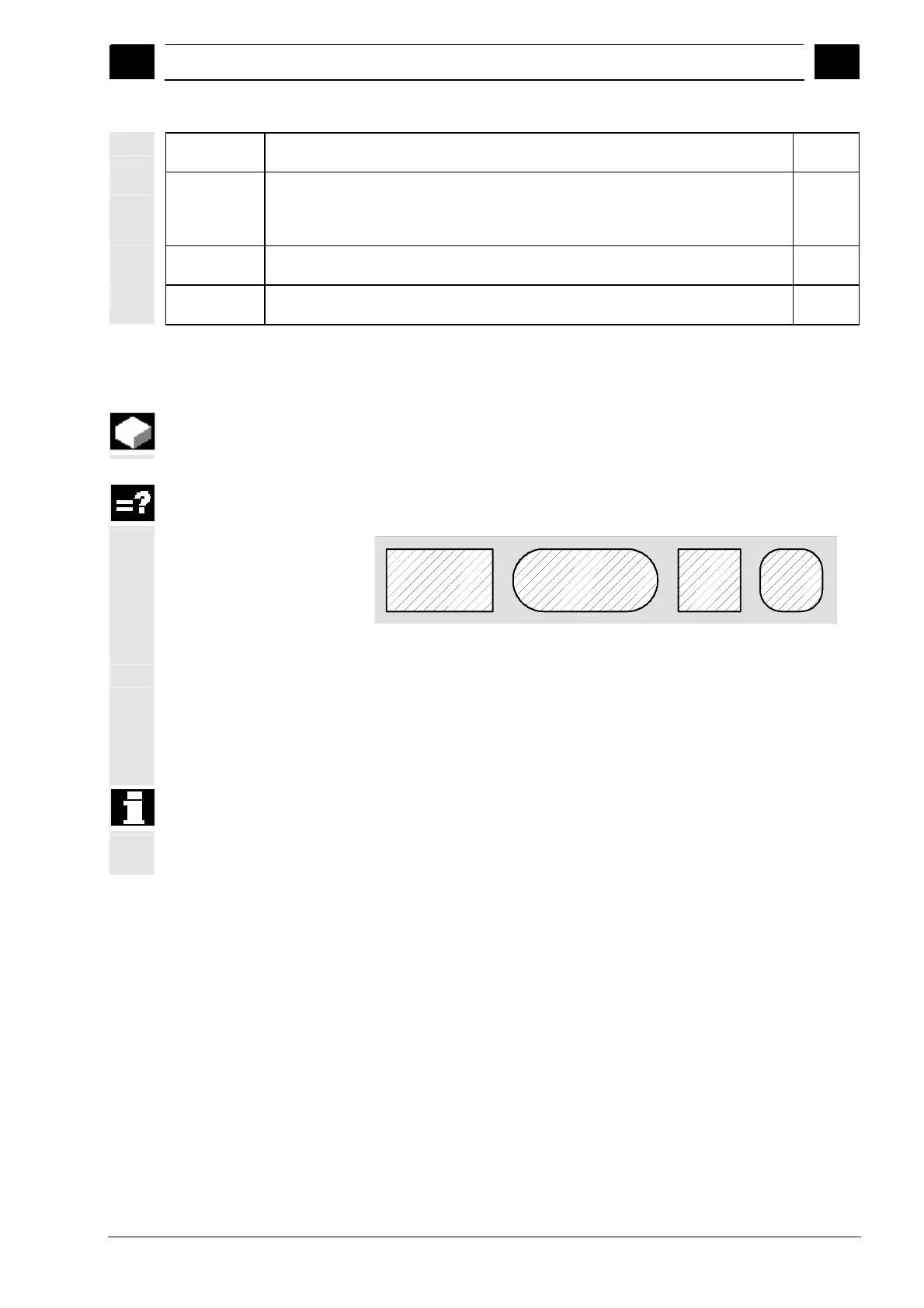

You can select from the following shapes with or without a corner
radius:
Rectangular spigot
In addition to the required rectangular spigot, you must also define a
blank spigot, i.e. the outer limits of the material. The tool moves at
rapid traverse outside this area. The blank spigot must not overlap an
adjacent blank spigots. ShopTurn automatically centers the finished
spigot within the blank.
The spigot is machined using only one infeed. If you want to machine
the spigot using multiple infeeds, you must program the "Rectangular
spigot" function several times with a reducing finishing allowance.
