08/2005 Setting Up the Machine
2.7 Zero-
oint offsets
2
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 2-75
2.7.3 Zero-point offset list

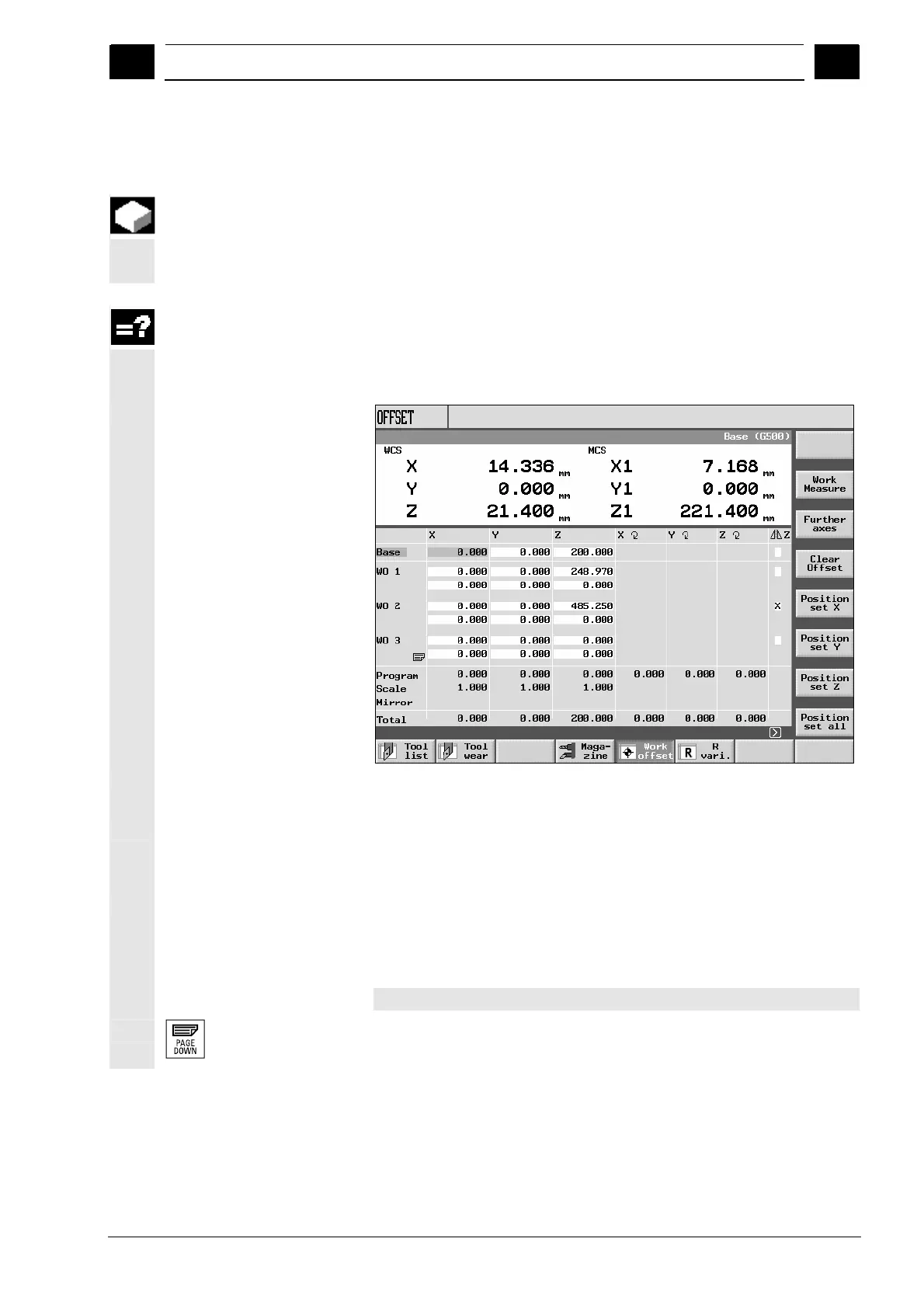

The individual work offsets as well as the total offset are all displayed
in the work offset list. The currently active work offset is displayed on a
gray background. The work offset list also includes the current axis
positions in the machine and workpiece coordinate systems.
If the turning machine has a counter-spindle, a display in the column
completely to the right also shows which zero-point offset for the
machining with a counter-spindle was mirrored. If required, you can
also deselect the mirroring of the zero-point offset.
Work offset list
Base offset
Basic reference The coordinates of the base offset appear.
You can change these here in the list.
Work offsets
ZPO1 ... ZPO4 The coordinates of the individual zero-point offsets (1st line coarse
offset, 2nd line fine offset) are displayed. You can change these at this
point in the list (see Sec. "Defining zero-point offsets").
Fine offsets must be set up by the machine manufacturer.
Please also refer to the machine manufacturer's instructions.
You can display more work offsets with the "Page Down" key.
