9.3 Managing programs with PCU 50.3 (HMI Advanced)
For the ShopTurn variant with PCU 50.3 (HMI Advanced), there is
also an individual hard-disk in addition to the NCK work memory. This
makes it possible to store all the programs that are not currently
needed in the NCK on the hard-disk.
In addition, the directory management of a disk-drive, USB-drive, or
network drive can be displayed.

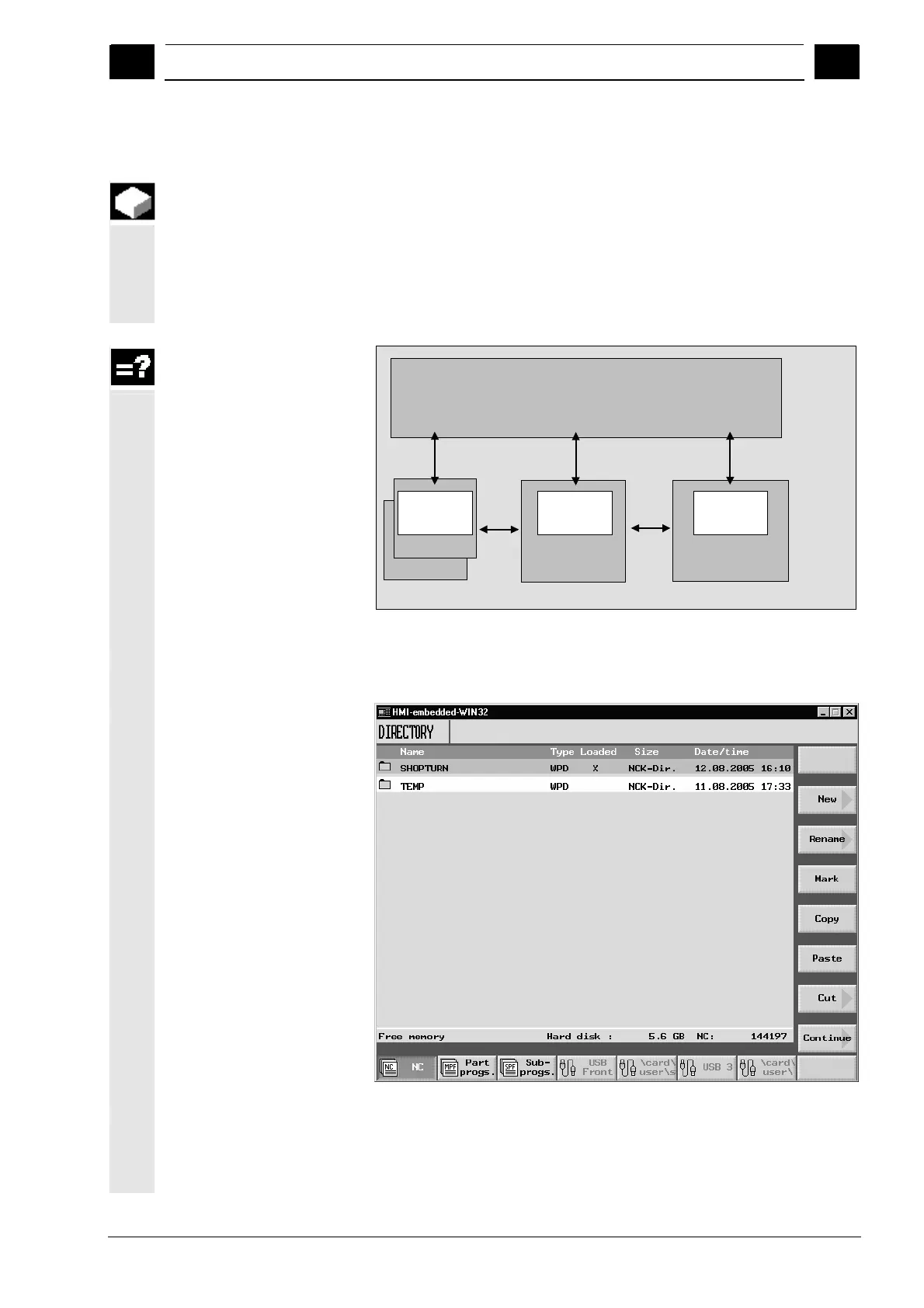

ShopTurn user interface PCU 50.3
NC main memory
edit
Data manage-
ment on hard
disk
ShopTurn programs
ShopTurn subroutines
G code programs
edit
edit
load
unload
save
Diskette drive
edit
Network drive
ShopTurn programs
ShopTurn subroutines
G code programs
ShopTurn programs
ShopTurn subroutines
G code programs
Data storage with PCU 50.3
You will find an overview of all directories and programs in the
Program Manager.
Program manager PCU 50.3 (HMI Advanced)
In the horizontal softkey bar, you can select the storage medium that
contains the directories and programs that you want to display. In
addition to the "NC" softkey, via which the data of the NCK-work
memory can be displayed, another 8 softkeys can be used.
