GEARSHIFTING 9-3
GEARSHIFT LINKAGE
REMOVAL
• Drain engine oil. (2-13)
• Drain engine coolant. (14-3)

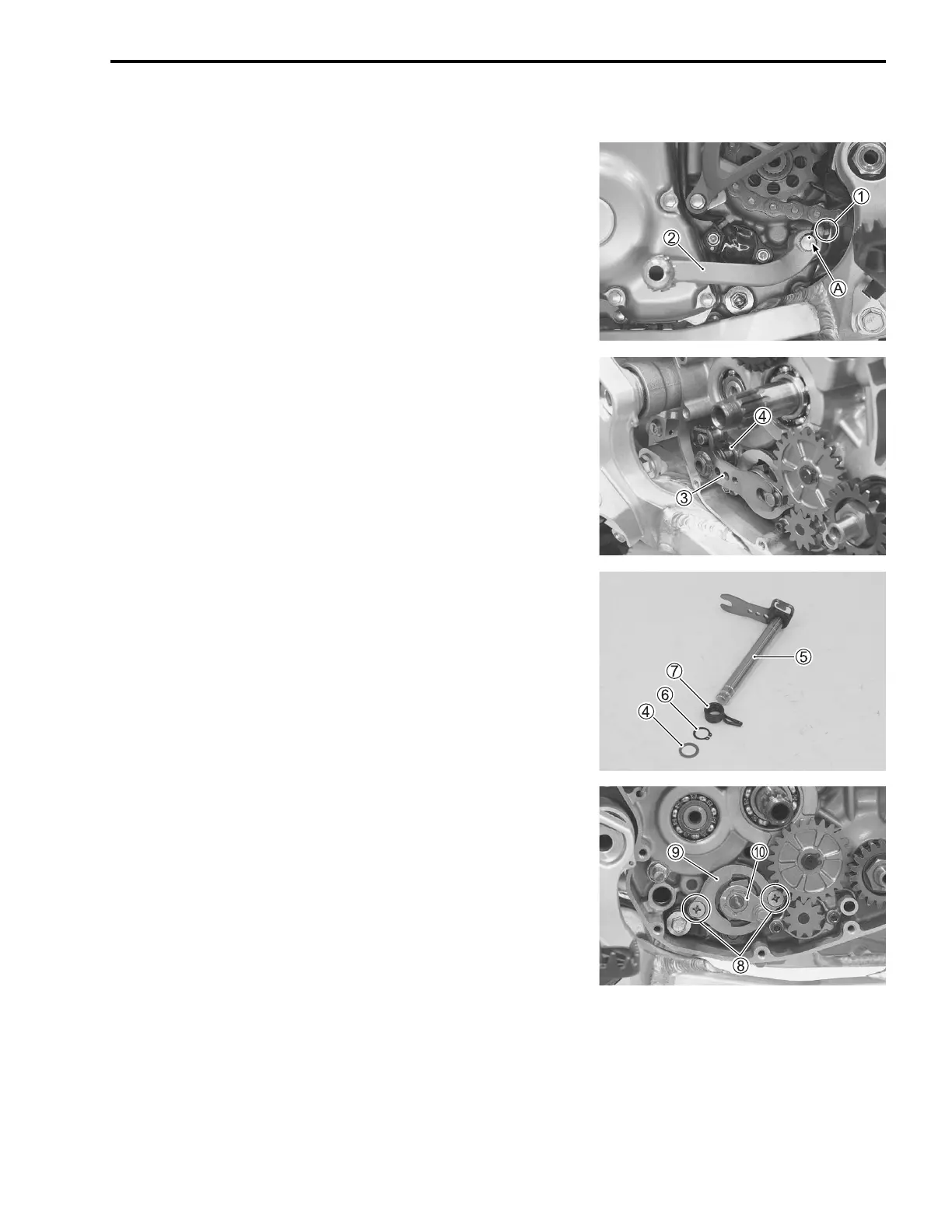

• Remove the gearshift lever 2 by removing its bolt 1.
NOTE:
Mark the gearshift shaft head A at which the gearshift lever slit
set for correct reinstallation.
• Remove the right crankcase cover and clutch component
parts. (7-9, 8-3)
• Remove the gearshift shaft assembly 3 and washer 4.
• Remove the washer 4, snap ring 6 and return spring 7 from
the gearshift shaft 5.
09900-06107: Snap ring remover (Open type)
• Remove the gearshift pawl lifter 9 by removing its screws 8.
• Remove the gearshift cam driven gear 0.
NOTE:
Be careful not to drop the pins and springs when removing the
gearshift cam driven gear.
To Next Page
