6-4 CYLINDER HEAD, CYLINDER AND PISTON
ENGINE TOP SIDE DISASSEMBLY
CYLINDER HEAD COVER REMOVAL
• Remove the seat. (5-2)
• Remove the radiator covers and fuel tank. (13-2, -3)
• Remove the ignition coil/plug cap and spark plug. (2-7)

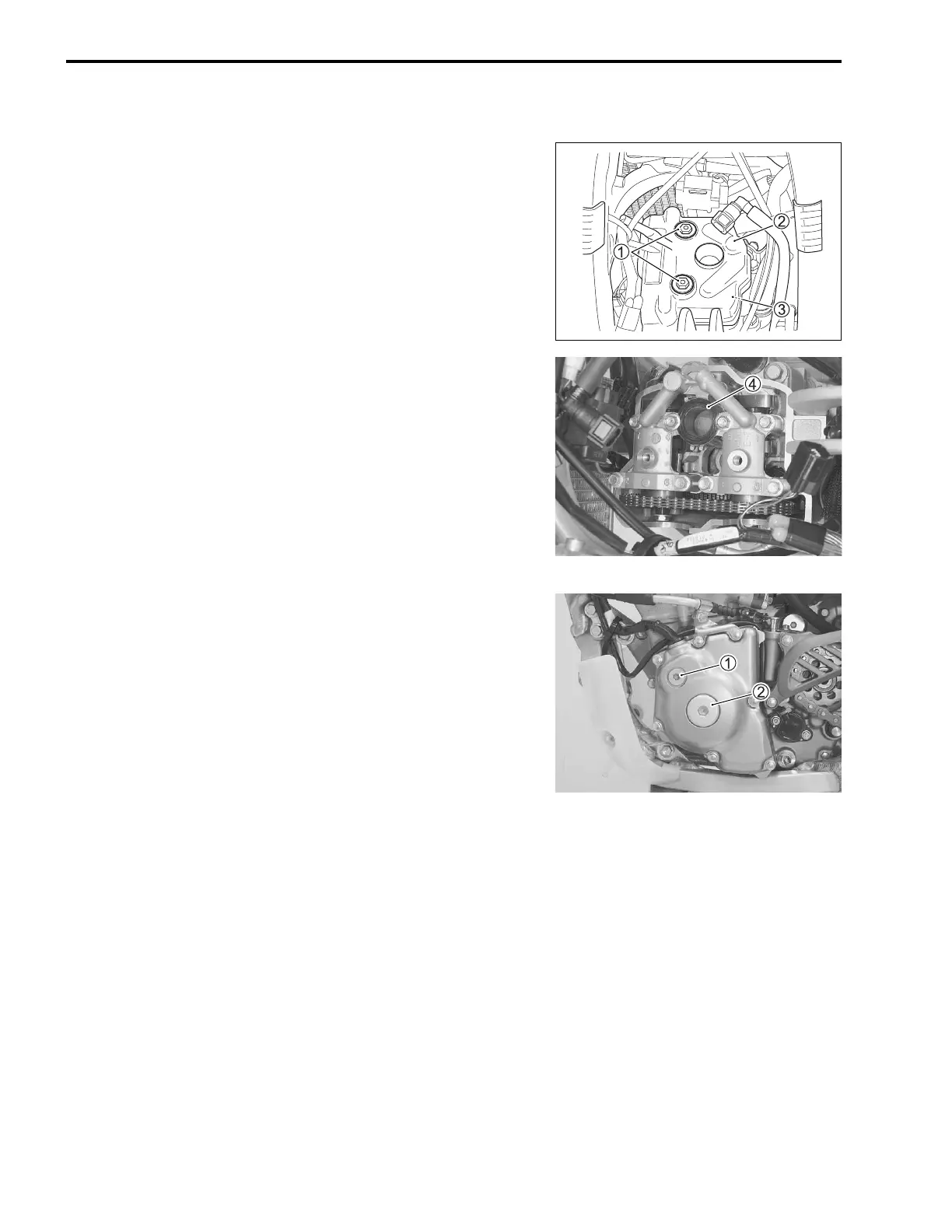

• Remove the cylinder head cover 2 and gasket 3 by remov-
ing their bolts 1.
• Remove the cylinder head cover No.2 gasket 4.
CAMSHAFTS (AUTOMATIC DECOMP.) AND
CAM CHAIN TENSION ADJUSTER REMOVAL
• Remove the cylinder head cover. (above)
• Drain engine oil. (2-13)
• Remove the TDC plug 1 and crankshaft hole plug 2.
