FRONT FORK AND STEERING 18-5
REMOVAL

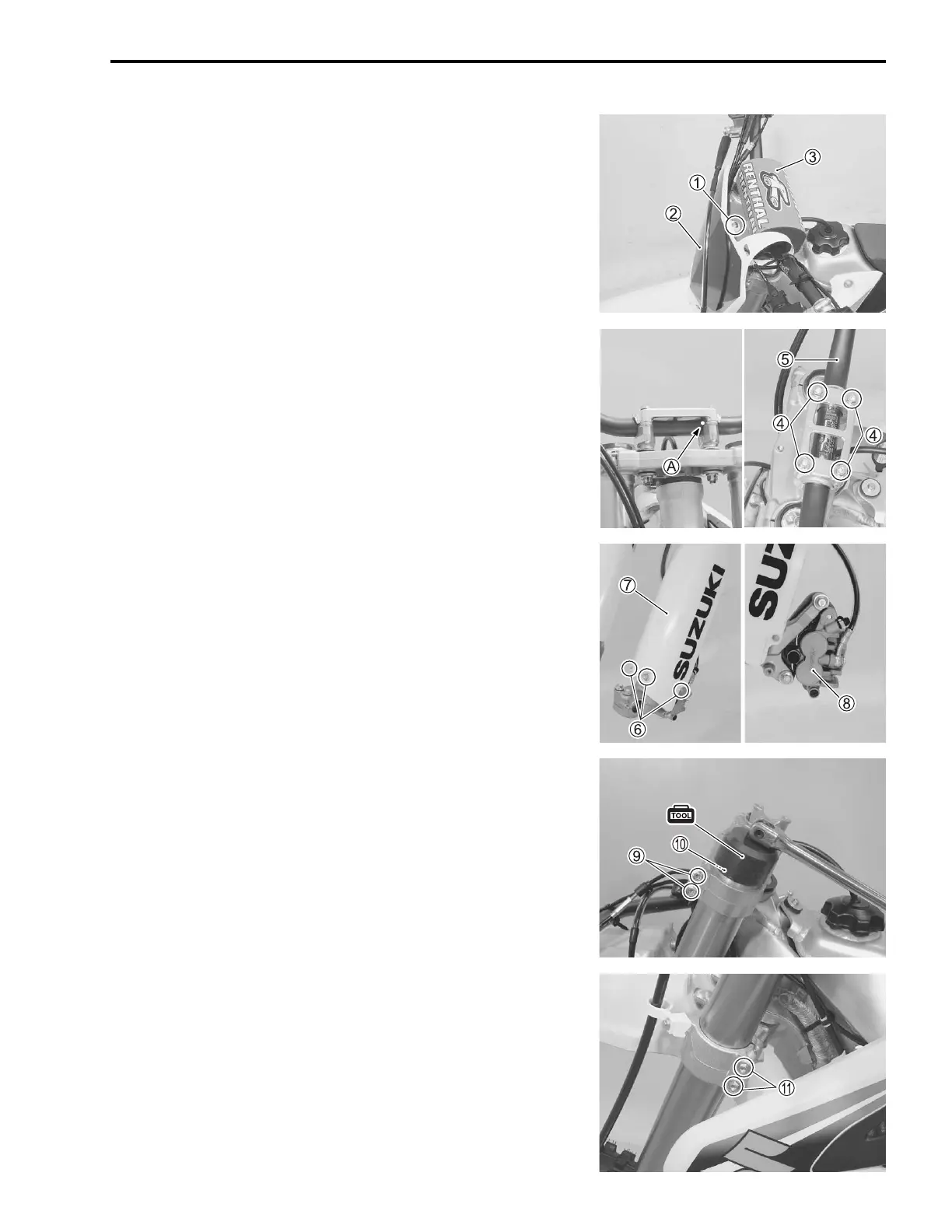

• Place the motorcycle on a block to lift front wheel off the
ground.
• Remove the front wheel. (16-3)
• Remove the front number plate 2 by removing its bolt 1.
• Remove the handlebar pad 3.
• Remove the handlebars 5 by removing the handlebar clamp
bolts 4.
NOTE:
Mark the paint mark A to the matching surface of handlebar
holder and handlebars before removing.
• Remove the fork protector 7 by removing the mounting bolts
6.
• Remove the brake caliper 8. (17-8)
• Loosen the front fork upper clamp bolts 9.
• Loosen the front fork cap bolt 0 1 – 2 turns to facilitate later
disassembly with the special tool.
09941-53630: Front fork cap socket wrench (50 mm)
• Hold the fork body and loosen the front fork lower clamp bolts
A.
• Remove the front fork.
To Next Page
