6-2 CYLINDER HEAD, CYLINDER AND PISTON

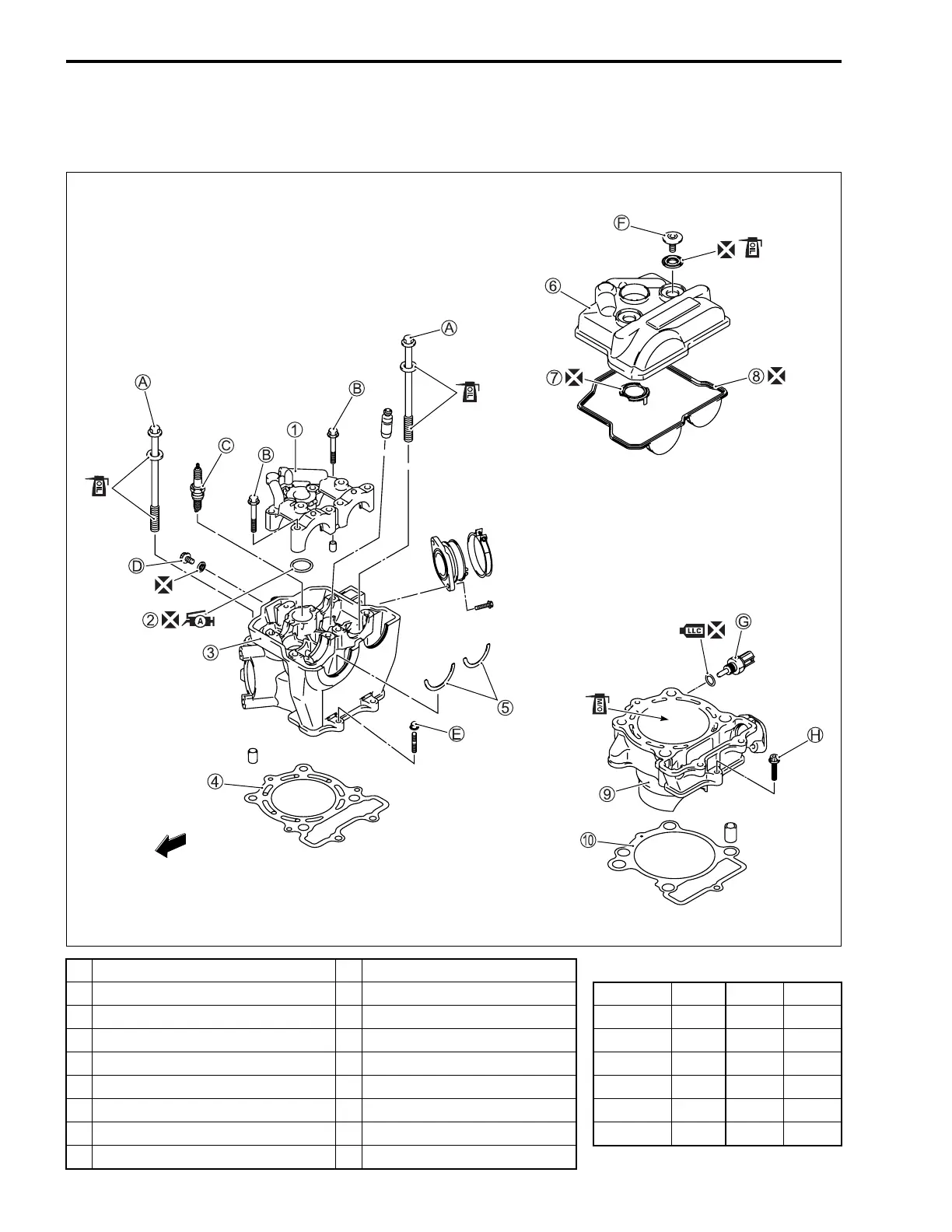

CONSTRUCTION
CYLINDER HEAD AND CYLINDER
1 Camshaft journal holder 0 Cylinder gasket 
2 O-ring A Cylinder head bolt ITEM N·m kgf-m lbf-ft
3 Cylinder head B Camshaft journal holder bolt A (Initial) 25 2.5 18.0
4 Cylinder head gasket C Spark plug A (Final) 51 5.1 37.0
5 C-ring D Oil gallery plug BDE 10 1.0 7.0
6 Cylinder head cover E Cylinder head base nut C 11 1.1 8.0
7 Cylinder head cover No.2 gasket F Cylinder head cover bolt F 14 1.4 10.0
8 Cylinder head cover gasket G ECT sensor GH 12 1.2 8.5
9 Cylinder H Cylinder base bolt
FWD
