11-4 LUBRICATION SYSTEM

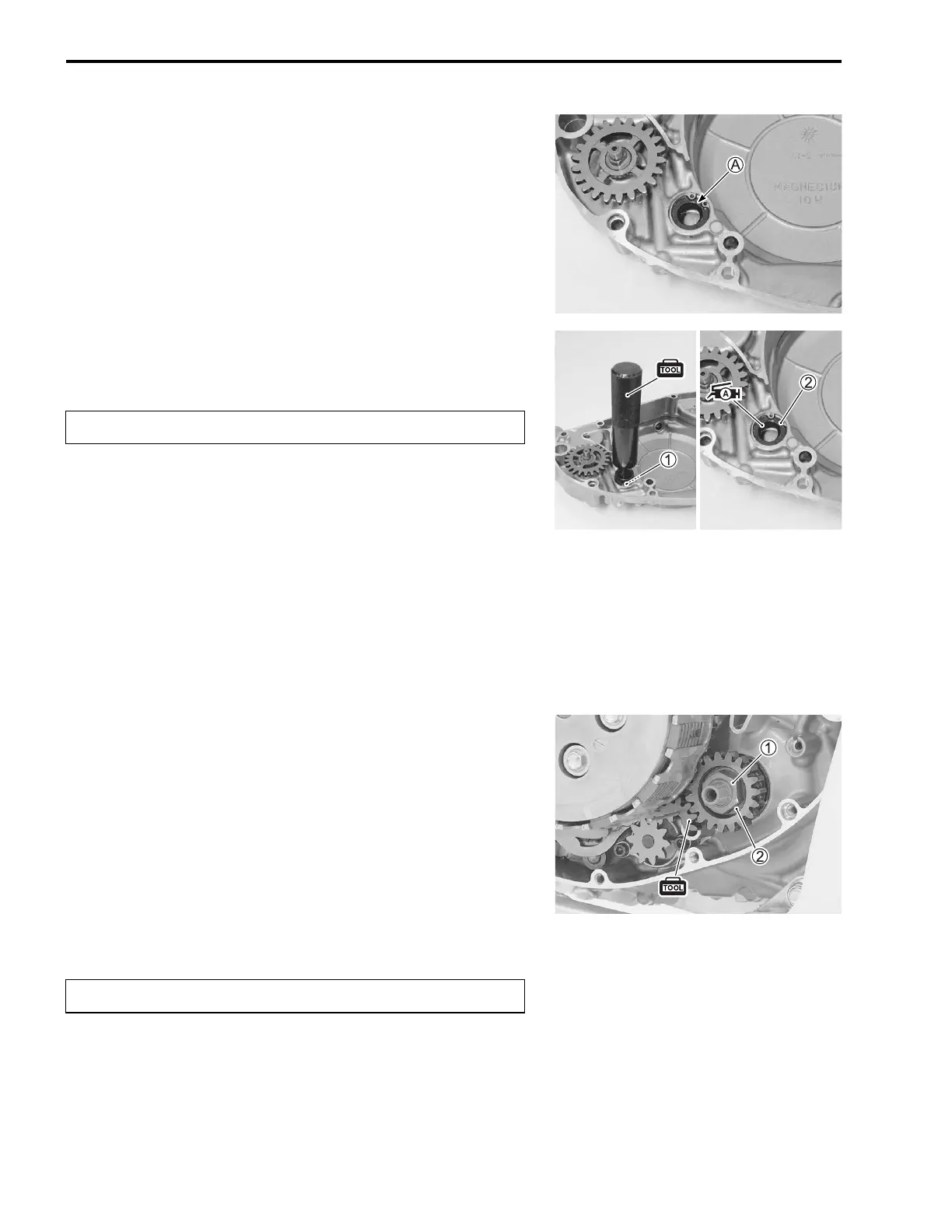

OIL SEAL INSPECTION
For oil seal inspection other than the following, refer to page 10-9.
• Inspect the oil seal lip A for wear and damage.
• If any defects are found, replace the oil seal with a new one.
OIL SEAL INSTALLATION
• Install the oil seal 1 and snap ring 2 with the special tool.
NOTE:
Take care not to scratch the oil seal by the snap ring pliers when
installing the snap ring.
09913-70210: Bearing installer set (10 – 75 )
Oil seal: 22 Attachment
09900-06108: Snap ring remover (Close type)
• Apply grease to the oil seal lip.
99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
OIL PUMP No.1 AND No.2 REMOVAL
OIL PUMP No.1
• Drain engine oil. (2-13)
• Drain engine coolant. (14-3)
• Remove the brake pedal. (17-20)
• Remove the kick starter lever and right crankcase cover.
(8-3)
• Hold the crankshaft immovable with the special tool.
09914-61010: Gear holder
• Remove the primary drive gear nut 1 and washer 2.
Replace the oil seal and snap ring 2 with new ones.
The primary drive gear nut 1 has left-hand threads.
To Next Page
