17-20 FRONT AND REAR BRAKES

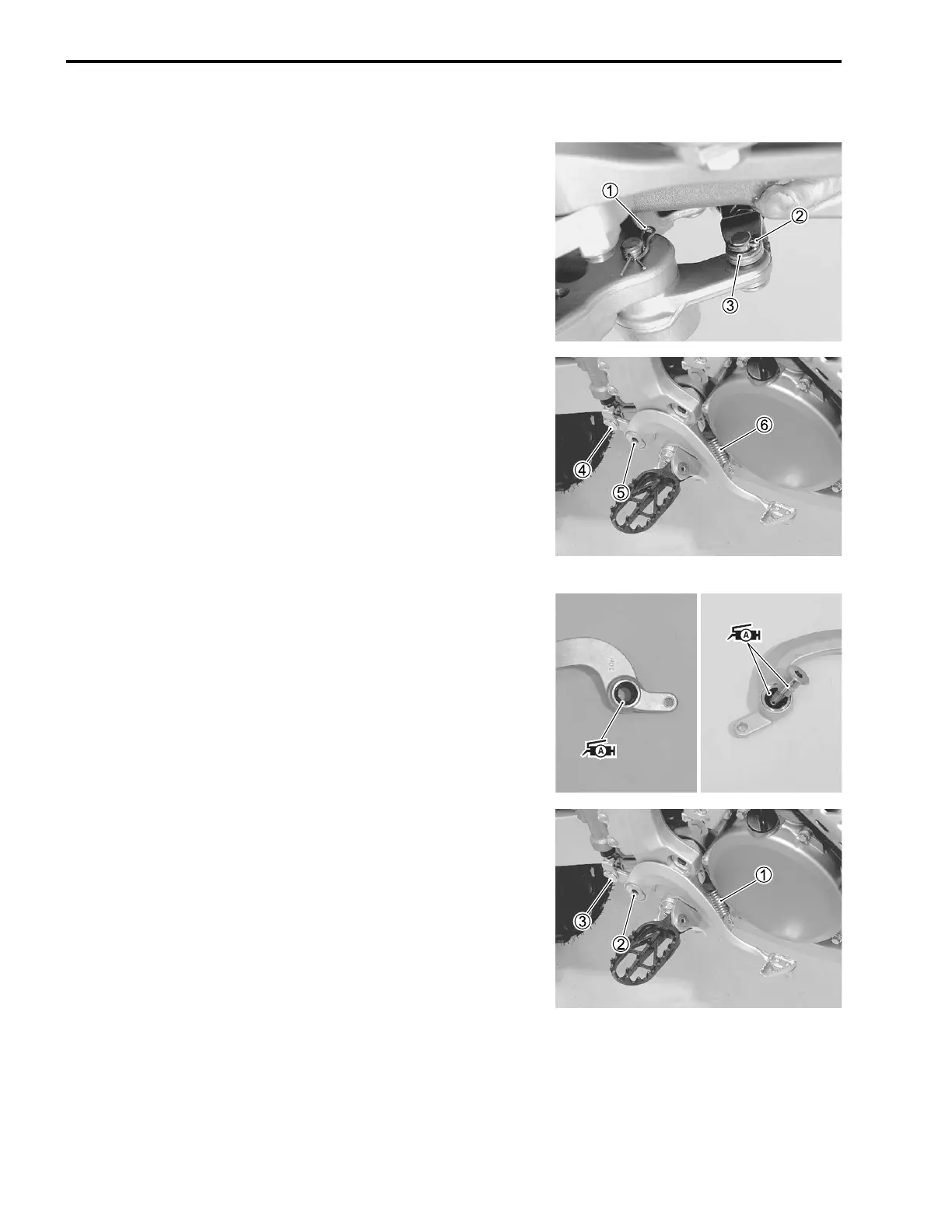

BRAKE PEDAL
REMOVAL
• Remove the clip 1.
• Remove the cotter pin 2 and washer 3.
• Remove the master cylinder rod pin 4.
• Remove the brake pedal pivot bolt 5 and return spring 6.
INSTALLATION
• Apply grease to the oil seals and brake pedal pivot bolt.
 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
• Install the return spring 1 properly. (20-29)
• Tighten the brake pedal pivot bolt 2 to the specified torque.
 Brake pedal pivot bolt: 29 N·m (2.9 kgf-m, 21.0 lbf-ft)
• Install the clip.
• Install the master cylinder rod pin 3, washer and new cotter
pin.
• Adjust the brake pedal height. (2-35)
