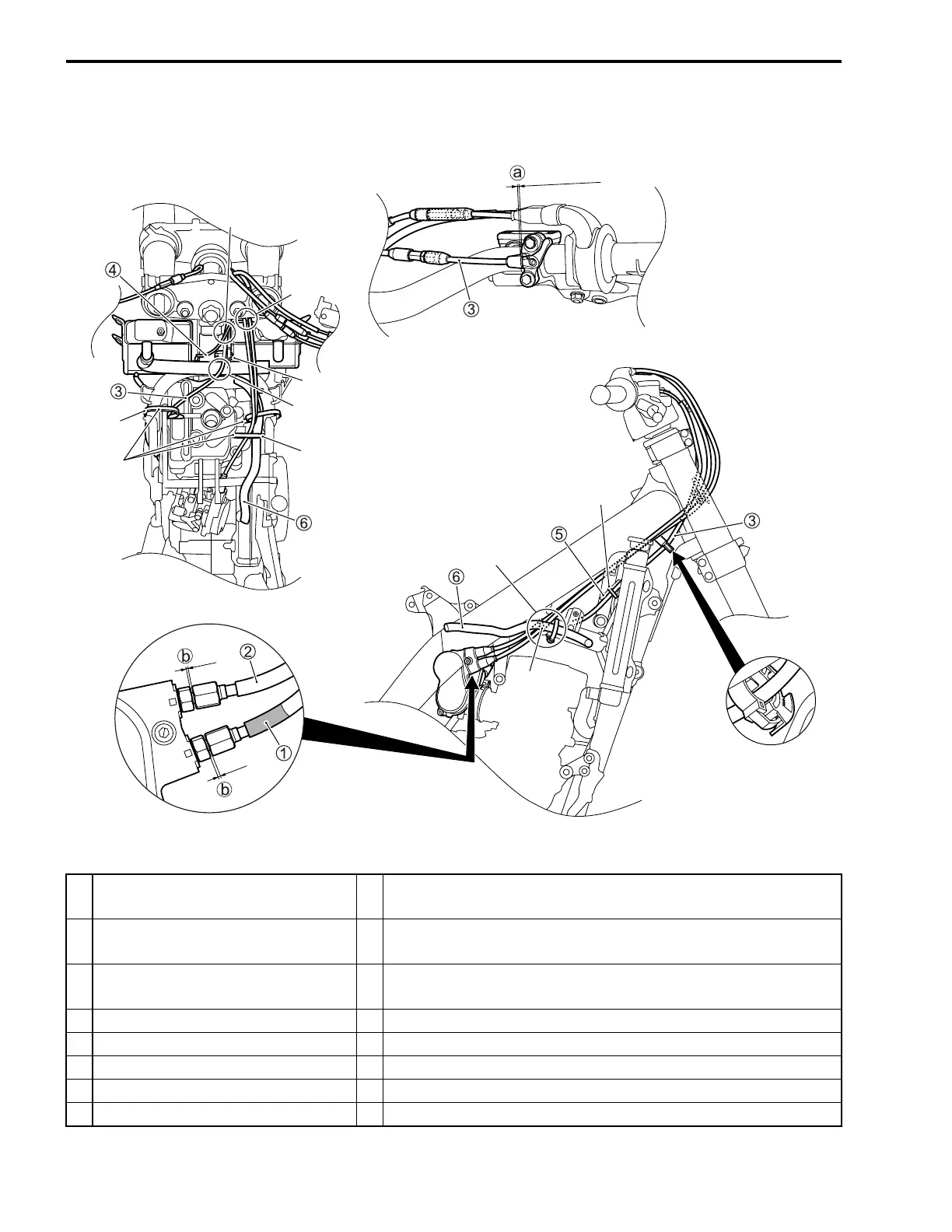

20-22 SERVICING INFORMATION
1 Throttle cable (Pulling cable) *1
Pass the throttle cables over the radiator and radiator overflow
hose.
2 Throttle cable (Returning cable) *2
Pass the hot starter cable between the radiator and frame.
Pass the hot starter cable under the radiator overflow hose.
3 Hot starter cable *3
Bind the hot starter cable and engine stop switch lead wire
with the clamp.
4 Radiator overflow hose *4 Pass the hot starter cable over the radiator hose.
5 Engine stop switch lead wire *5 Bind the throttle cables and wiring harness with the clamp.
6 Wiring harness *6 Bind the hot starter cable and wiring harness with the clamp.
a 2 – 3 mm (0.08 – 0.12 in) *7 Pass the throttle cables inside of the frame bridge.
b 0 – 1.5 mm (0 – 0.06 in) *8 Face the tip of clamp inside.
*3
*2
*6
*7
*5
*5
*1
*3
*4
*8
To Next Page
