3.10.2.10 Rear lower links' position view
The view shows the position of the rear lower links .
GUID-D2673DEE-E150-401F-8439-8E61709A3C22
1. Position of the rear lower links
The display shows the symbol and the position of the rear lower links on a
percentage scale 0-100:
• 0 = The lower links are in the lowest position.
• 50 = The lower links are in the middle position.
• 100 = The lower links are in the top position.
NOTE: The percentage value may not achieve the limit values (0 or 100) even if
the linkage is functioning correctly.
3.10.2.11 Gearbox temperature view
GUID-DB9A91EC-CD8C-4B22-9996-B695BF76858C

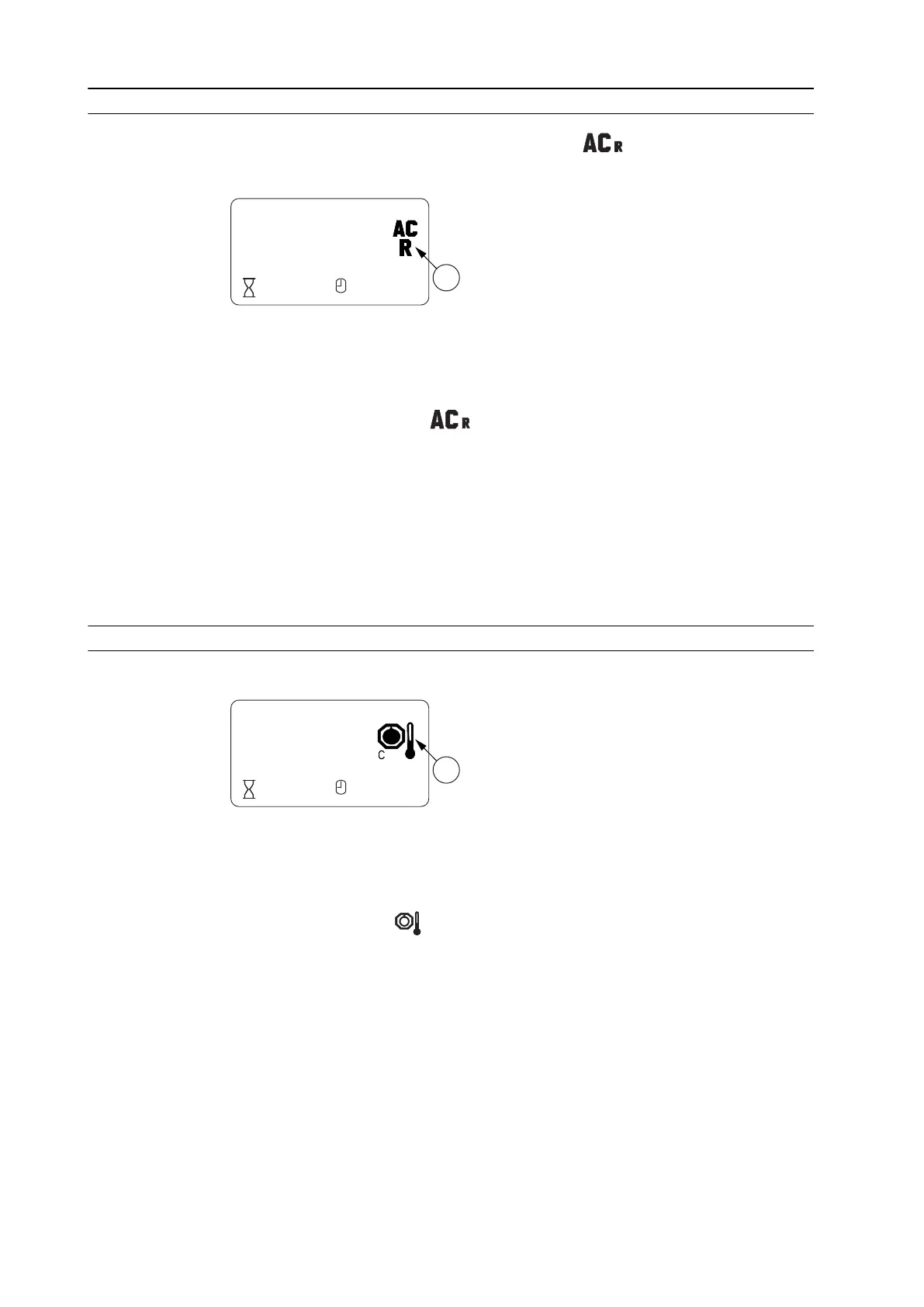

1. Gearbox temperature
The gearbox temperature is displayed as follows:
• When the temperature is below +40°C (+104°F), the text "lo" is displayed.
• When the temperature is between +40-+119°C (+104°F), the actual
temperature is displayed.
• When the temperature is above +119°C (+246°F), the text "high" is
displayed.
NOTE: If the gearbox temperature is continuously above +90°C (+194°F), clean
the radiator and check the oil level.
