3.14.5 Adjusting side limiters
You can adjust the lateral distance between the lower links by changing the
length of the side limiters.

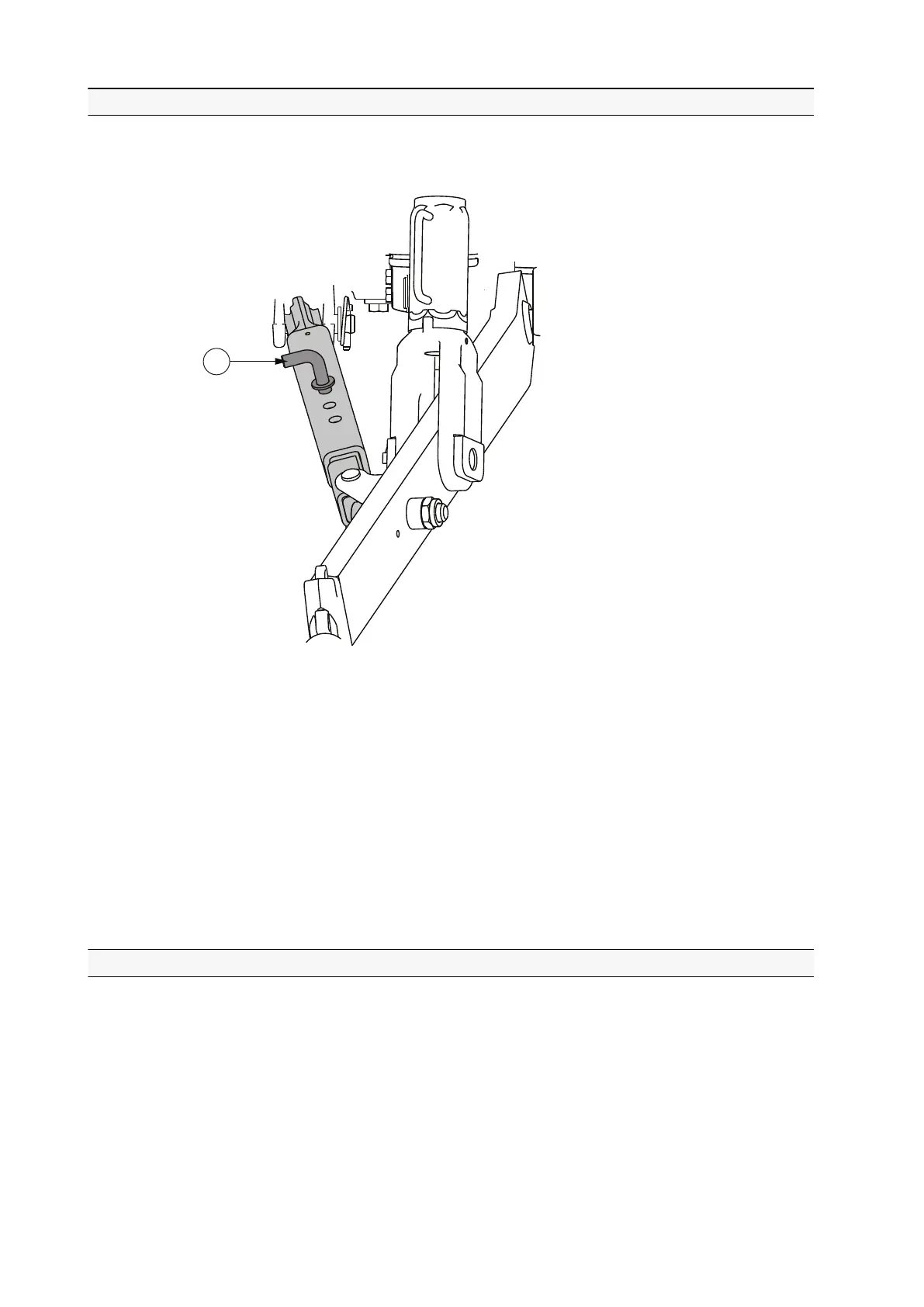

GUID-8A2D119A-7613-4181-A9F2-9EF1767FF114
1. Limiting pin
1. Unfasten the limiting pin.
2. Adjust the distance between the lower links.
Check that the lower links do not come into contact with tyres.
3. Fasten the pin to the appropriate hole to obtain the desired distance between
the lower links.
Attaching the pin to the oval hole allows a slight lateral movement of the
lower links.
3.14.6 Automatic side limiters
The automatic side limiters are used to limit the distance between the lower links.
They can be set to a fixed position, similar to the standard side limiters, or they
can be set to be released to floating position automatically. The automatic side
limiters are optional equipment.
IMPORTANT: Adjust the automatic side limiters so that they do not come into
contact with the rear wheels.
