4.8.9.4 Adjusting flexible front mudguards
Adjust the flexible front mudguards, if needed.
GUID-2D1C18BC-43E2-4281-BC1E-E939C958ED96

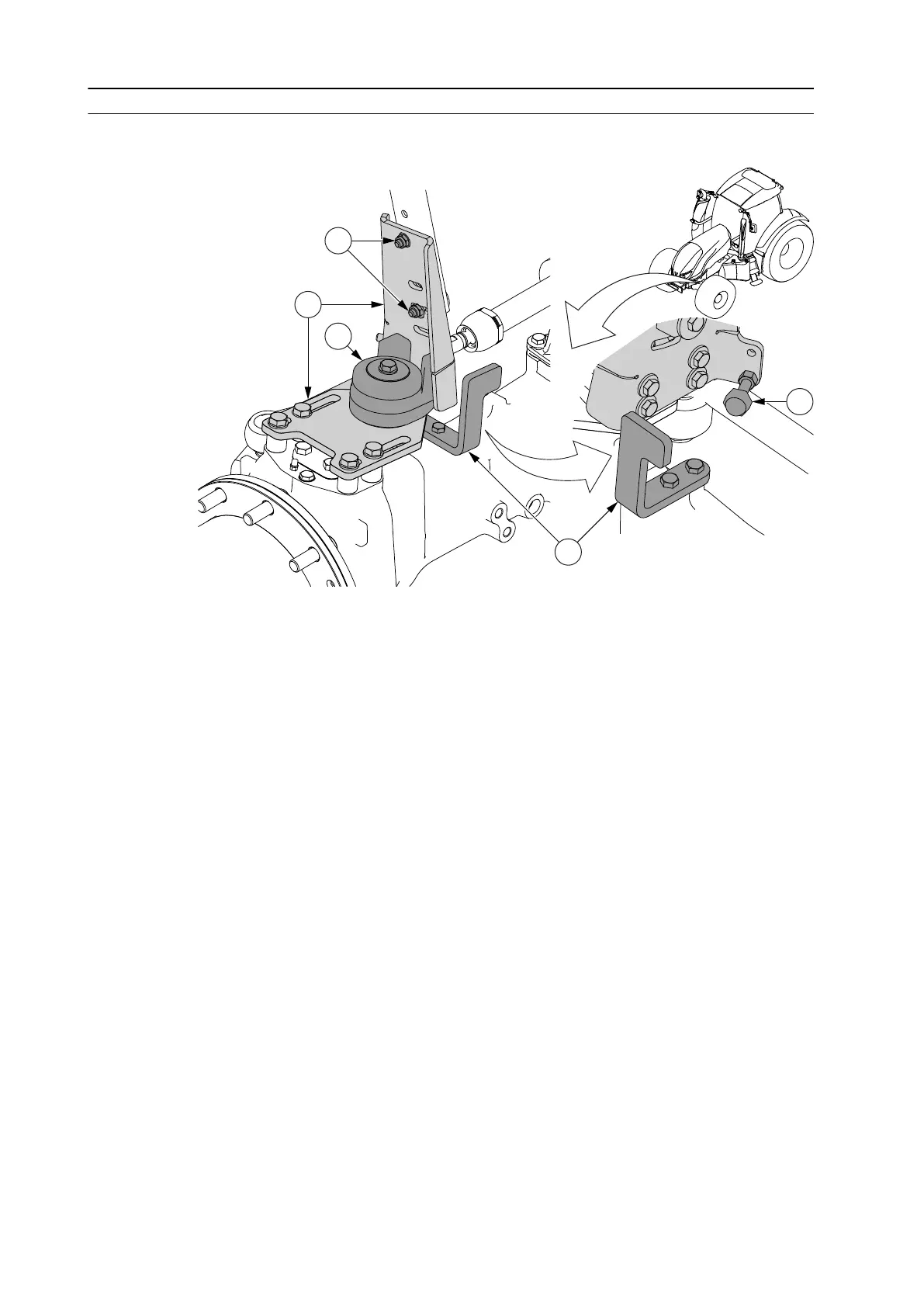

1. Fixing screws
2. Flexible front mudguard frame
3. Turning mechanism
4. Adjustment screw
5. Stopper
The front mudguards are adjusted correctly at the factory. The mudguards can be
turned fully to the side to the service position, which eases the access to the
engine compartment.
On some tractor models the flexible front mudguards with turning limitation are
fitted as standards with a factory-mounted front loader. It is also possible to fit
them afterwards to other models. When turning the wheels, the mudguards turn
less than the wheels and must be flexible in case they come into contact with
something.
• Check the maximum oscillation and turning angles so that the front
mudguards do not come in contact with, for example, the side panel when
you fit tyres.
When this adjustment is not needed fully screw in the adjustment screw.
• Adjust the fixing screw if the tyre touches the mudguard.
• If necessary, limit the turning of the mudguards by adjusting the stoppers.
4. Maintenance
