Tractor symbol
The tractor symbol is shown continuously when the power is on.
Forward/reverse driving direction arrow
The arrow shows which driving direction, forward or reverse, is engaged. The
arrow flashes if the power shuttle has been operated at a driving speed over 10
km/h. The arrow flashes also when the automatic traction control is activated.
Transmission neutral symbol
The neutral (N) symbol flashes when the transmission is in neutral state and
when the automatic traction control is activated.
Parking brake symbol
The parking brake (P) symbol is shown when the parking brake is on. The symbol
flashes when the parking brake is set but not yet engaged.
Preprogrammed Powershift gear symbol
The preprogrammed Powershift gear symbol (1, 2, 3, 4 or 5) is shown next to the
forward/reverse driving direction arrow.
3.11.2.2 Transmission section
GUID-1E979992-2FCC-4712-AC2F-C7371ACB0F55

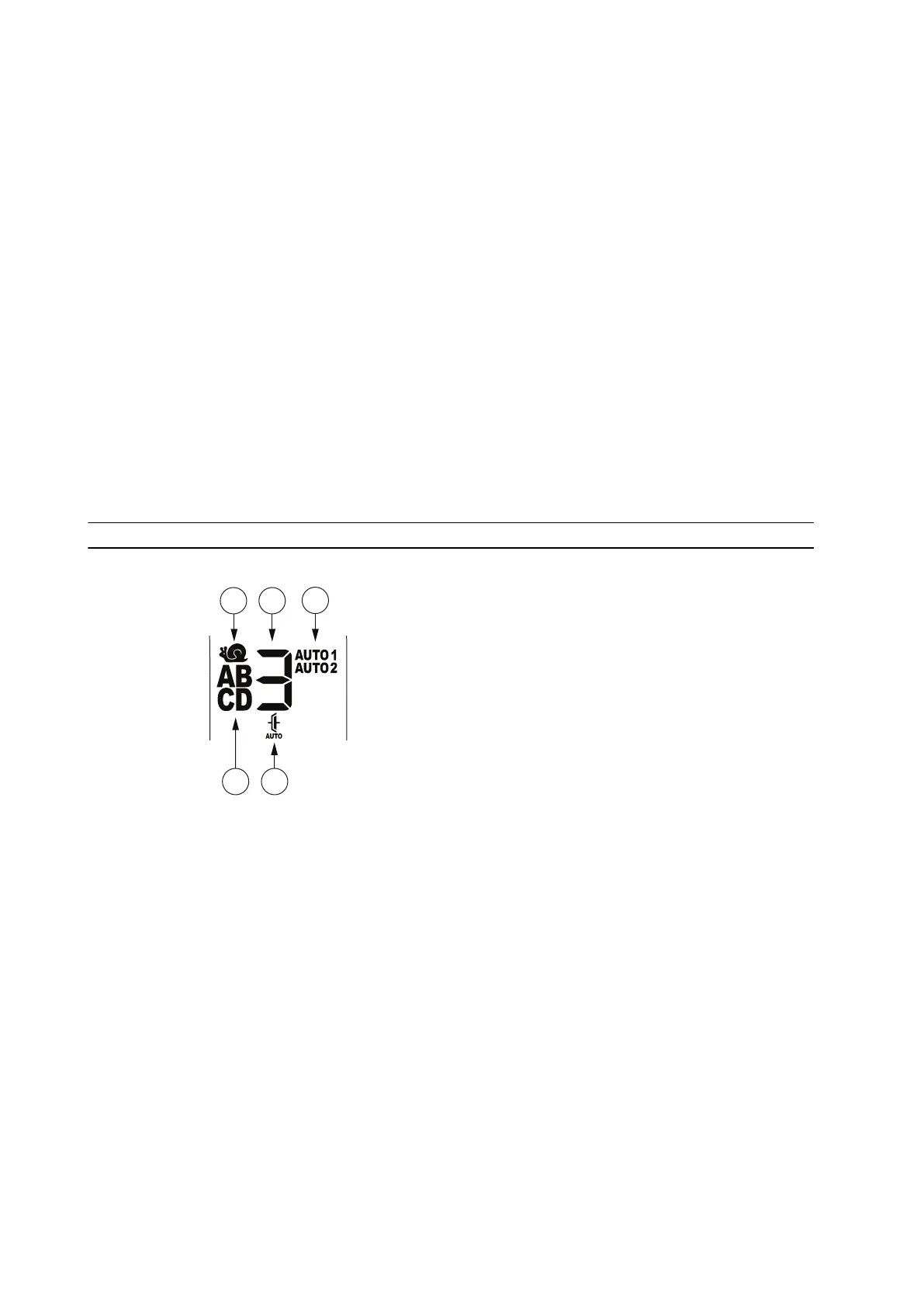

1. Creeper speed range symbol
2. Selected Powershift gear
3. AUTO1 / AUTO2 shifting automatics symbol
4. Speed range symbol
5. Automatic traction control symbol
Creeper speed range symbol
The creeper speed range symbol flashes when the creeper speed range is being
engaged. The symbol is displayed continuously when the creeper speed range is
engaged.
NOTE: The creeper speed ranges do not show on the transmission section
display. When a creeper speed range is engaged, only the speed ranges A or B
are shown on the display.
