When the rear mudguard push buttons are used, the oil flow is limited to 30% of
the selected predefined factory/user settings for auxiliary hydraulics. You cannot
activate any other hydraulic functions at the same time.
GUID-430FC4F0-1DBA-44C2-8E9B-01074D2E6DF1

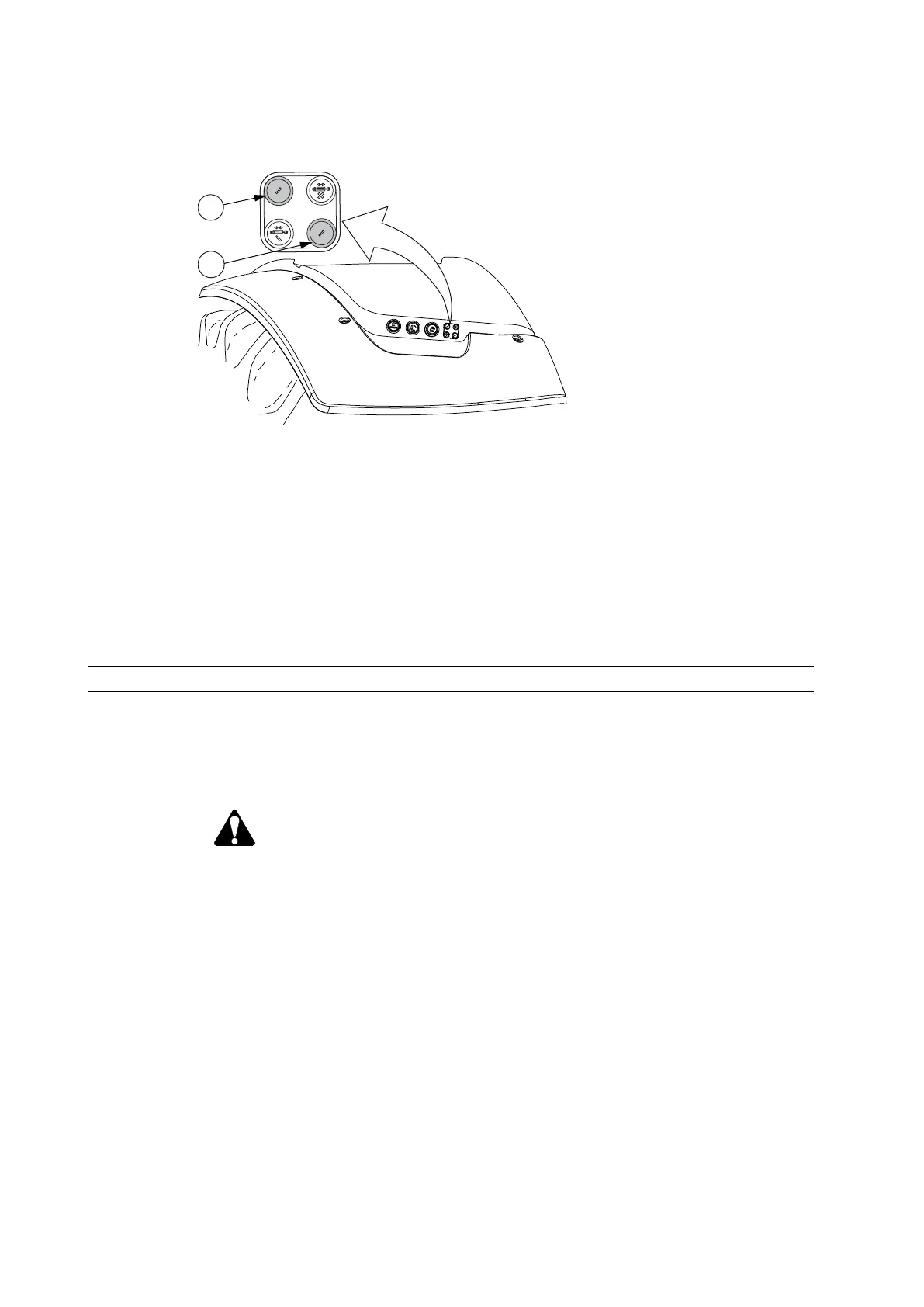

1. Push button (blue) for controlling the + port of the rear valve 1
2. Push button (green) for controlling the – port of the rear valve 1
The order of the push buttons is the same on both the left and right mudguard.
1. Press the left (blue) push button 1 on the rear mudguard to increase the
pressure in the (+) port of the rear valve 1.
2. Press the right (green) button 1 on the rear mudguard to increase the
pressure in the (-) port of the rear valve 1.
3.15.1.8 Using the front linkage shut-off valve
If the front linkage (optional) is connected to the rear valves, the tractor is
equipped with a shut-off valve. With the shut-off valve you can open and close
the oil flow to the front linkage, thus enabling to connect two implements to the
same valve. The shut-off valve is located on top of the rear valves.
WARNING: When the front linkage is connected to the rear valve,
make sure there is no load on the front linkage or rear implement
connected to the same valve. The load on the front linkage or rear
valve implement discharges when the shut-off valve lever is turned.
This may cause the implements to move abruptly.
3. Operation
- 216 -
