2. Lift up the levelling screws and turn them in the required direction to adjust
the length of the lift links.
3. Lower the levelling screws back to the locked position after adjustment.
3.14.3.2 Adjusting hydraulic lift link
The hydraulic lift link is connected to the rear on/off valve 1 or 2.
IMPORTANT: When adjusting the hydraulic lift link, make sure that the implement
does not hit the tractor or ground to avoid damages.
GUID-D721C290-0FFA-41CD-A739-E5CE7B089D20

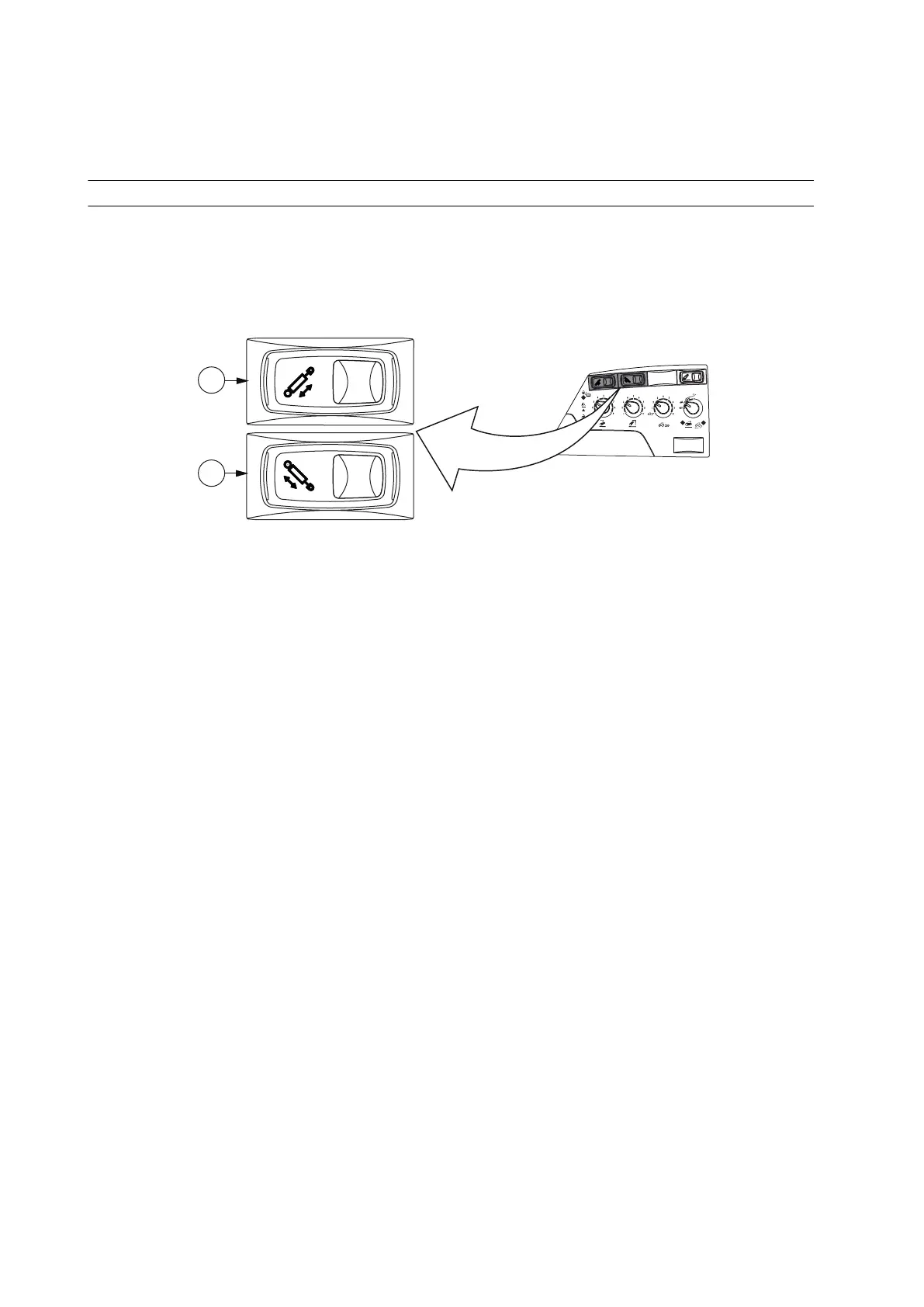

1. Switch for rear on/off valve 1
2. Switch for rear on/off valve 2 (optional)
1. Move the linkage to the position where the lift links are free of load.
2. Lift the hydraulic lift link up by pressing the side opposite to the symbol of the
switch for rear on/off valve 1 or 2.
3. Lower the hydraulic lift link down by pressing the symbol side of the switch
for rear on/off valve 1 or 2.
3. Operation
- 202 -
