7. Press the symbol side of the on/off valve switch 2 to retract the towing
device.
The hydraulic extension locks, and you can hear a click when the hitch
latches in longitudinal direction.
8. Ensure that the towing device extension is locked.
• Press the side opposite to the symbol on the on/off valve switch 2.
Ensure that the hydraulic extension does not extend.
• Press the symbol side of the on/off valve switch 2.
9. Ensure that the towing device is fully locked.
The towing device is fully locked when the following conditions are fulfilled
simultaneously:
• The towing device is in the upmost position and supported by the latch.
• The locking position of the pick-up hitch in longitudinal direction has been
checked by attempting to move the extension back and forth.
10. Check the linkage position.
IMPORTANT: Adjust the linkage so that it does not hit the towed device or
power take-off shaft at any circumstance.
3.23.5 Changing the pick-up hitch implement
3.23.5.1 Changing the Euro pick-up hitch implement
You can change the Euro pick-up hitch implement. When the tow hook or
drawbar is not in use, you can fasten it to the bracket on the rear side.

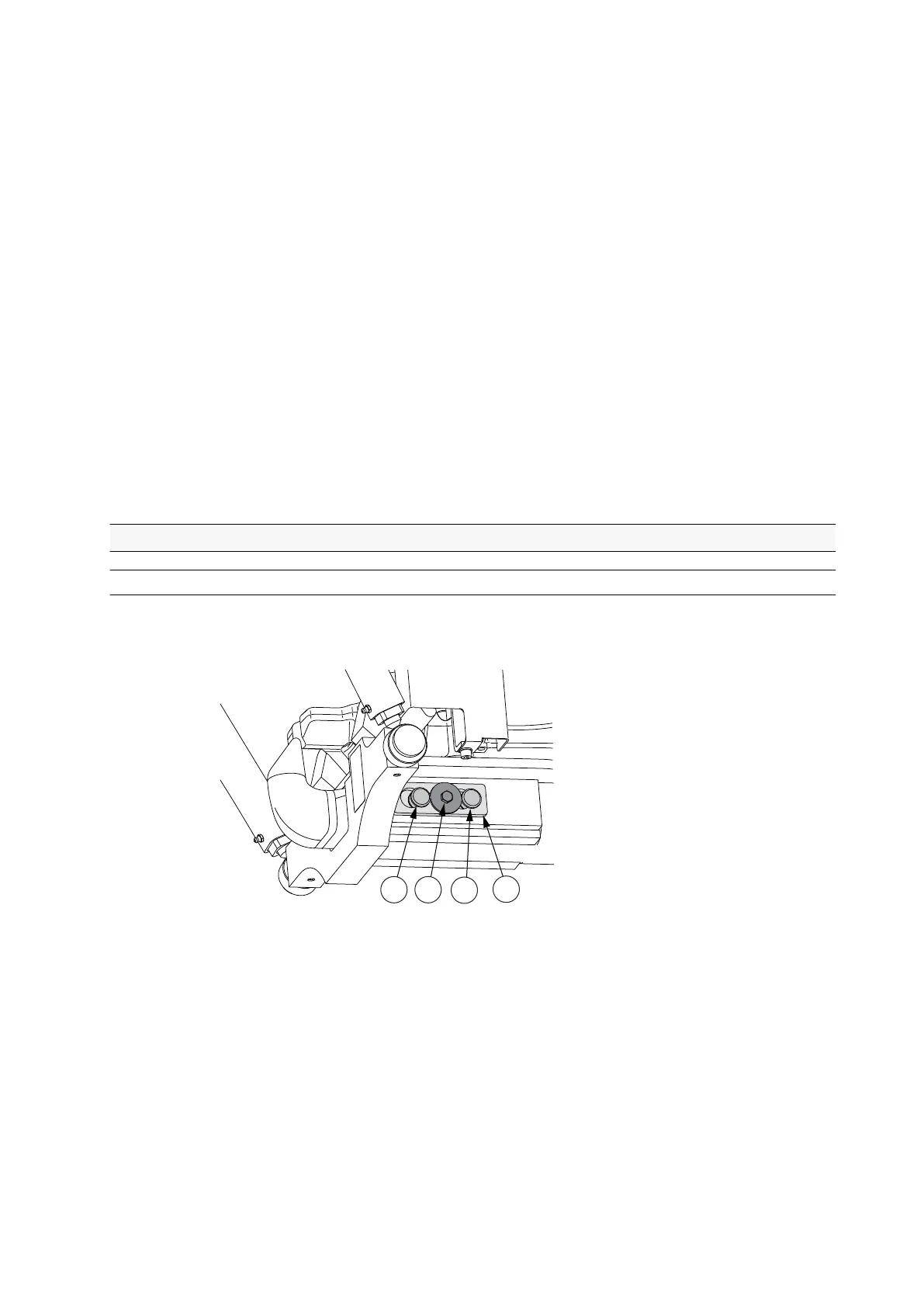

GUID-7A2CAC17-5E58-4744-91D1-2B502FCE1387
1. Locking pins
2. Screw and washer
3. Locking plate
1. Ensure that the pick-up hitch is in the locking position.
Lift to the locking position if not.
2. Remove the screw and washer.
3. Push the locking plate forward and pull to the side to remove it.
3. Operation
- 281 -
