3.23.4.3 Extending the Hydraulic pick-up hitch
When the frame of the towing device is lowered, you can extend it hydraulically
backwards to make it easier to attach the tow hook/drawbar/Ø80mm ball hitch to
the drawbar eye. The cylinder of the hydraulic extension is connected
permanently to the rear on/off valve 2.

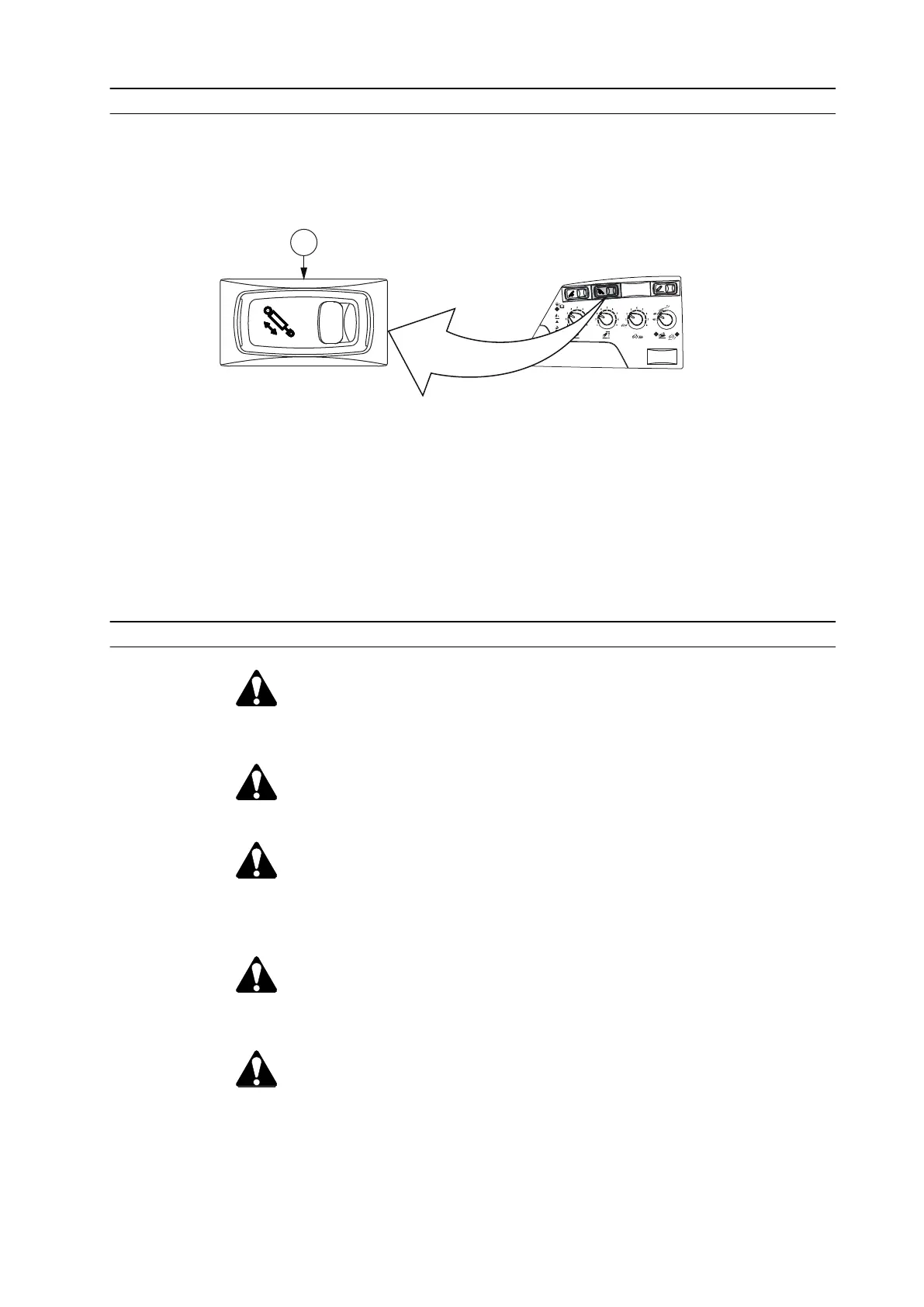

GUID-2AFED1CB-6602-4A18-A9B2-6048E4145587
1. Switch for rear on/off valve 2
1. Extend the towing device.
Press down the side opposite to the symbol of the switch for rear on/off valve
2.
2. Retract the towing device.
Press down the symbol side of the switch for rear on/off valve 2.
3.23.4.4 Latching the Hydraulic pick-up hitch
DANGER: Make sure that at least 20% of the total combination weight
rests on the front wheels. When needed, use a sufficient number of
front ballast weights.
WARNING: When attaching any implements, check that the drawbar
eye engages the trailer hook correctly.
WARNING: When attaching a trailer or implement, do not exceed the
maximum weight of the rear axle or the maximum load of the tyre type.
See the technical specifications in this manual for the maximum
permissible weights and loads
WARNING: Make sure that the maximum permissible towable mass is
not exceeded. Check the tractor identification plate for permissible
towable mass. Follow valid laws and regulations.
WARNING: Attach trailed single-axle vehicles to the pick-up hitch.
When driving with a trailer with the tractor tilted to either side on a
slope, the drawbar eye must be of the rotating type to prevent
breakage.
3. Operation
- 279 -
