3.23.7.4 Attaching to fixed Piton fix/fixed Ø80mm ball hitch
You can attach a trailer to the fixed Piton fix or fixed K80 jaw.
GUID-6CF63507-FC10-4463-8528-E15C949220FC

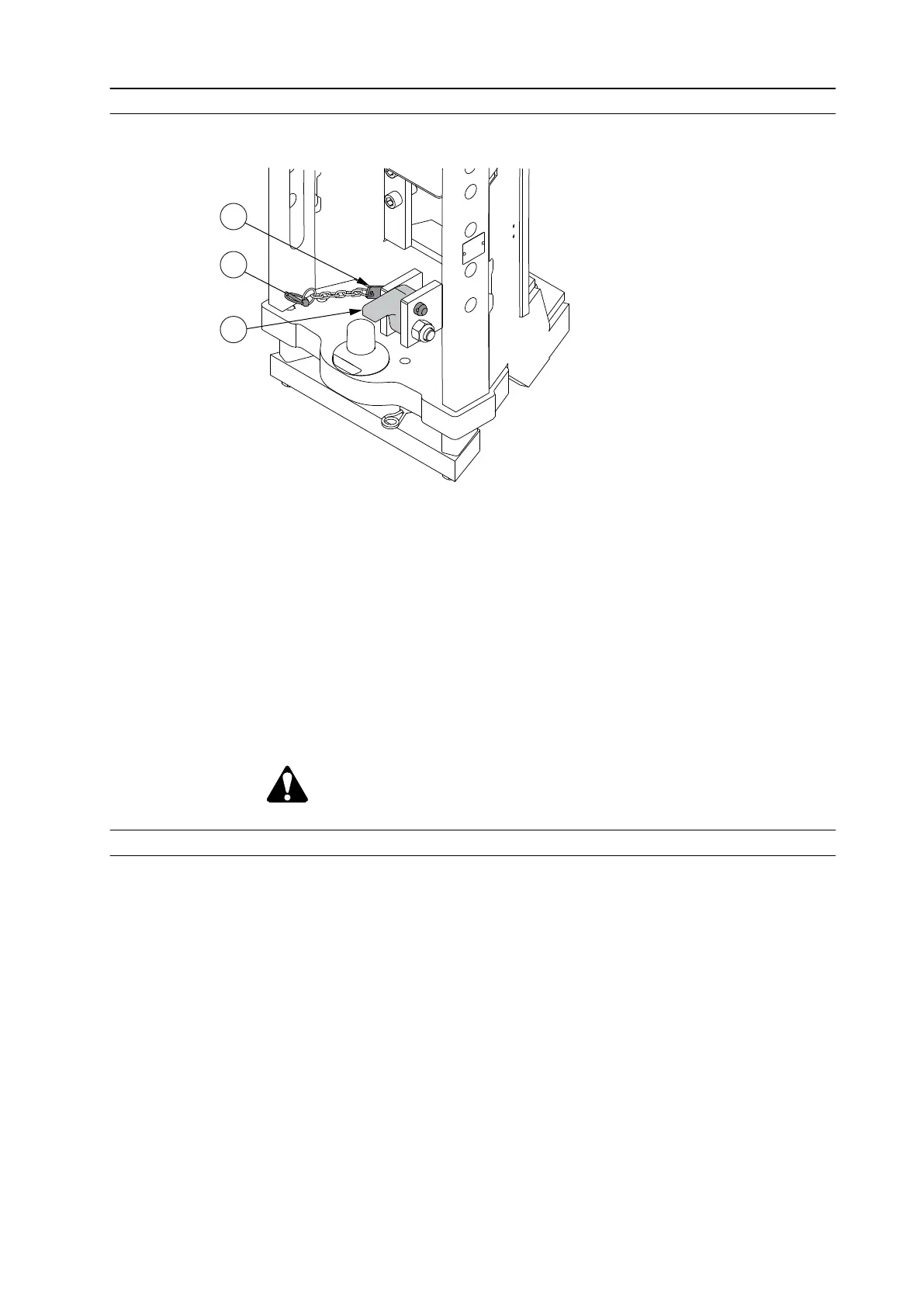

1. Pin
2. Locking pin
3. Locking
1. Remove the locking pin.
2. Pull the pin off and open the locking.
3. Attach the trailer to the jaw.
4. Close the locking and fit the pin.
5. Fit the locking pin.
WARNING: Make sure that the locking pin is fitted correctly.
3.23.7.5 Attaching to the automatic jaw
You can attach a trailer to the automatic jaw using the opening and locking
levers.
Use a solid drawbar because of the rotating jaw.
IMPORTANT: Use only drawbar eyes which comply with the regulations and are
undamaged. When using other than allowed drawbar eyes, the warranty lapses
and the responsibility of the manufacturer is no longer valid.
