3.16 Front linkage
3.16.1 Using the front linkage
IMPORTANT: You have to detach the front loader before using the front linkage.
GUID-45C5AFF8-081D-48E5-AF43-B71AAFC182D9

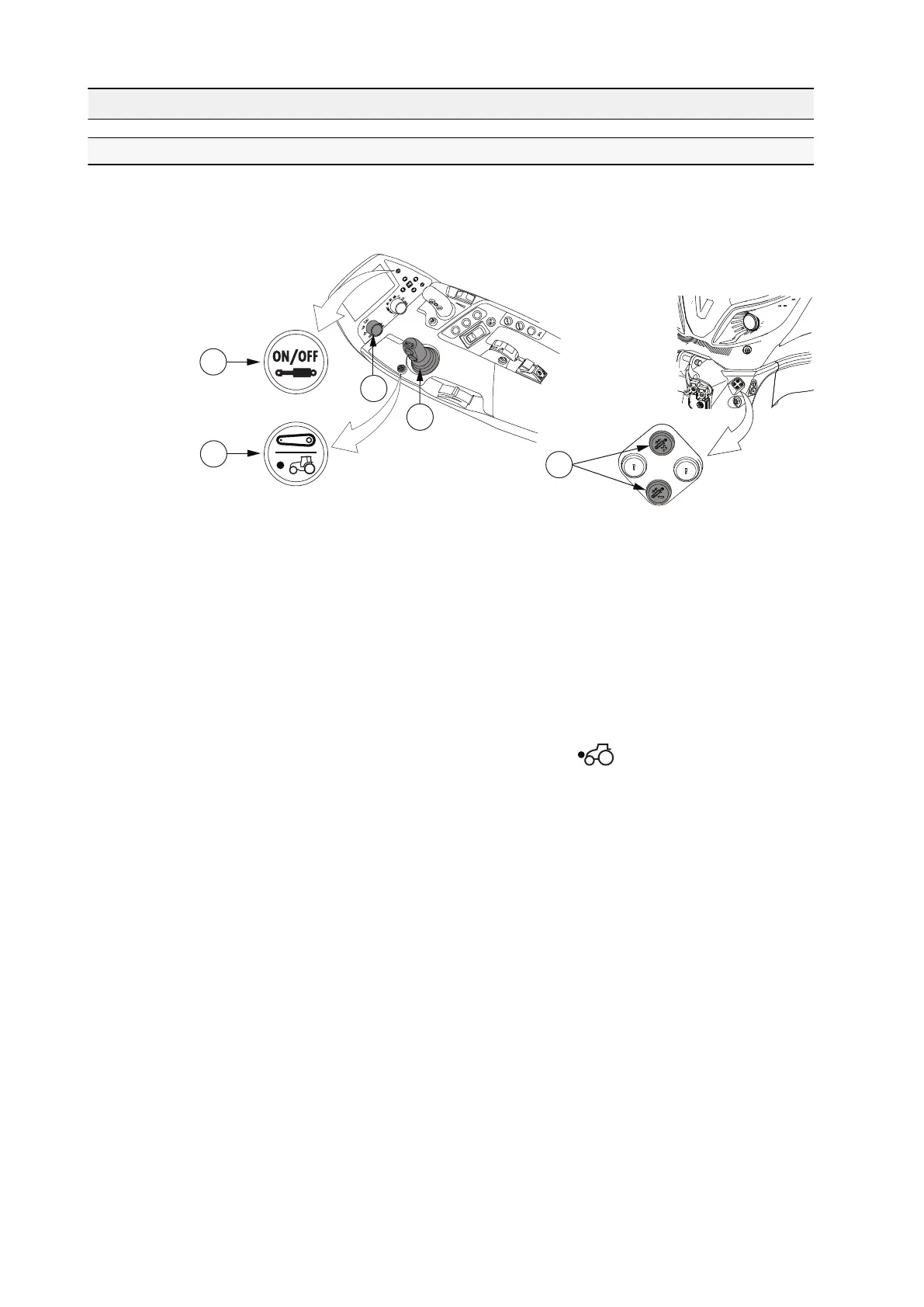

1. Auxiliary hydraulics on/off push button
2. Changeover button for front linkage/front loader (optional)
3. Joystick functions selector
4. Joystick
5. Lifting/lowering push buttons on the bonnet
• Activate the front hydraulics by pressing the on/off push button.
The on/off symbol on the push button is lit green.
• Turn the joystick functions selector to position
.
• If the tractor is equipped with a changeover push button for front linkage/front
loader, press the button. The push button light is lit.
• To raise the front linkage, pull the joystick rearwards or press the lifting push
button on the bonnet.
• To lower the front linkage, push the joystick forwards or press the lowering
push button on the bonnet.
• If the implement follows the ground, use the floating position.
• Activate the floating position from the tractor terminal.
• Set the valve to the floating position by briefly (less than one second)
pushing the joystick into the extreme forward position.
Pushing the joystick continuously forward activates the floating position
until you release the joystick.
• To deactivate the floating position, push the joystick slightly forward or
backward.
IMPORTANT: Always use the floating position for implements following the
ground contour. Otherwise there is a risk that the implement may get
damaged or the traction of the wheels may be lost.
3. Operation
- 226 -
