3. To interrupt a timed position locking before the timer runs out:
• Move the joystick to the position in question.
• Release the control lever to the middle position.
WARNING: To avoid serious injury or death due to falling loads
resulting from inadvertent raising or roll-back of the loader, do not
connect loader hydraulics to any tractor auxiliary valve that has
detents which cannot be locked out or removed, except for the
float function in the loader lowering circuit. If the tractor is
equipped with such a valve, a dedicated, properly configured
loader valve must be installed.

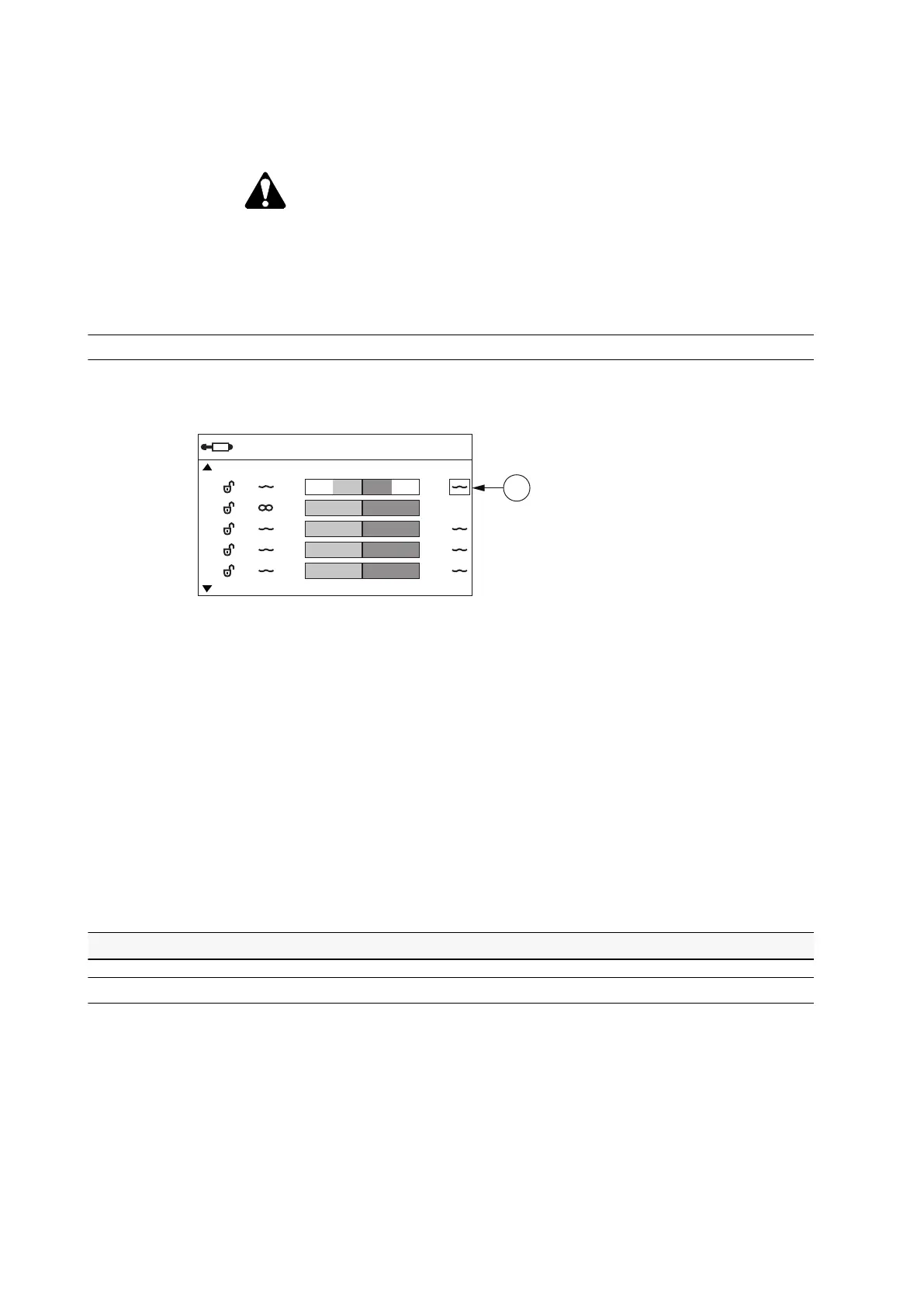

3.15.2.5 Activating and deactivating the floating position
You can activate and deactivate the floating position, or you can also interrupt the
timed floating position before the timer runs out.
% %
-
+
100 1002
1 50 50
100 1004
100 100F1
100 1003
GUID-6C8629E9-495D-455C-8064-AEB14CF1D180
1. Floating position
When the valve port has the floating position activated, the oil circulates freely
and the implement follows the ground contours.
1. Set the floating position for the preferred valve port in the armrest display.
2. Activate the floating position either with joystick or the control lever.
• Push the joystick quickly to the extreme position in question.
• Turn the control lever to the extreme position in question. The control
lever stays in the extreme position.
3. To interrupt the floating position function before the timer runs out:
• Move the joystick to the position in question.
• Release the control lever to the middle position.
3.15.3 Connecting to the valves
3.15.3.1 Using quick couplings
1. Ensure that the auxiliary hydraulics is activated.
3. Operation
- 222 -
