ABB ACS560 User Manual

Control macros 143
Pharma macro
The various machines used in the pharmaceutical industry, e.g. Agitators, mixers,
centrifuges, etc. are driven by motors which are controlled by drives. You can use the
Pharma macro to automatically configure the basic drive parameters required to
control these machines.The following settings are configured automatically with this
macro:
• Start, stop, and multiple constant speed selections
• Ramp time
• Motor control
• Relay output
• Analog output

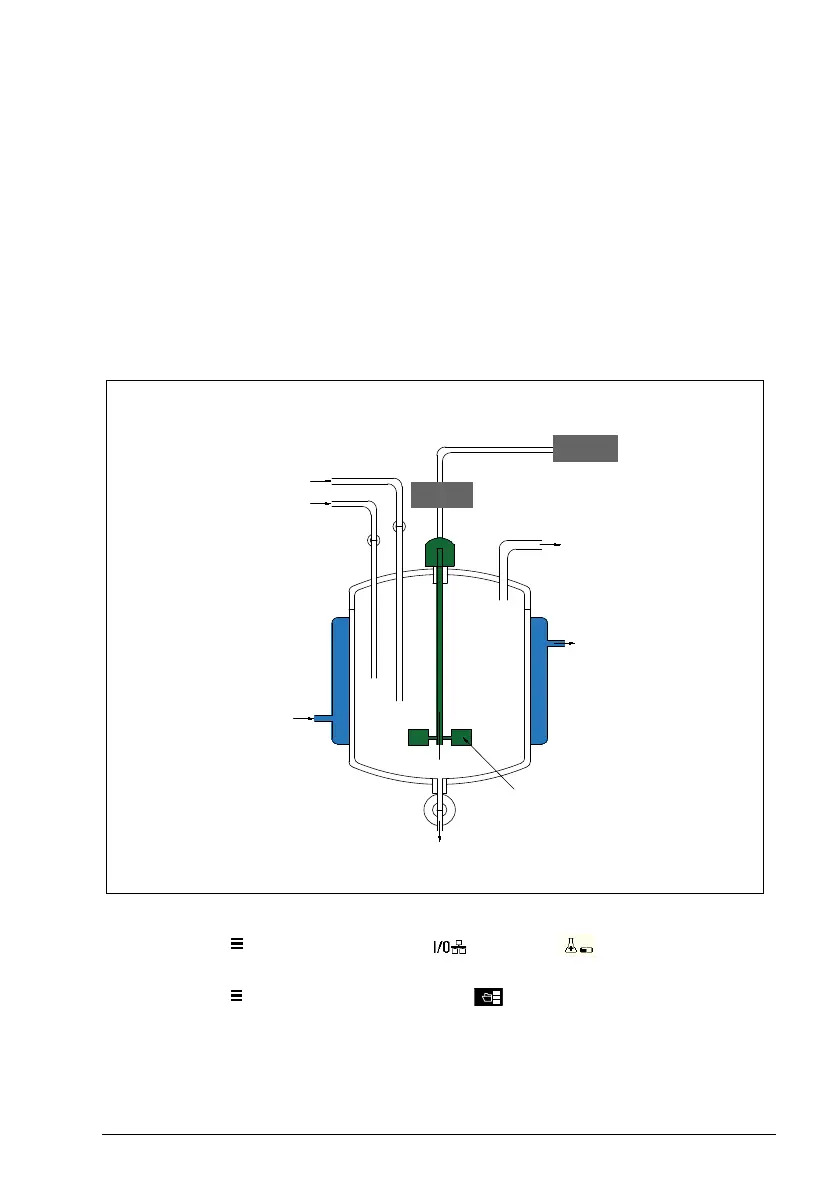

The below figure explains how a drive is connected to a motor in a reactor.
To enable the Pharma macro, navigate to

• Main menu  Connection macro  Pharma
or
• Main menu
 Complete parameter list parameter 96.04 Macro select 
[19] Pharma Application.
Reactant 2
Reactant 1
to vent
system
Stirrer
Coolant
Product
outlet
Motor
Drive

ABB ACS560 Specifications

General

Frequency	50/60 Hz
Control Method	Scalar control
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit
Communication Interfaces	Modbus RTU, Profibus DP, CANopen, Ethernet/IP
Enclosure Rating	IP21
Ambient Temperature	-10 to +50 °C
Input Voltage	380 to 480 V AC
Cooling Method	Air cooling (natural convection or forced ventilation)
