ABB ACS560 User Manual

Parameters 217
Enable Force auto restart enabled. Parameter 21.18 Auto restart time
is ignored. The drive never trips on the undervoltage fault and
the start signal is on forever. When he DC voltage is restored,
the normal operation continues.
1
22
22 Speed reference
selection
Speed reference selection; motor potentiometer settings.
See the control chain diagrams on pages 487…489.
22.01 Speed ref unlimited Displays the output of the speed reference selection block.
See the control chain diagram on page 489.
This parameter is read-only.
-
-30000.00…
30000.00 rpm
Value of the selected speed reference. See par.
46.01

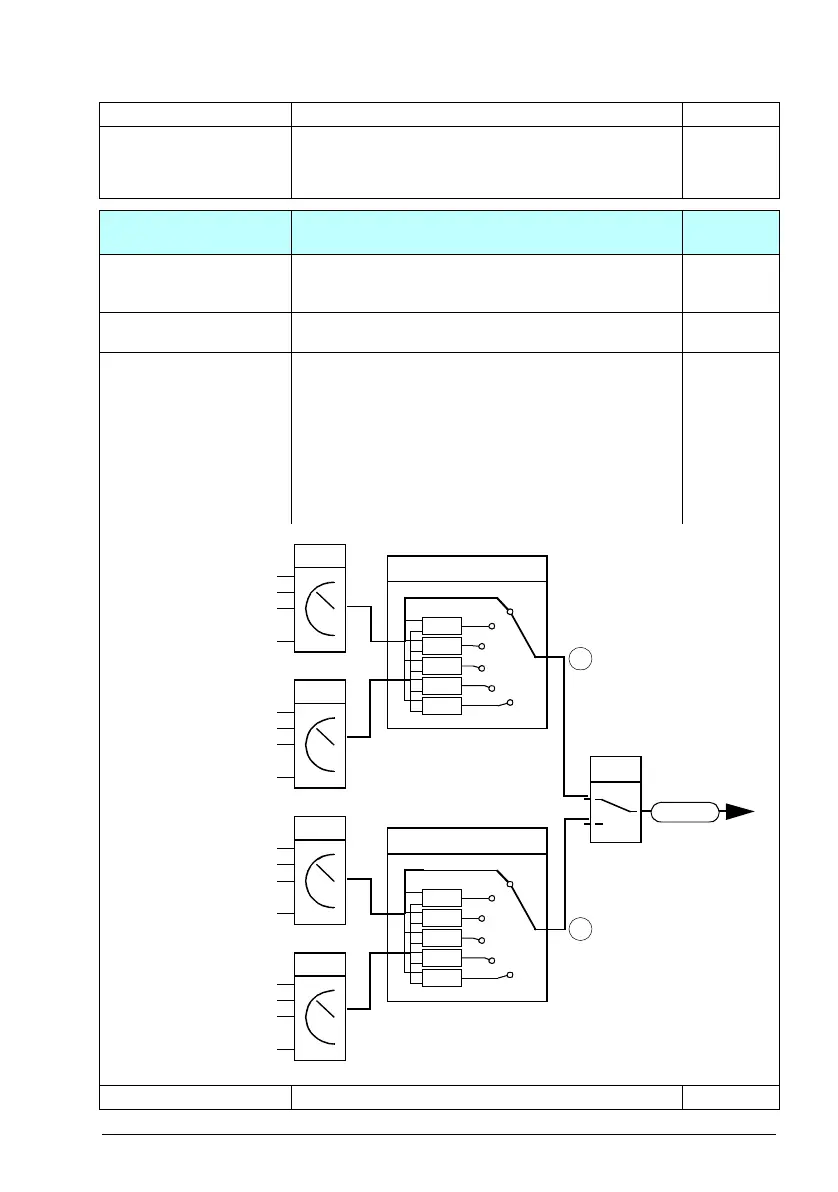

22.11 Ext1 speed ref1 Selects Ext1 speed reference source 1.
Two signal sources can be defined by this parameter and
22.12 Ext1 speed ref2. A mathematical function (22.13 Ext1
speed function) applied to the two signals creates an Ext1
reference (A in the figure below).
A digital source selected by 19.11 Ext1/Ext2 selection can be
used to switch between Ext1 reference and the
corresponding Ext2 reference defined by parameters 22.18
Ext2 speed ref1, 22.19 Ext2 speed ref2 and 22.20 Ext2
speed function (B in the figure below).
AI1 scaled
Zero None. 0
No. Name/Value Description Def/FbEq16
19.11
1
0
22.13
MUL
SUB
ADD
MIN
MAX
22.11
22.12
22.86
0
AI
FB
…
Other
…
0
AI
FB
…
Other
…
Ref1
22.20
MUL
SUB
ADD
MIN
MAX
22.18
22.19
0
AI
FB
…
Other
…
0
AI
FB
…
Other
…
Ref1
A
B
Ext1
Ext2

ABB ACS560 Specifications

General

Frequency	50/60 Hz
Control Method	Scalar control
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit
Communication Interfaces	Modbus RTU, Profibus DP, CANopen, Ethernet/IP
Enclosure Rating	IP21
Ambient Temperature	-10 to +50 °C
Input Voltage	380 to 480 V AC
Cooling Method	Air cooling (natural convection or forced ventilation)
