Parameters 187
0b0000...0b1111 RO
/DIO
control word. 1 = 1
10.101 RO1 toggle counter Displays the number of times relay output RO1 has changed
states.
0
0…4294967000 State change count. 1 = 1
10.102 RO2 toggle counter Displays the number of times relay output RO2 has changed
states.
0
0…4294967000 State change count. 1 = 1
10.103 RO3 toggle counter Displays the number of times relay output RO3 has changed
states.
0
0…4294967000 State change count. 1 = 1
11
11 Standard DIO, FI, FO
Configuration of the frequency input.
11.21 DI5 configuration Selects how digital input 5 is used. Digital input
Digital input DI5 is used as a digital input. 0
Frequency input DI5 is used as a frequency input. 1
11.38 Freq in 1 actual
value
Displays the value of frequency input 1 (via DI6DI5 when it is
used as a frequency input) before scaling. See parameter
11.42 Freq in 1 min.
This parameter is read-only.
0
0 … 16000 Hz Unscaled value of frequency input 1. 1 = 1 Hz
11.39 Freq in 1 scaled
value
Displays the value of frequency input 1 (via DI5 or DI6 when it
is used as a frequency input) after scaling. See parameter
11.42 Freq in 1 min.
This parameter is read-only.
0
-32768.000…
32767.000
Scaled value of frequency input 1 (DI5 or DI6). 1 = 1
11.42 Freq in 1 min Defines the minimum for the frequency actually arriving at
frequency input 1 (DI5 or DI6 when it is used as a frequency
input).

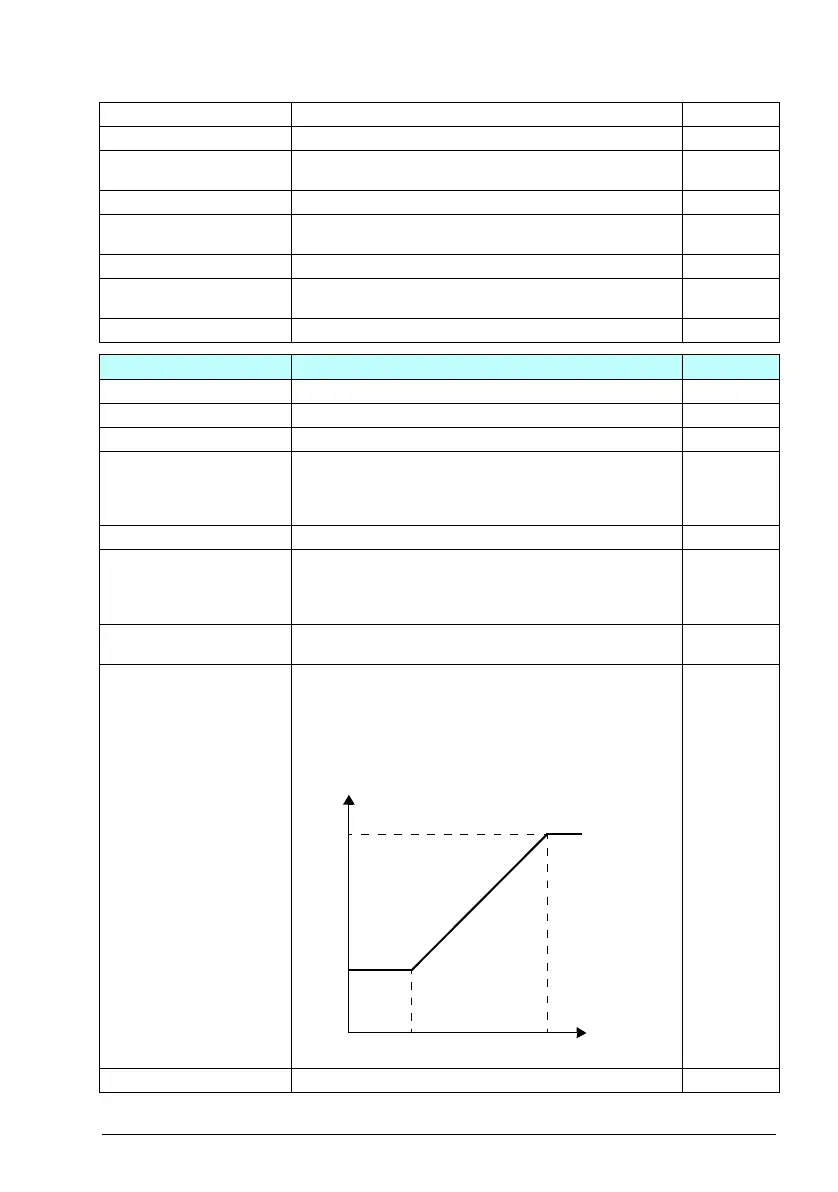

The incoming frequency signal (11. 38 Freq in 1 actual value)
is scaled into an internal signal (11.39 Freq in 1 scaled value)
by parameters 11.42 …11.45 as follows:
0 Hz
0 … 16000 Hz Minimum frequency of frequency input 1 (DI5 or DI6). 1 = 1 Hz
No. Name/Value Description Def/FbEq16
11.43
11.4 5
11.4 2
11. 39
f
in
(11.38)
11.4 4
