ABB ACS560 User Manual

488 Control chain diagrams

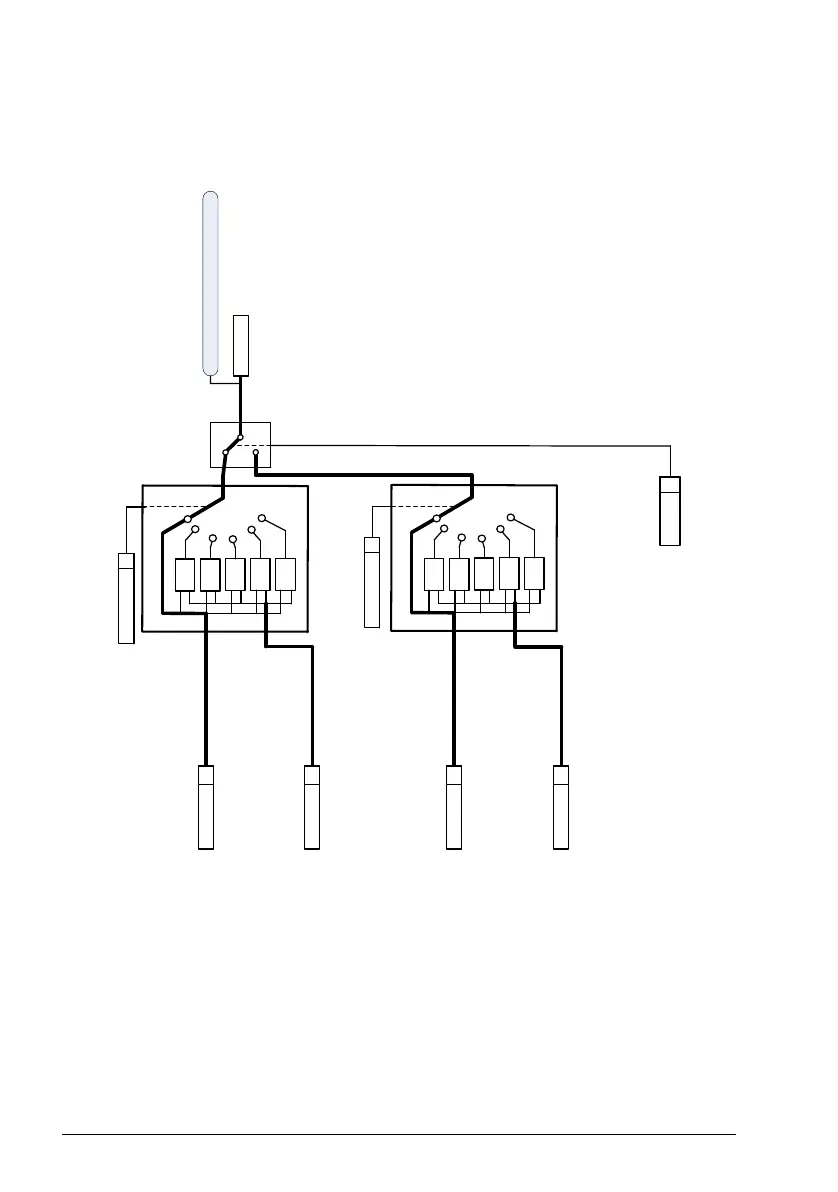

Speed reference source selection I
22.11 Ext1 speed ref1
19.11 Ext1/Ext2 selection
22.13 Ext1 speed function
Selection
>
22.86 Speed reference act 6
Value
22.12 Ext1 speed ref2
Selection
>
22.18 Ext2 speed ref1
22.20 Ext2 speed function
Selection
>
22.19 Ext2 speed ref2
MUL
ADD
SUB
MIN
MAX
Selection
>
Selection
>
Selection
>
Selection
>
MUL
ADD
SUB
MIN
MAX

ABB ACS560 Specifications

General

Frequency	50/60 Hz
Control Method	Scalar control
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit
Communication Interfaces	Modbus RTU, Profibus DP, CANopen, Ethernet/IP
Enclosure Rating	IP21
Ambient Temperature	-10 to +50 °C
Input Voltage	380 to 480 V AC
Cooling Method	Air cooling (natural convection or forced ventilation)
