Fieldbus control through the embedded fieldbus interface (EFB) 443
Basics of the embedded fieldbus interface
The cyclic communication between a fieldbus system and the drive consists of 16-bit
data words or 32-bit data words (with a transparent control profile).

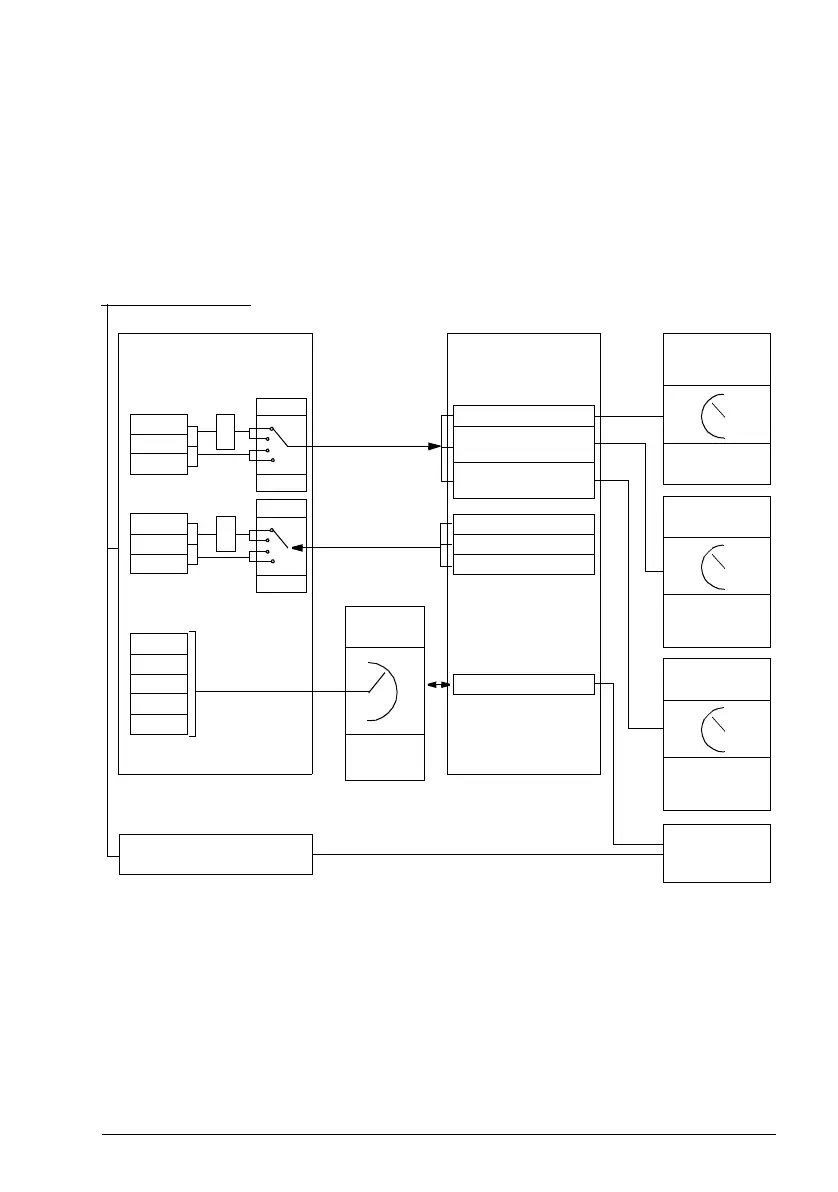

The diagram below illustrates the operation of the embedded fieldbus interface. The
signals transferred in the cyclic communication are explained further below the
diagram.
CW
REF1
REF2
SW
ACT1
ACT2
I/O 1
I/O 2
I/O 3
…
I/O 69
EFB CW
03.09 EFB reference
1
03.10 EFB reference
2
EFB SW
Actual 1
Actual 2
Par. 01.01…255.255
1. See also other parameters which can be controlled through fieldbus.
2. Data conversion if parameter 58.25 Control profile is set to ABB Drives. See section About the control
profiles (page 446).
1)
Fieldbus network
Data I/O
selection
EXT1/2
Start commands
Reference
selection
Groups
22/28/40 etc.
Cyclic communication
Acyclic communication
58.25
SEL
2)
Parameter
table
0
1
2
3
58.25
SEL
0
1
2
3
2)
EFB profile
Reference
selection
Groups
22/28/40 etc.
58.101
…
58.114
20.01
20.06

ABB ACS560 Specifications

General

Frequency	50/60 Hz
Control Method	Scalar control
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit
Communication Interfaces	Modbus RTU, Profibus DP, CANopen, Ethernet/IP
Enclosure Rating	IP21
Ambient Temperature	-10 to +50 °C
Input Voltage	380 to 480 V AC
Cooling Method	Air cooling (natural convection or forced ventilation)
