ABB ACS560 User Manual

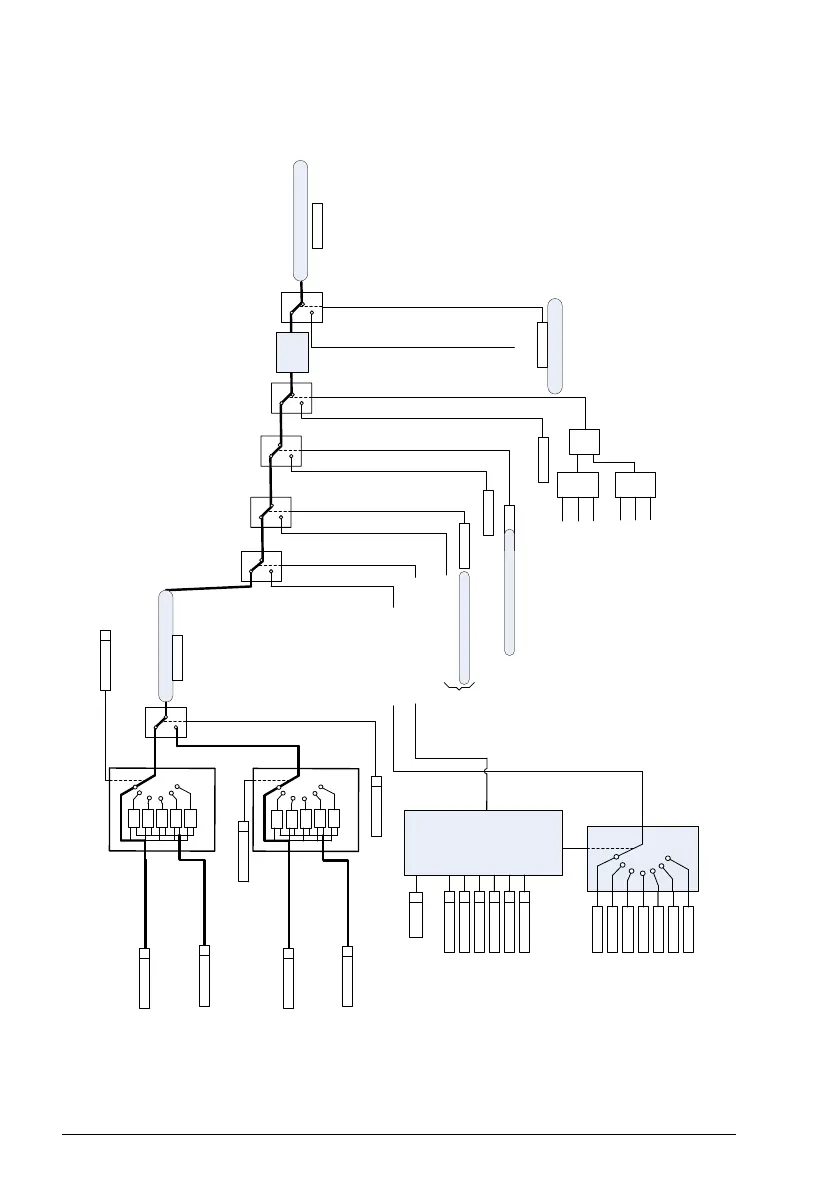

486 Control chain diagrams
Frequency reference selection
28.41 Frequency ref safe
Frequency reference safe command
Network reference
03.01 Panel reference
28.96 Frequency ref act 7
28.92 Frequency ref act 3
Value
Fieldbus: ODVA CIP™
Value
Selection
>
28.11 Ext1 frequency ref1
28.12 Ext1 frequency ref2
19.11 Ext1/Ext2 selection
Selection
>
AND AND
OR
Panel comm loss active
Panel as local control device
Fieldbus comm loss active
Control from Fieldbus active
49.05 Communication loss action = Speed ref safe
50.02 FBA A comm loss func = Speed ref safe
Selection
>
Value
Value
28.13 Ext1 frequency function
Selection
>
MUL
ADD
SUB
MIN
MAX
Selection
>
28.15 Ext2 frequency ref1
Selection
>
28.17 Ext2 frequency function
Selection
>
MUL
ADD
SUB
MIN
MAX
28.16 Ext2 frequency ref2
6.16 bit 9 Network control
Value
Value
06.16 bit 8 Local control
Constant frequency command
Constant frequency ref
28.22 Constant frequency sel1 28.23 Constant frequency sel2 28.24 Constant frequency sel3
28.26 Constant frequency 1 28.32 Constant frequency 7 28.31 Constant frequency 6 28.29 Constant frequency 4 28.27 Constant frequency 2 28.30 Constant frequency 5 28.28 Constant frequency 3
Selection
>
28.21 Const frequency function
Value Value Value Value Value Value
Selection
>
Selection
>
Selection
>
Value
CONSTANT
FREQUENCY
SELECTION
0
Direction
Lock
Value
70.1 bit 1 Override Active
Override reference
28.25 Constant frequency sel4 28.46 Constant frequency sel5 28.47 Constant frequency sel6
Selection
>
Selection
>
Selection
>
