ABB ACS560 User Manual

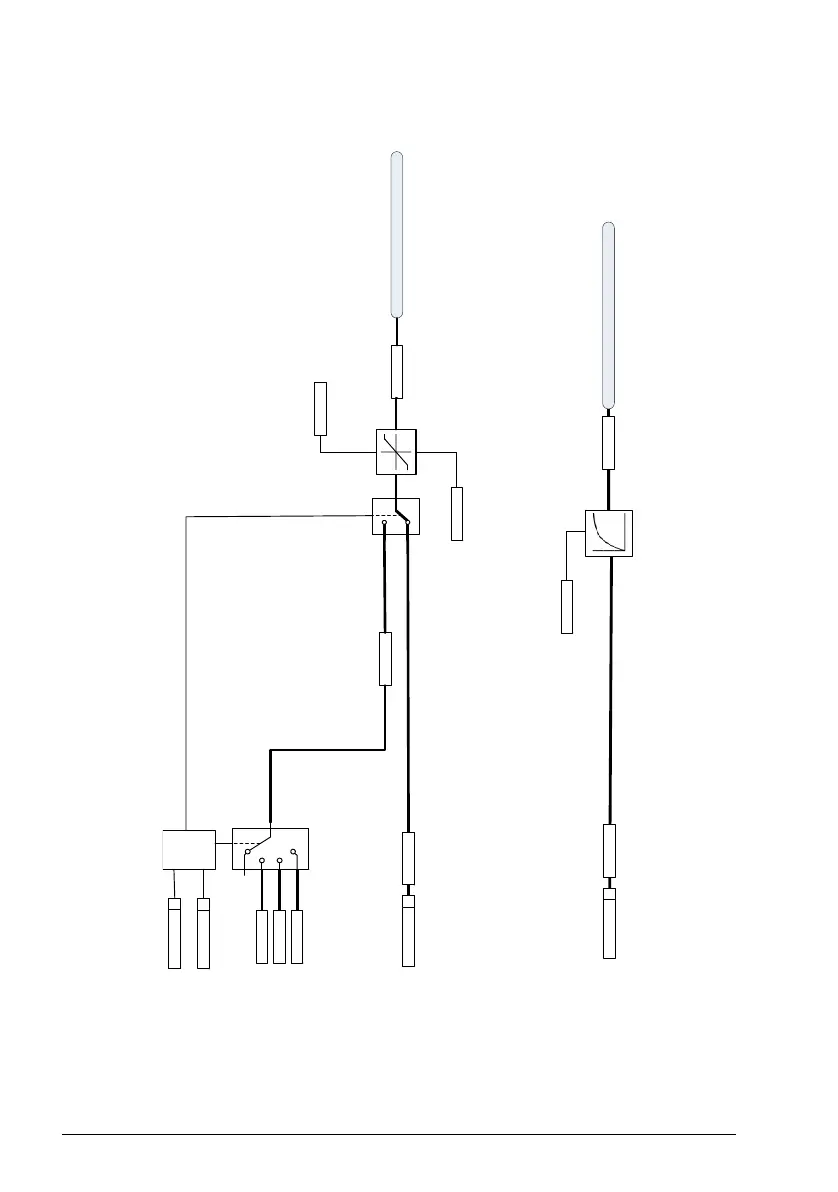

500 Control chain diagrams
External PID controller
71.26 Setpoint min
71.27 Setpoint max
71.11 Feedback filter time
Value
71.16 Setpoint 1 source
71.21 Internal setpoint 1 71.22 Internal setpoint 2 71.23 Internal setpoint 3
Selection
>
Value
Value
Value
71.08 Feedback 1 source
Selection
>
71.02 Feedback act value
Value
Value
71.03 Setpoint act value
Value Value Value
Value
71.62 PID internal setpoint actual
Value
71.19 Internal setpoint sel1 71.20 Internal setpoint sel2
BIN TO INT SEL
b0
b1
0
Selection
>
Selection
>
OUT
0
1
2
3
0

ABB ACS560 Specifications

General

Frequency	50/60 Hz
Control Method	Scalar control
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit
Communication Interfaces	Modbus RTU, Profibus DP, CANopen, Ethernet/IP
Enclosure Rating	IP21
Ambient Temperature	-10 to +50 °C
Input Voltage	380 to 480 V AC
Cooling Method	Air cooling (natural convection or forced ventilation)
