Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 115

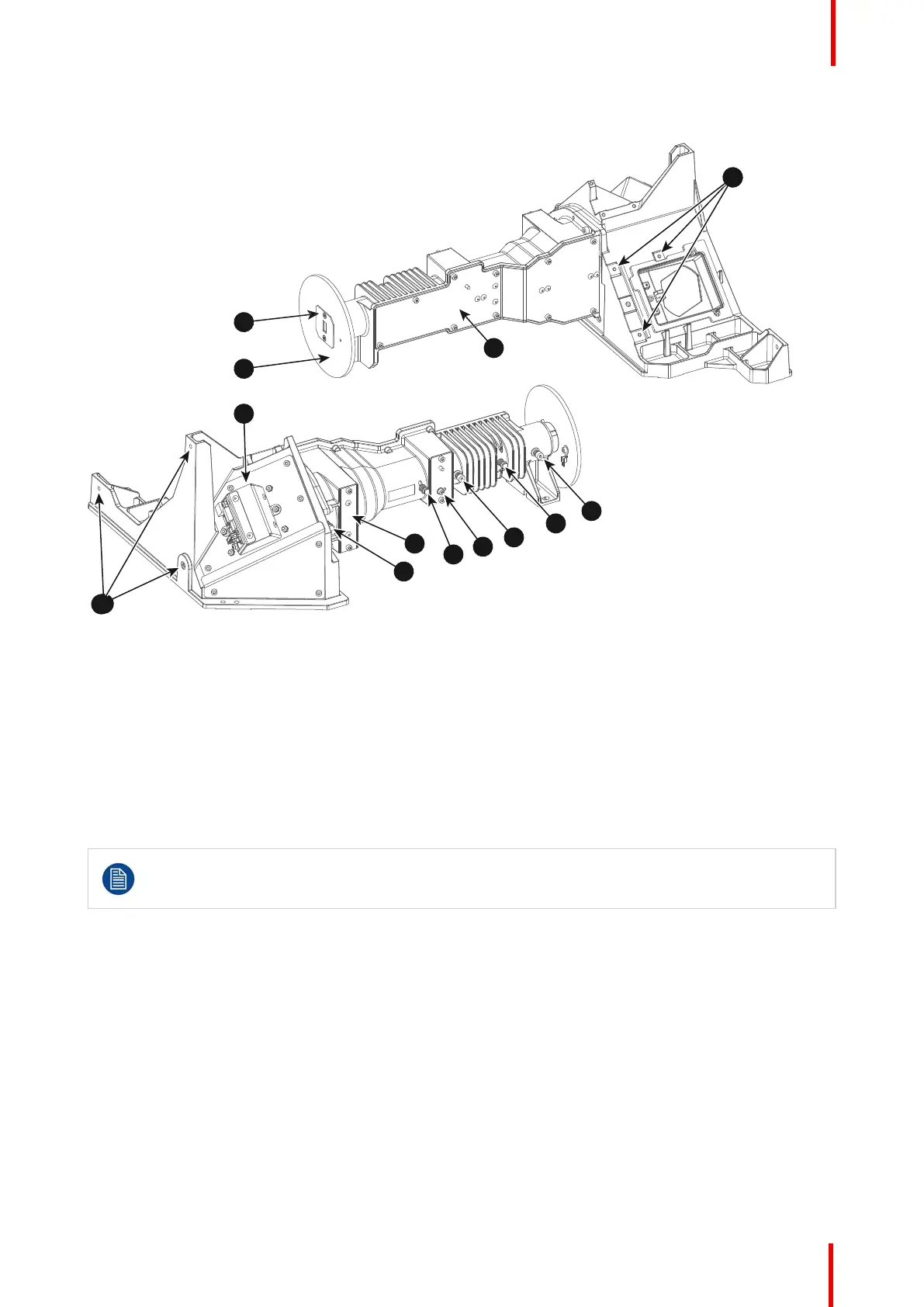

Light Pipe and Corner Block parts
2
5
1
6
7
8
9
10
12
11
3
4
13
Image 10-2
1 Mask plate.
2 Heatsink (Rod entrance).
3 Cover plate of Light Pipe.
4 Fixation points for Light Processor.
5 Light sensor module.
6 Integration Rod fixation screw.
7 Integration Rod rotation adjustment screw.
8 Integration Rod fixation screw.
9 Notch Filter adjustment screw.
10 Light Pipe focus adjustment screw.
11 High contrast plate.
12 Light Pipe zoom adjustment screw.
13 Fixation points for Lens Holder.
10.2 Removal of the Light Pipe
To remove the Light Pipe from the corner block the left side cover of the projector and the side cover
plate of the Light Processor compartment has to be removed. This procedure assumes that the
cover and plate are already removed.
Required tools
3mm Allen wrench.
How to remove the Light Pipe from the corner block?
1. Disconnect the wire (reference 1 Image 10-3) of the temperature sensor on the Light Pipe heatsink and
release it from the cable clamp.
Light Pipe
