R5906848 /04 DP2K SLP Series280
Note: The left side cover is partial captured by the sheet metal of the small filter assembly. For that,
this filter is partially removed for the removal of the side cover.

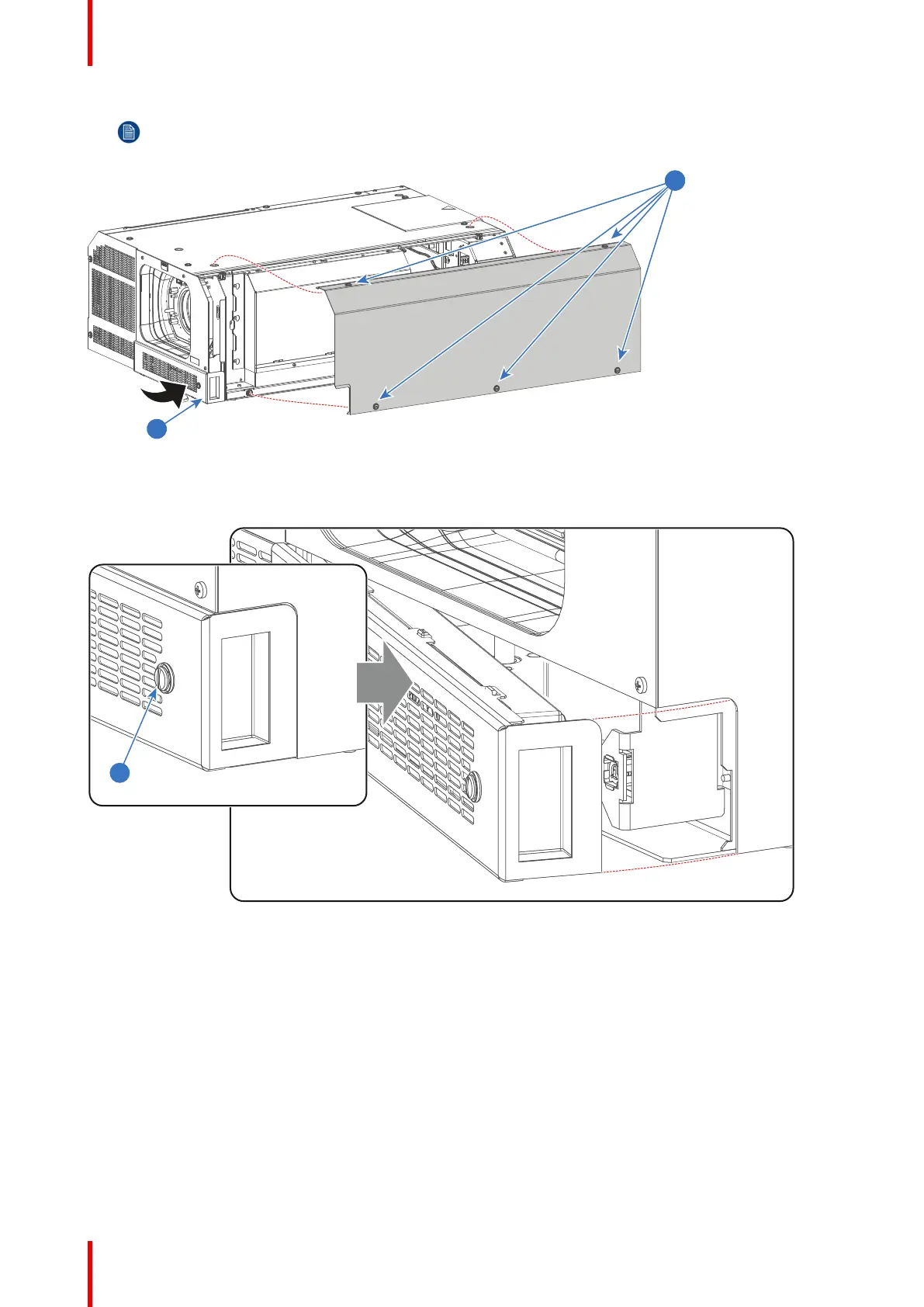

Image 22-12
3. Install the small dust filter at the front side of the projector. Use a 7 mm flat screw driver to fasten the captive
screw (reference 2 Image 22-13) of the small dust filter assembly.
Image 22-13
22.10 Installation of the top cover
Required tools
Flat screwdriver 7 mm
How to install the top cover?
1. Install the top cover on the projector.
2. Fasten the four captive screws (reference 1 Image 22-14) of the top cover using a 7 mm flat screwdriver.
Removal and installation of the projector covers
