R5906848 /04 DP2K SLP Series 221

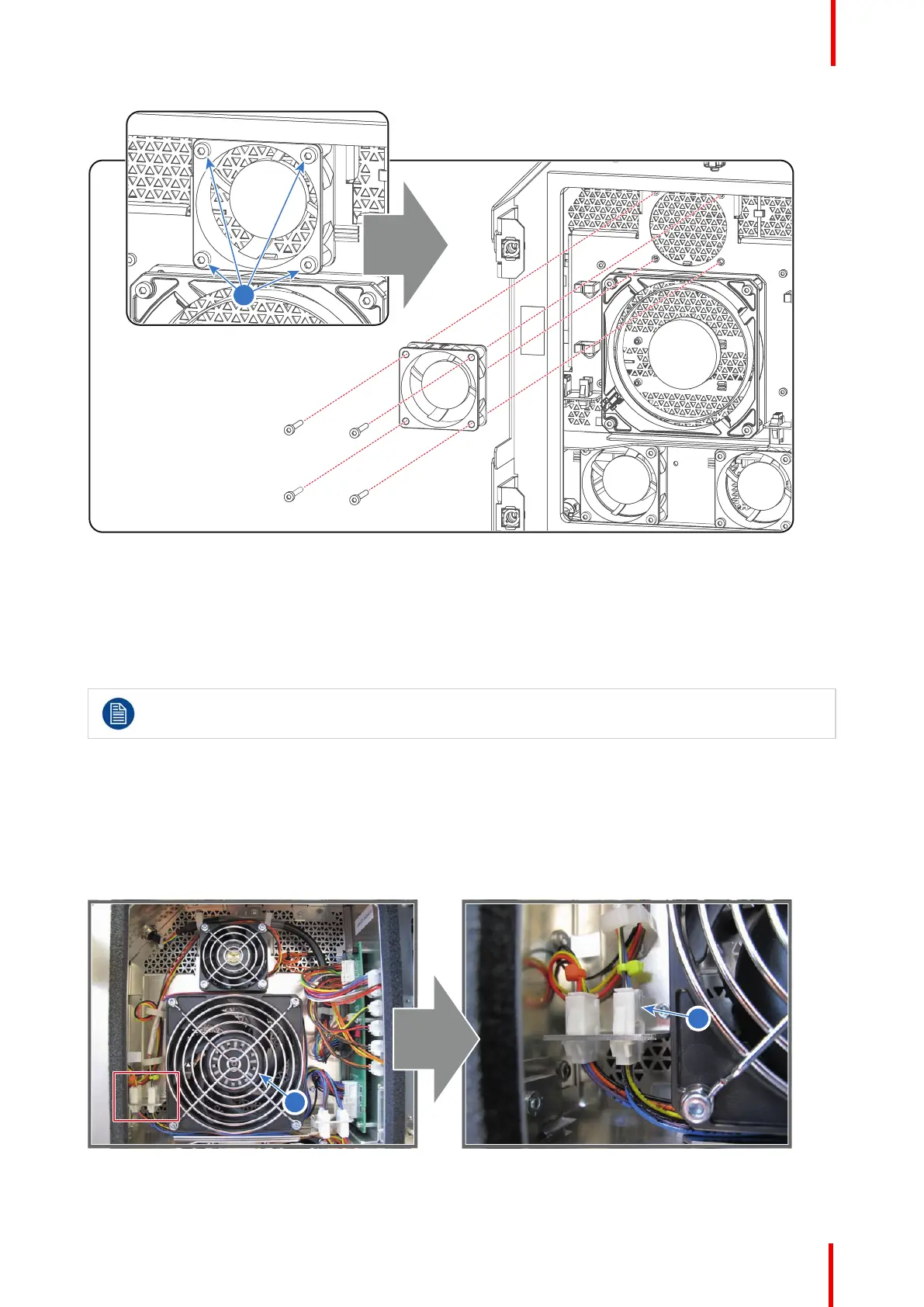

Image 18-11
3. Connect the wire of the new fan with the left socket (reference 3 Image 18-10) and engage the wire in the
cable clamps.
18.11 Replacement of the Card Cage large fan
This procedure assumes that the large dust filter is removed from the projector.
Required tools
3mm Allen wrench.
How to replace the large fan of the Card Cage?
1. Disconnect the wire with the yellow cable tie (reference 4 Image 18-12) of the large fan (reference 2Image 18-
12) and release the wire from the cable clamps.
Image 18-12
Card Cage
