Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series66
7.7 Mounting of the Controller assembly
How to mount the Controller assembly?

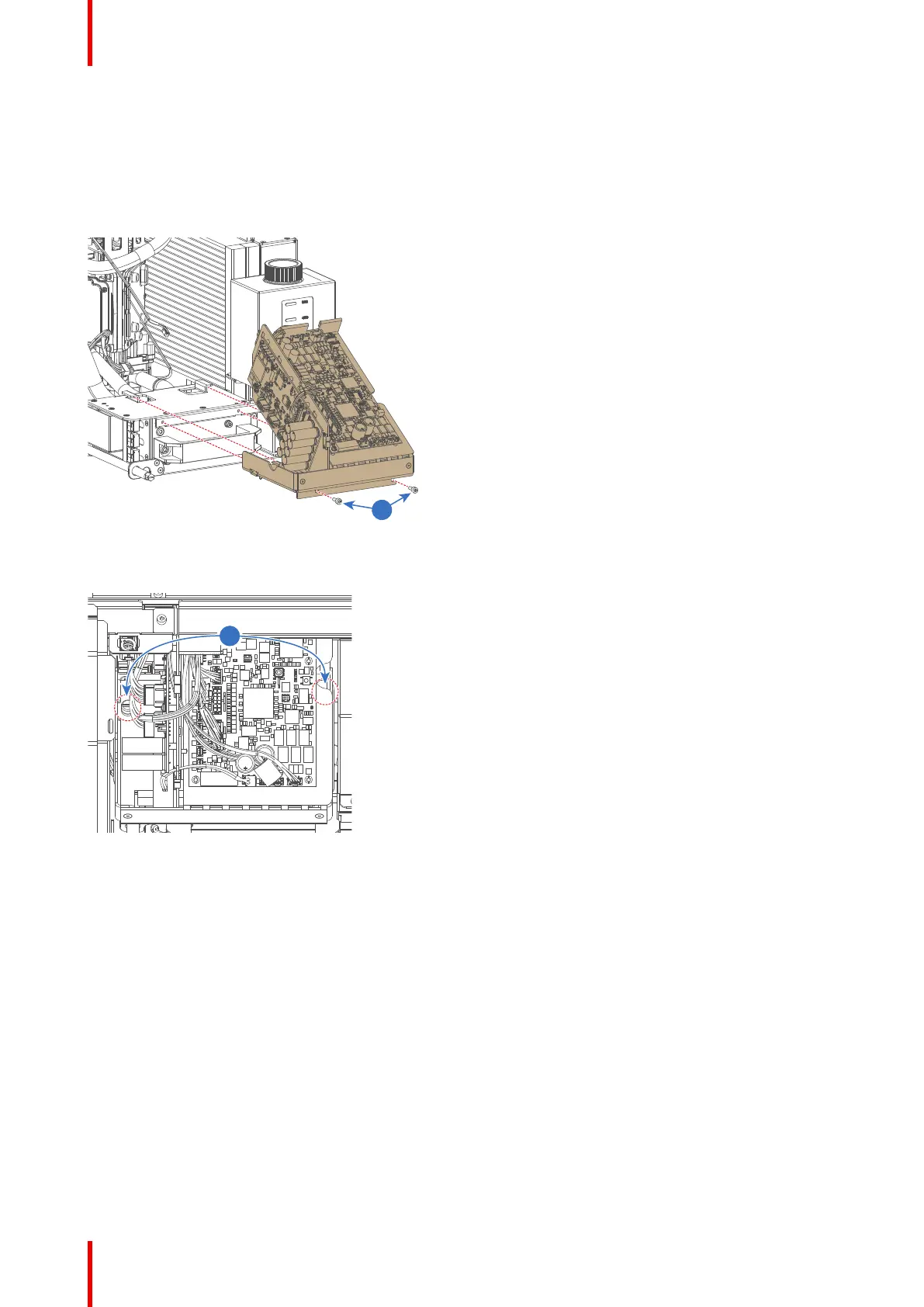

1. Place the Controller assembly onto the Light Source as illustrated. Use a 3 mm Allen wrench to Tighten the
two hex screws (reference 2, Image 7-13).
2
Image 7-13
2. Tighten the 2 set screws on the topside of the Controller assembly (reference 1,Image 7-14 ).
1
Image 7-14
3. Reconnect the wiring onto the Controller assembly.
4. Place cable binders to hold the light source wiring onto the controller assembly. Do this as illustrated
(reference 1, Image 7-15).
Laser Phosphor Light Source
