R5906848 /04 DP2K SLP Series 163

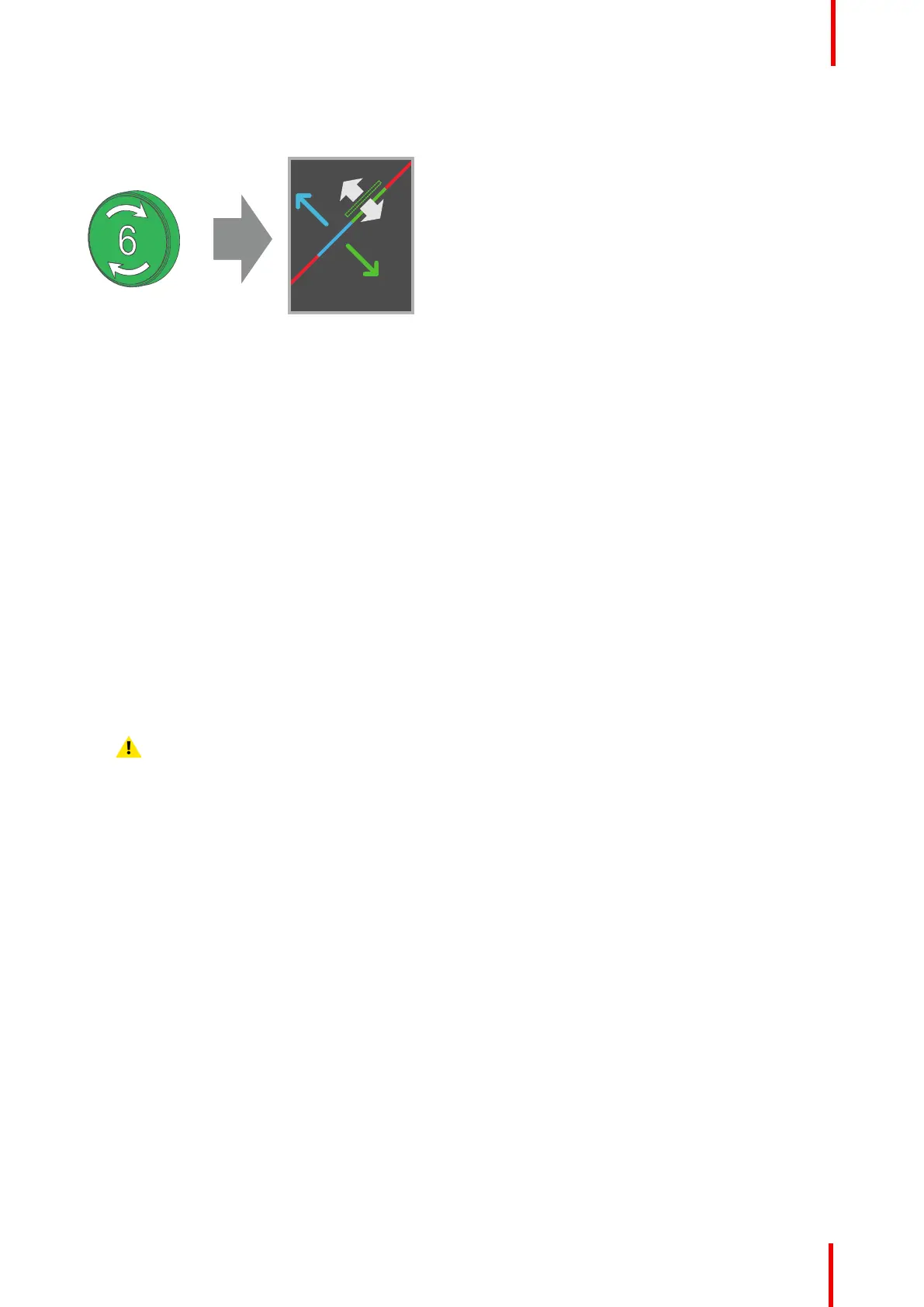

3. Slightly turn the green colored control knob number 6 until the green pattern in the upper right of the
projected image converges with the red pattern.
3
6
Image 14-10
4. Repeat step 2 and 3 until coincidence is obtained of the green pattern in the lower left and upper right of
the projected image.
5. Repeat from step 1 until full coincidence is obtained of the green pattern in the center, lower left and upper
right of the projected image.
6. Switch off the projector.
7. Continue with the procedure Closing off the Light Processor compartment.
14.5 Closing off the Light Processor compartment
Required tools
• 7mm flat screwdriver.
• 3mm Allen wrench.
How to close off the Light Processor compartment?
1. Place the fan on top of the Light Processor in the lower position . Ensure that the four mounting pins
(reference 1 Image 14-11) of the fan assembly are engaged.
Caution: Take care of the wire.
Convergence
