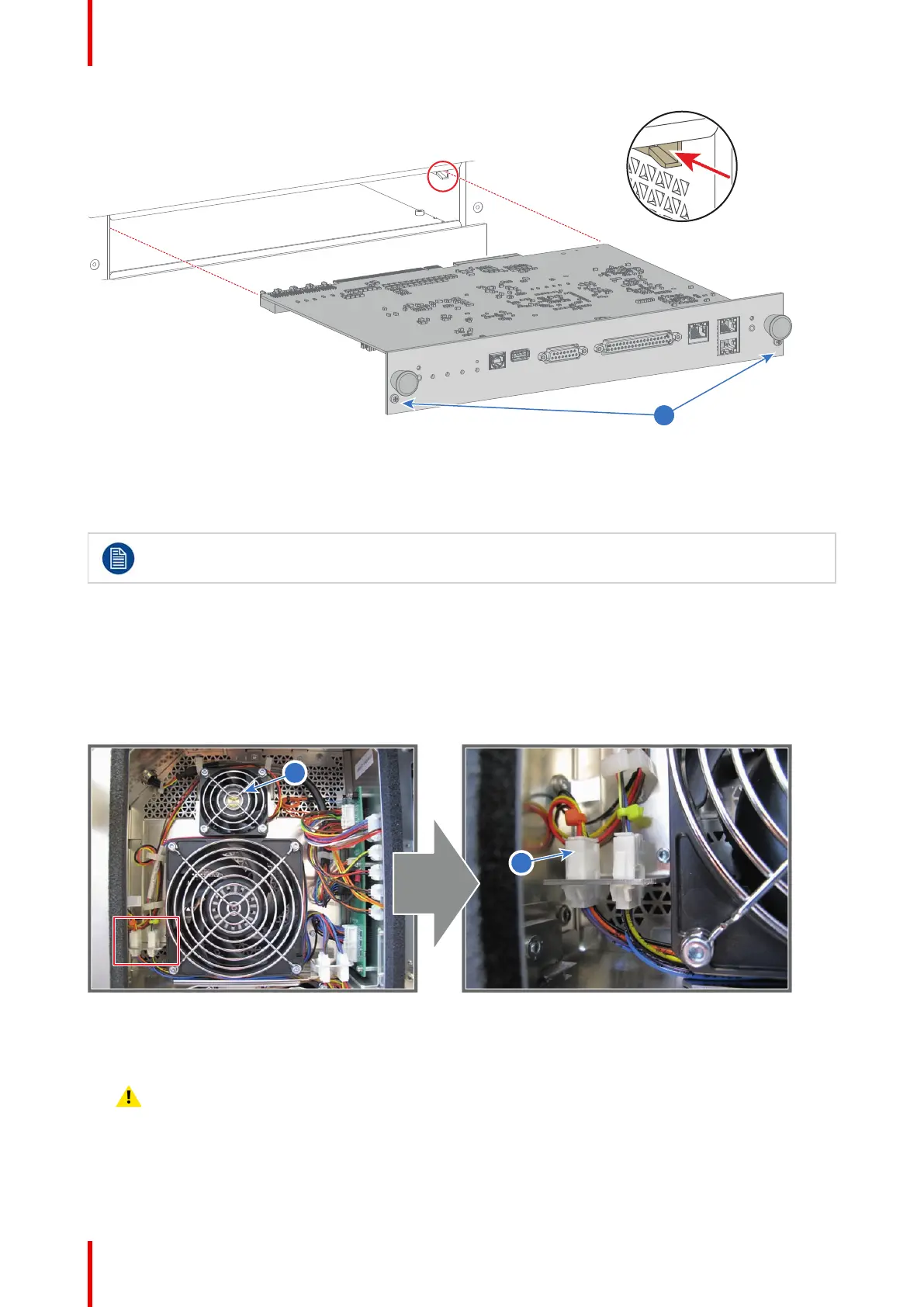

Image 18-9
18.10 Replacement of the Card Cage small fan
This procedure assumes that the large dust filter is removed from the projector. See procedure
“Check the large dust filter”, page 284
Required tools
3mm Allen wrench.
How to replace the small fan of the Card Cage?
1. Disconnect the wire with the orange cable tie (reference 3 Image 18-10) of the small fan (reference 1
Image 18-10) and release the wire from the cable clamps.
1
3
Image 18-10
2. Replace the small fan as illustrated. Use a 3mm Allen wrench to loosen/fasten the four fixation screws
(reference 5 Image 18-11).
Caution: Ensure to place the fan guard in front of the fan and that the airflow of the fan is towards the
Card Cage.
