Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 245
5
6
7
8
9
Image 18-58

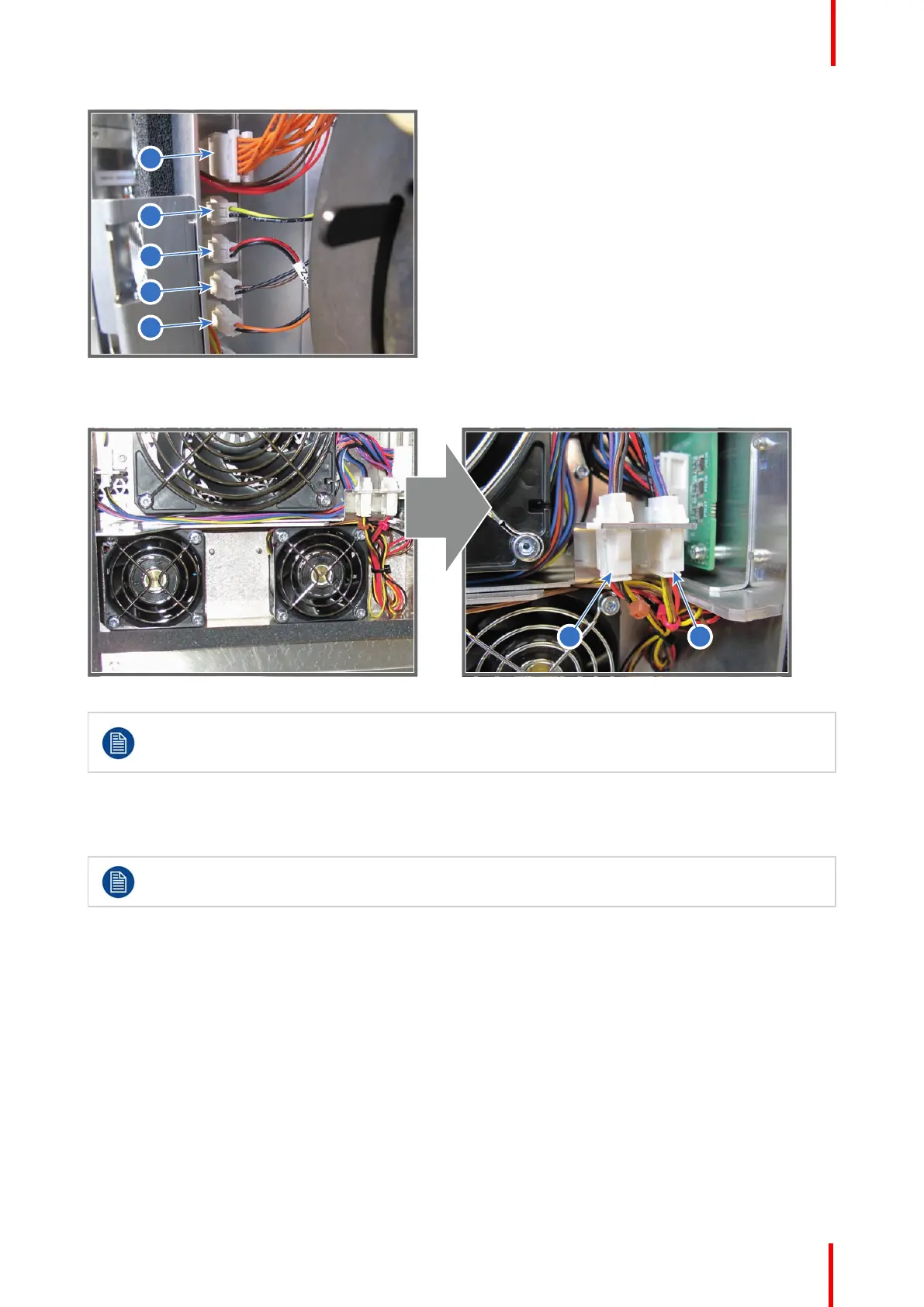

12. Connect the wire of both SMPS fans (reference 1 & 2 Image 18-59).
1 2
Image 18-59
Once that all wires are connected with the Signal Backplane, all components that were removed
can be reinstalled such as : Card Cage cover, Anode Fan, Light Source and cover, top cover plate
of the Light Processor compartment, large dust filter, and finally the projector top cover.
18.22 Installation of the Card Cage cover
This procedure assumes that Light Source cover and large dust filter are removed from the
projector.
Required tools
Phillips screwdriver PH2
How to Install the Card Cage cover onto the projector?
1. Place the Card Cage cover in its place.
2. Fasten the four fixation screws (reference 1 Image 18-60) of the Card Cage cover as illustrated. Use a PH2
Phillips screwdriver.
Card Cage
