Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series70
3
2
4
1

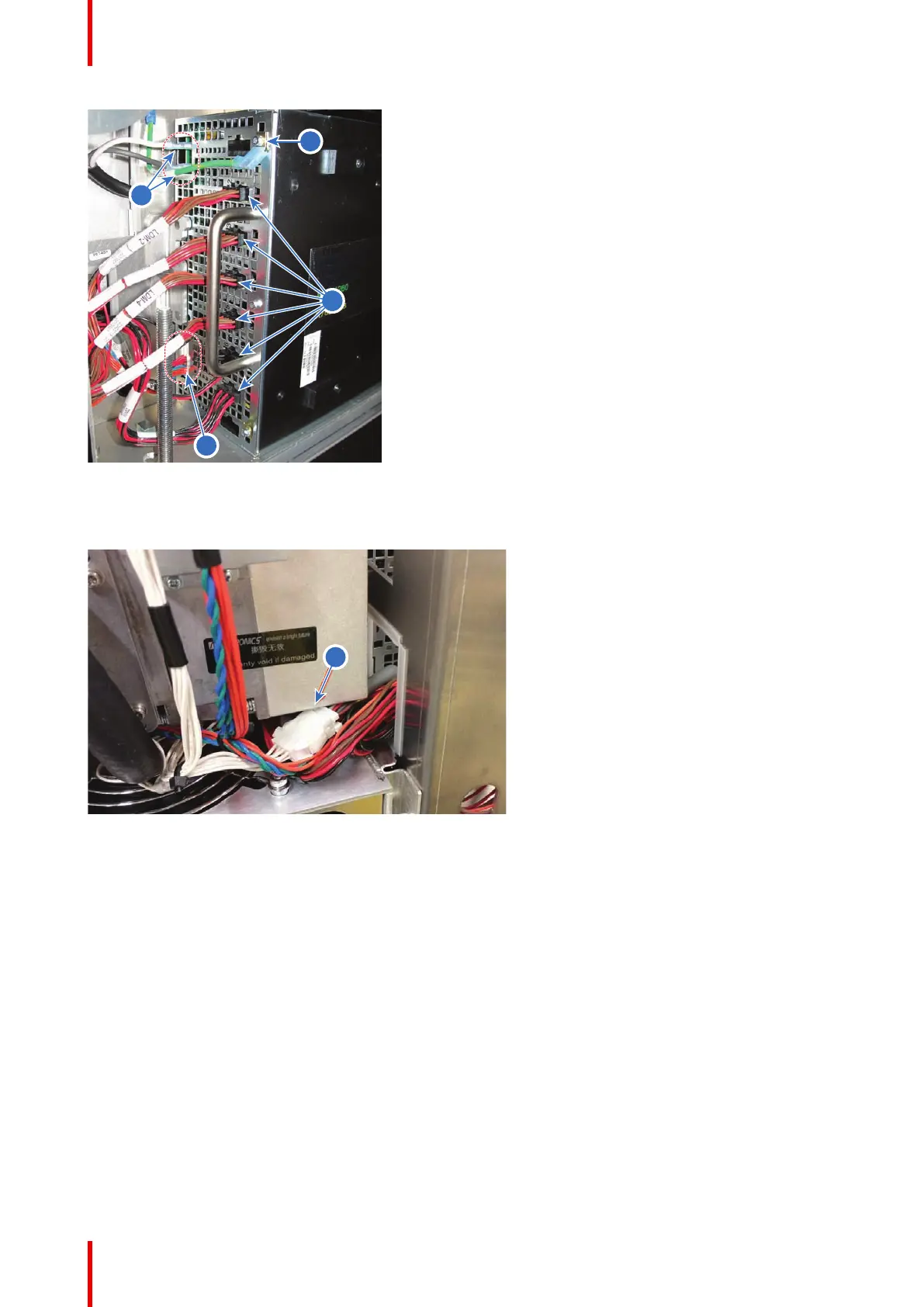

Image 7-22
5. Connect the LCB Control cable connector (reference 5, Image 7-23) with the cable in the LDM space. Once
connected, place the connector in the Light Source compartment instead of the LDM compartment.
5
Image 7-23
6. Install the Right Side cover, back cover and Light Source Cover.
7.9 Replacing the Phosphor Wheel Interconnection
Board
Required tools
• Phillips screwdriver PH1
• Side cutter
Required parts
• Phosphor Wheel Interconnection Board
• Cable binders
How to replace the Interconnection Board?
1. Remove the Left side cover.
Laser Phosphor Light Source
