Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series272
22.1 Removal of the Light Source cover
WARNING: Switch off the projector prior to start with this procedure, unless otherwise specified in
the procedure.
Required tools
Flat screwdriver 7 mm
How to remove the Light Source House cover?

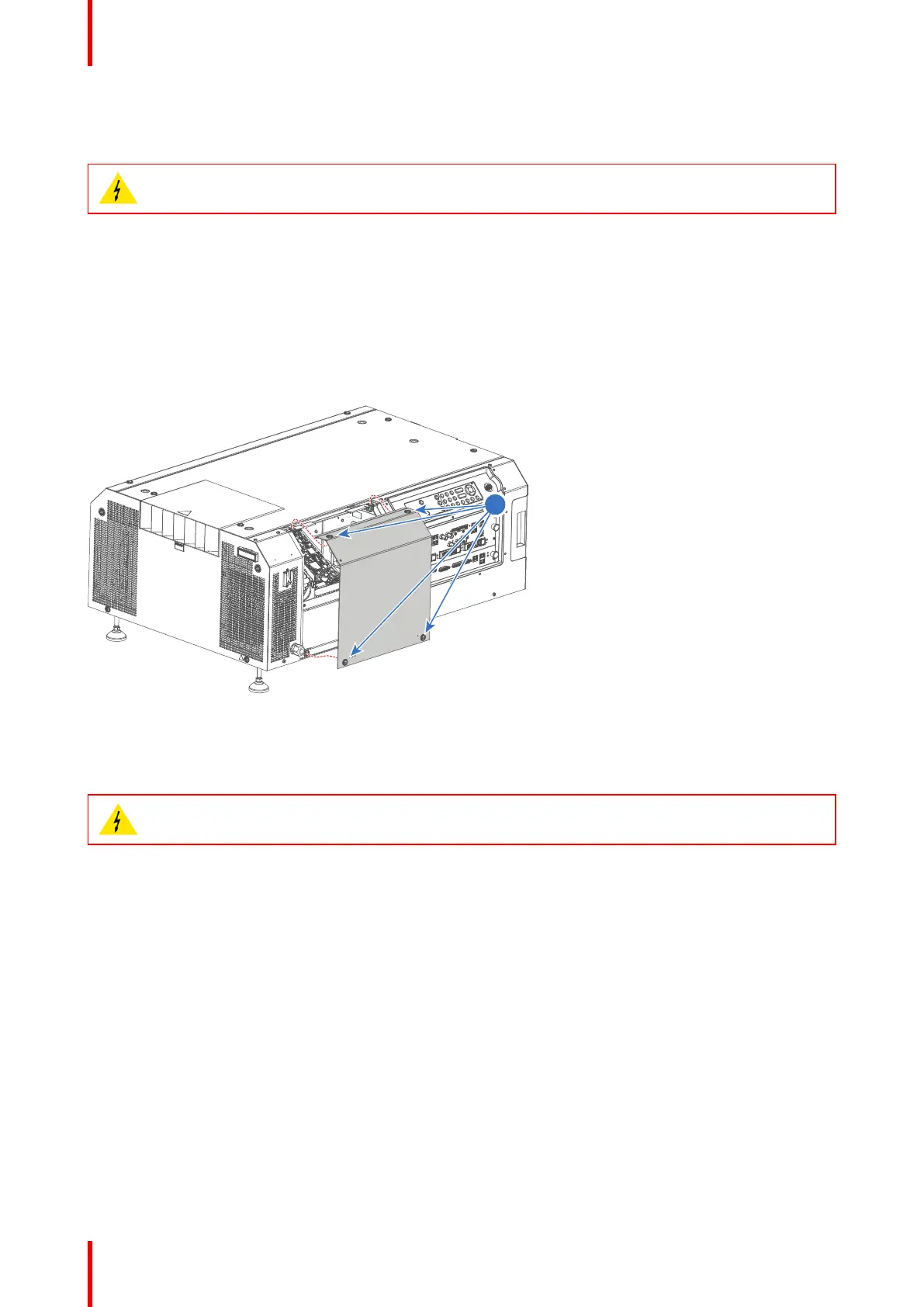

1. Loosen the four captive screws (reference 1 Image 22-1) of the Light Source cover using a 7 mm flat
screwdriver.
2. Remove the Light Source cover from the projector.
1
Image 22-1
22.2 Removal of the rear cover
WARNING: Switch off the projector prior to start with this procedure, unless otherwise specified in
the procedure.
Required tools
Flat screwdriver 7 mm
How to remove the rear cover?
1. Loosen the four captive screws (reference 1 Image 22-2) of the rear cover using a 7 mm flat screwdriver.
2. Remove the rear cover from the projector.
Removal and installation of the projector covers
