Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series18

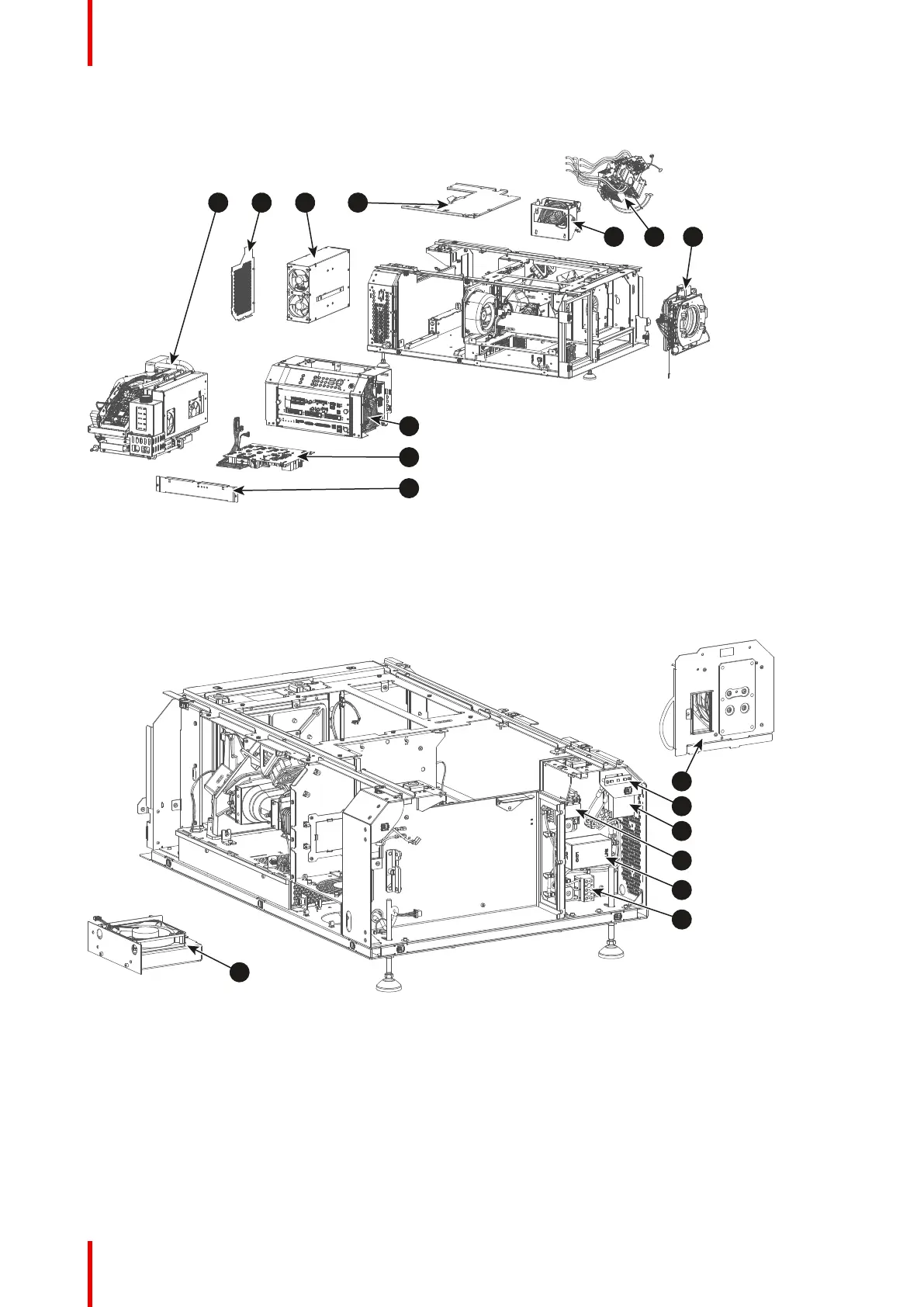

Main internal components
2
8
9
10
1 3 4
5 6 7
Image 2-3
1 Laser Phosphor Light Source
2 Cover plate main AC compartment.
3 Laser Driver Module (LDM)
4 Cover plate of Light Source compartment.
5 Fan of Light Processor compartment.
6 Light Processor.
7 Lens Holder.
8 Card Cage.
9 Switch Mode Power Supply (SMPS).
10 Cover plate SMPS compartment.
1
2
3
4
5
6
7
Image 2-4
1 Cathode Fan assembly.
2 Projector Status Light.
3 ON/OFF switch.
4 Solid State Relay.
5 Mains Input Filter.
6 3-slot terminal block.
7 Cold Mirror Fan assembly.
