Bruker M4 TORNADO User Manual

Using the M4 TORNADO Software
102
User Manual
6.9 Area Analysis - Mapping
The Area workspace allows the determination of the element distribution in an area.

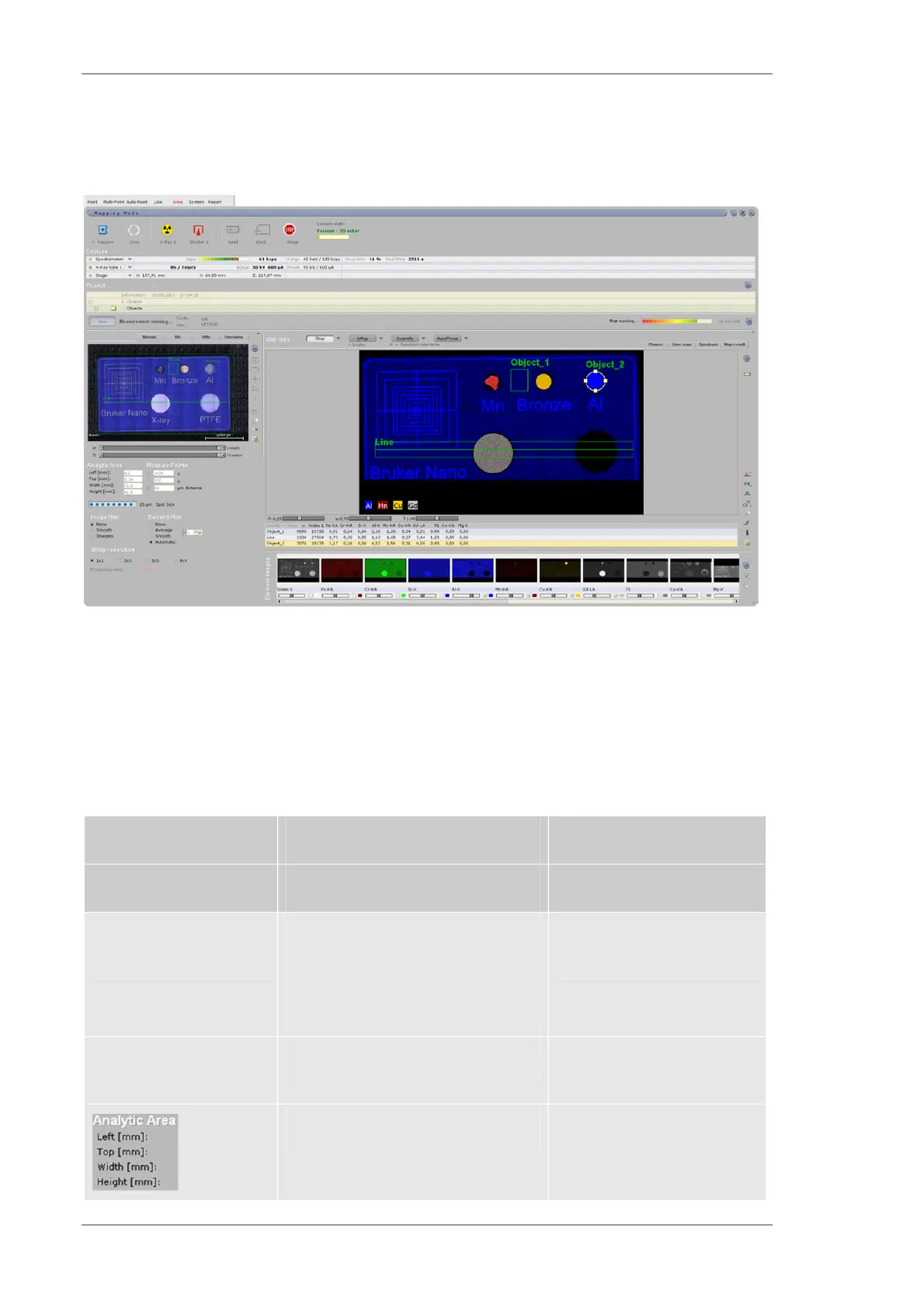

Fig. 43 The Area workspace
6.9.1 Definition of measurement conditions
The mapping area can be set on the sample image in every presentation mode by moving the
edges with the mouse.
Table 36 Options of the Area workspace
Object Description Hints
Top left Defining the mapping area
Image with highlighted
area
The sample image can be prepared in
all magnifications (Mosaic, 10x, 100x)
The green highlighted area defines the
mapping area.
Move the mapping area by
click & drag on the corners
Functions keys right and
below the image
Image manipulation See Table 21
Size of the selected image in mm
