Bruker M4 TORNADO User Manual

Using the M4 TORNADO Software
M4 TORNADO
111
Another important spectrum is the maximum pixel spectrum (see Table 37). This spectrum is
artificial and will be calculated from the highest content of every channel independent of the pixel.
This spectrum allows the identification of elements that are concentrated only in hotspots. With
this knowledge, the calculation of the distribution of these elements is possible.
All other functionalities of the spectrum display are the same as described in section 6.3.2.

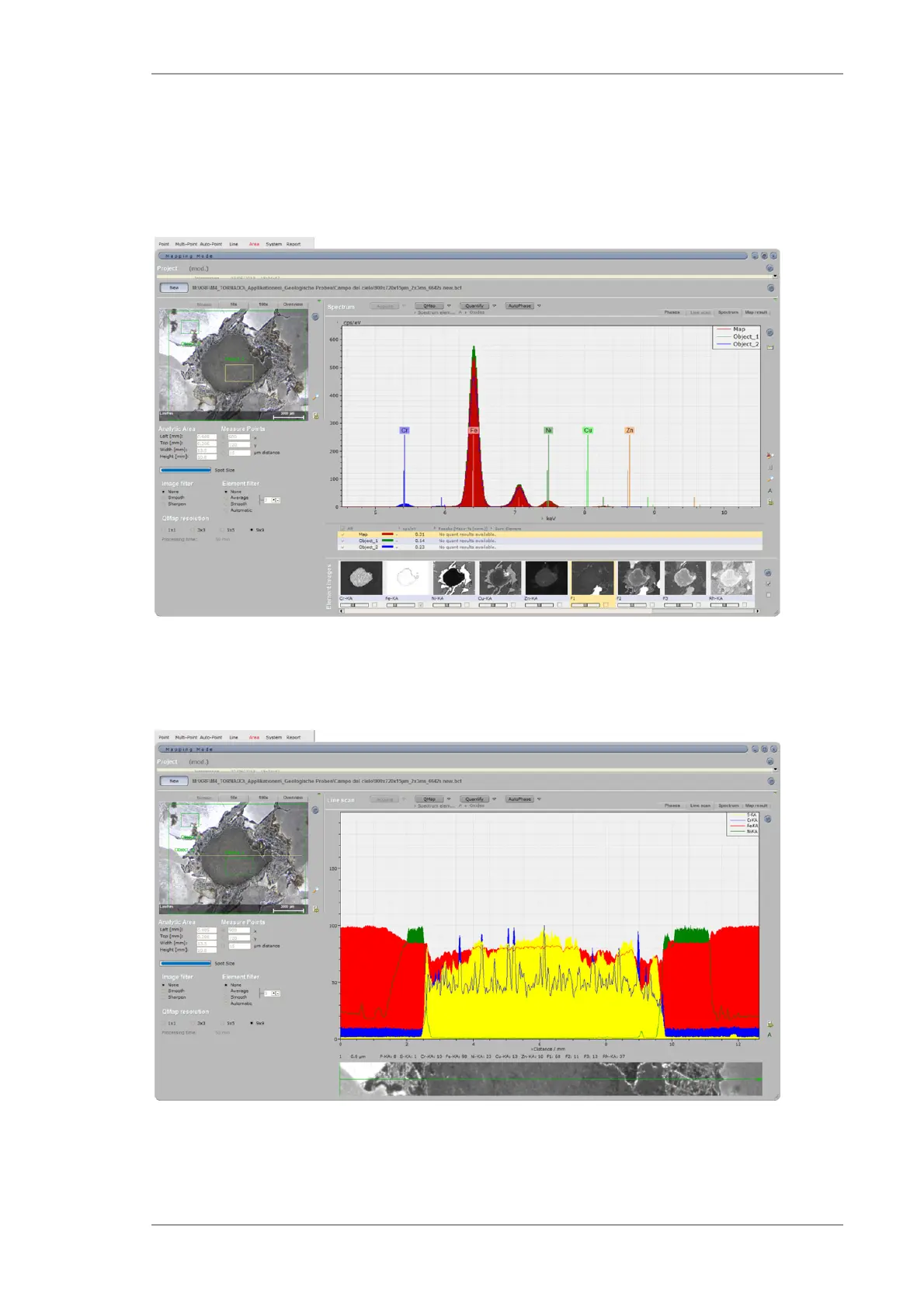

Fig. 51 The Spectrum tab
6.9.5 The Line scan tab
Fig. 52 The Line scan tab
The functionality is the same as described in section 6.8.2.
