2042480-001 C Dash 2500 Patient Monitor 3-13
Using the Dash 2500 Patient Monitor: Large Numeric Display

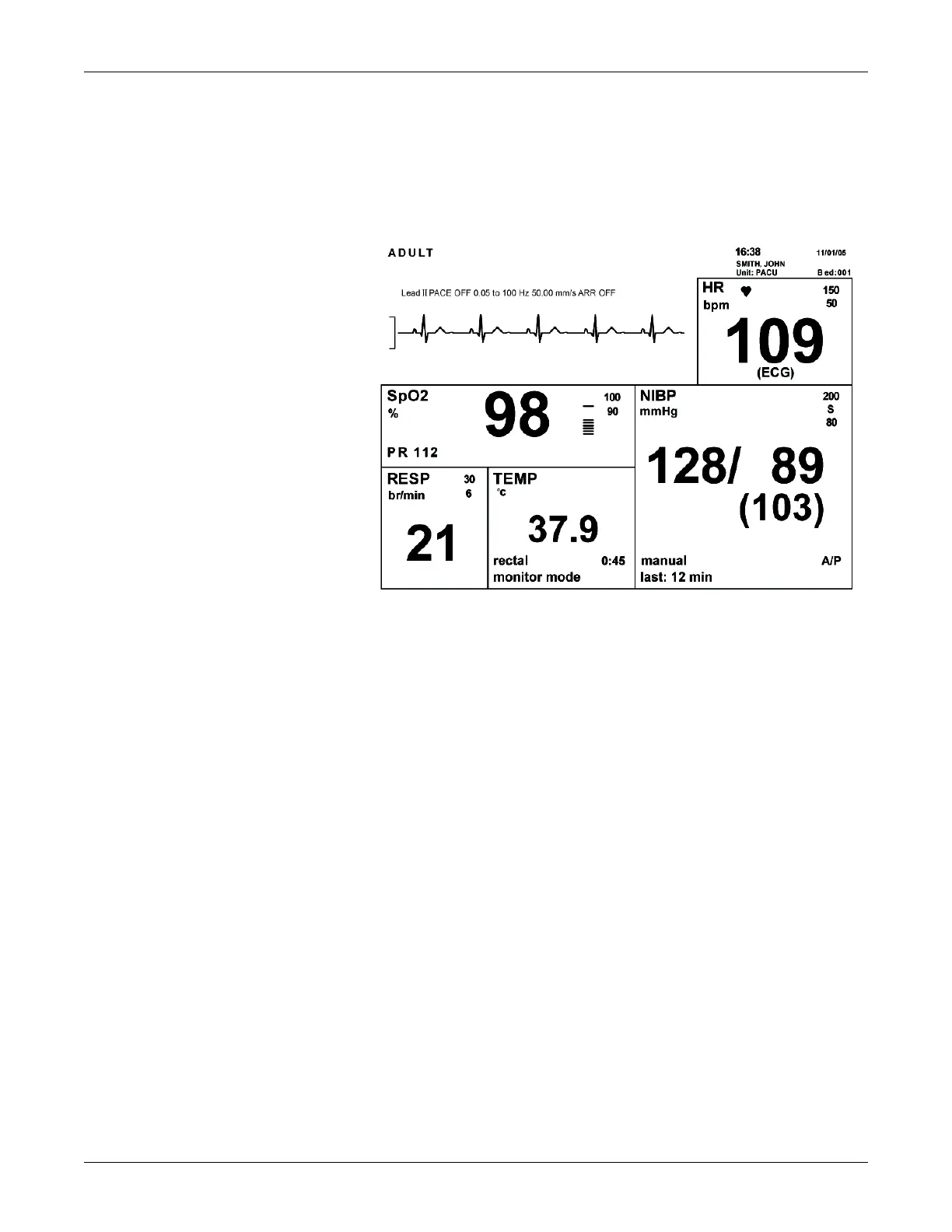

Large Numeric Display
Select the large numeric display option in the Main Menu. The large numeric
display option is available only when the SelectBox is not activated.
NOTES
When any action causes an entry to be placed in the SelectBox, the large
numeric display disappears from the screen.
When any hardkey is pressed except Silence Alarm, Print and NIBP Go/
Stop hardkeys, the large numeric display disappears from the screen.
When the Trim Knob is pressed or rotated, the large numeric display
disappears from the screen, and the Main Menu appears.
When the Trend hardkey is configured for Mini Trends and the large
numeric display is active, if the Trend hardkey is pushed, the large numeric
display disappears and the main monitoring screen with Mini trends on
becomes viewable.
Hardkeys
Each of the push-button hardkeys activates specific functions. Hardkeys that
have double functions are activated by either a quick-push or a push-and-hold.
A quick-push means that the hardkey must be pressed for less than 1 second. A
push-and-hold means that the hardkey must be pressed for more than 1
second. A confirmation tone sounds when the hardkey becomes active.
