2042480-001 C Dash 2500 Patient Monitor 7-7
Recorder: Sample Printout
setup timed
The extended menu that appears when you select this option lets you choose
the waveforms to be printed, the chart speed, and the length of the strip. You
can select up to two waveforms; if you do not specify a waveform, the
waveform with the highest priority will be printed. You can set the chart speed at
12.5, 25.0, or 50.0 mm/s. You can set the length of the strip between 8–30
seconds.
NOTE: If the length of the strip is set to less than 16 seconds, the 12.5 chart
speed is unavailable; or if the chart speed is set to 12.5, the length of the
strip cannot be set for less than 16 seconds.
Record key printout
This option lets you choose where the Monitor prints with a quick-push of the
Print hardkey. Choose at CS (central station) or at bedside.
NOTE: If the recorder/printer is disabled or not included with the Monitor, at CS
becomes the default setting.

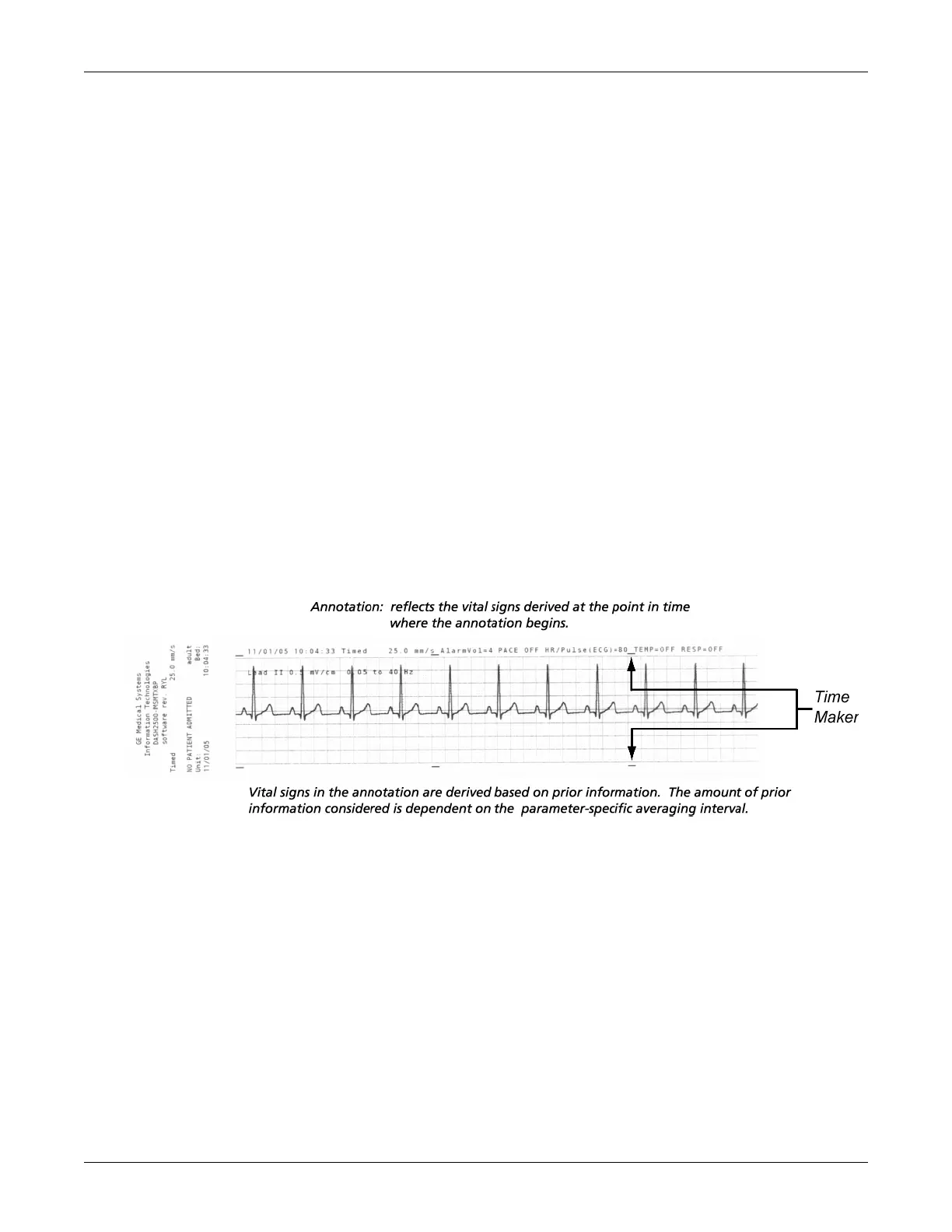

Sample Printout
Accessories
The Recorder/Printer requires thermal paper in 50 mm wide.
Storage
Store thermal paper in a cool, dry place. The printed strip (thermal paper
recording) should not be
exposed to direct sunlight,
