Channel Measurements Menu Map and Softkey Descriptions
Channel Measurements Softkey Function Descriptions
RECALL FRM INT Description
The recall from internal memory function recalls a trace into trace B for use
as a reference trace or to recall a system frequency response trace.
This function simplifies recalling a trace from the analyzers internal memory.
A trace can also be recalled from a memory card using procedures provided in
the analyzer user’s guide.
Procedure
1. To recall a trace into trace B, press RECALL FRM INT
2. After the message REGISTER # appears, enter the trace number the trace
was stored under in SAVE TRB TO INT , then press [ENTER].
The trace is recalled to trace B in view mode. It is complete when the
message MAX REG # = 52 is added to the display as shown in Figure 5-9.
SA UB
:
SC FC .i I .:
..., ,. ,,, ..i... I
.i
CORR “.’ : : : : :
CONTINUE
:
..:
:
:
:
MRIN
MENU
START 54.0 MHz STOP 425.0 MHZ
YRES BW 5.0 MHz
YUBW 1 MHz YSWP 8.00 set

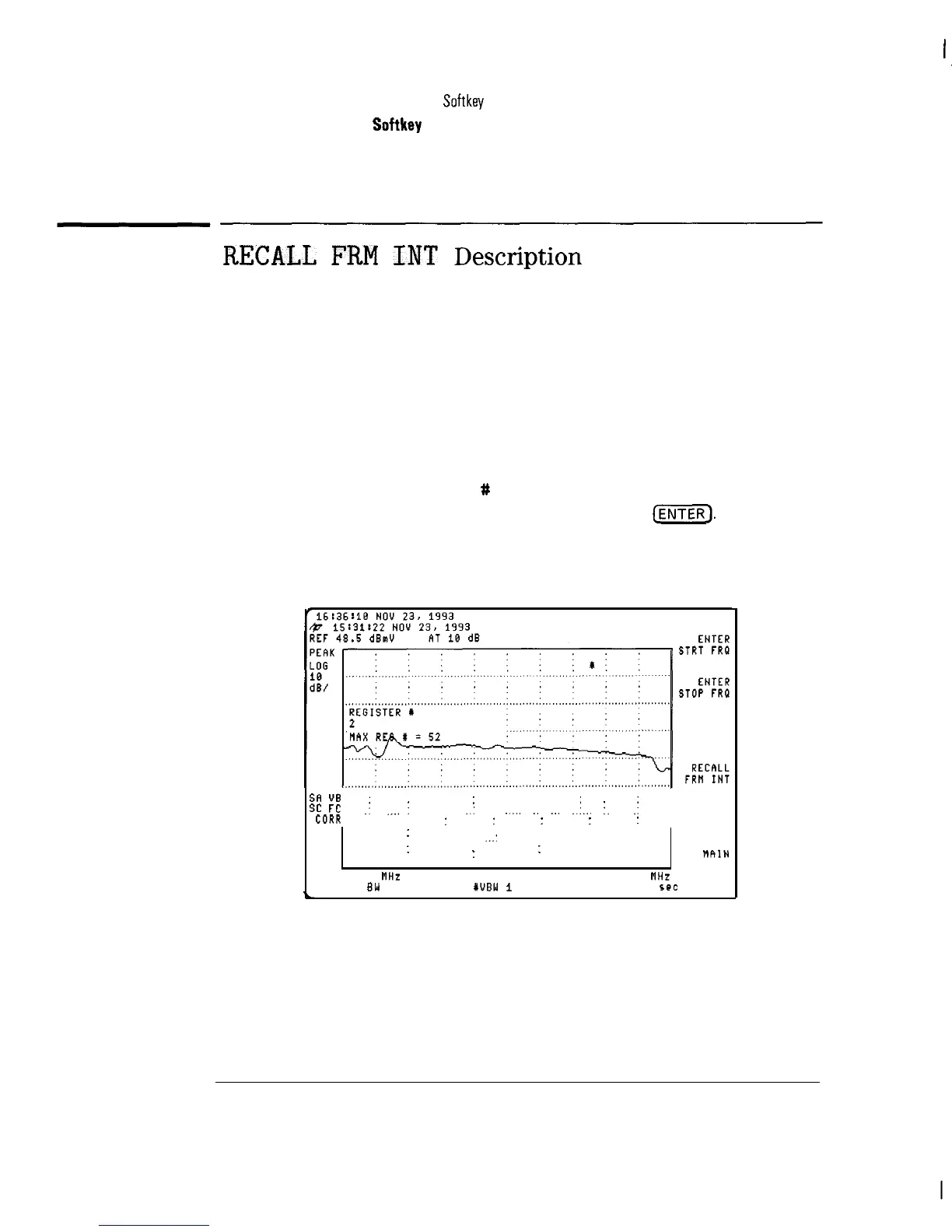

Figure 5-9. Trace B, Recalled
5-20
