Channel Measurements
Making Channel Measurements
NOTE
If the left marker is placed to the right of the right marker, the message “MKR 2 > MKR 1 ?” is
displayed. The measurement will not be performed until the markers are repositioned properly
Use the AVERAGE key to turn averaging on or off. When averaging is enabled
the previous measurement result is erased.
Use the # OF AVERAGES key to set the number of sweeps to be averaged to
produce the final result. The input range is from 1 to 999 and the default is
10.
If averaging is off, the total power is recalculated and displayed automatically
at the end of each sweep. With averaging on, the result is displayed after the
number of specified sweeps have been reached. All results are displayed in
current measurement units,
'16:41:38 SEP 12, 1996
& CHPoNNEL m (STD)
REF 29.3 dBmV
AT 10 dB
SRPL
\
NKR 317.58 MHz m
-29.53 dBnUMARKER 1
CORR hVG q
6 Q# i0
DIGITAL
CHANNEL POWER =
(power between
dBmV markers)
MAIN
MENU
START 310.00 NHz
STOP 318.08 MHz
YRES BW 10B kHz
YUBW 1 MHz
SWP 20.0 mset RT
J

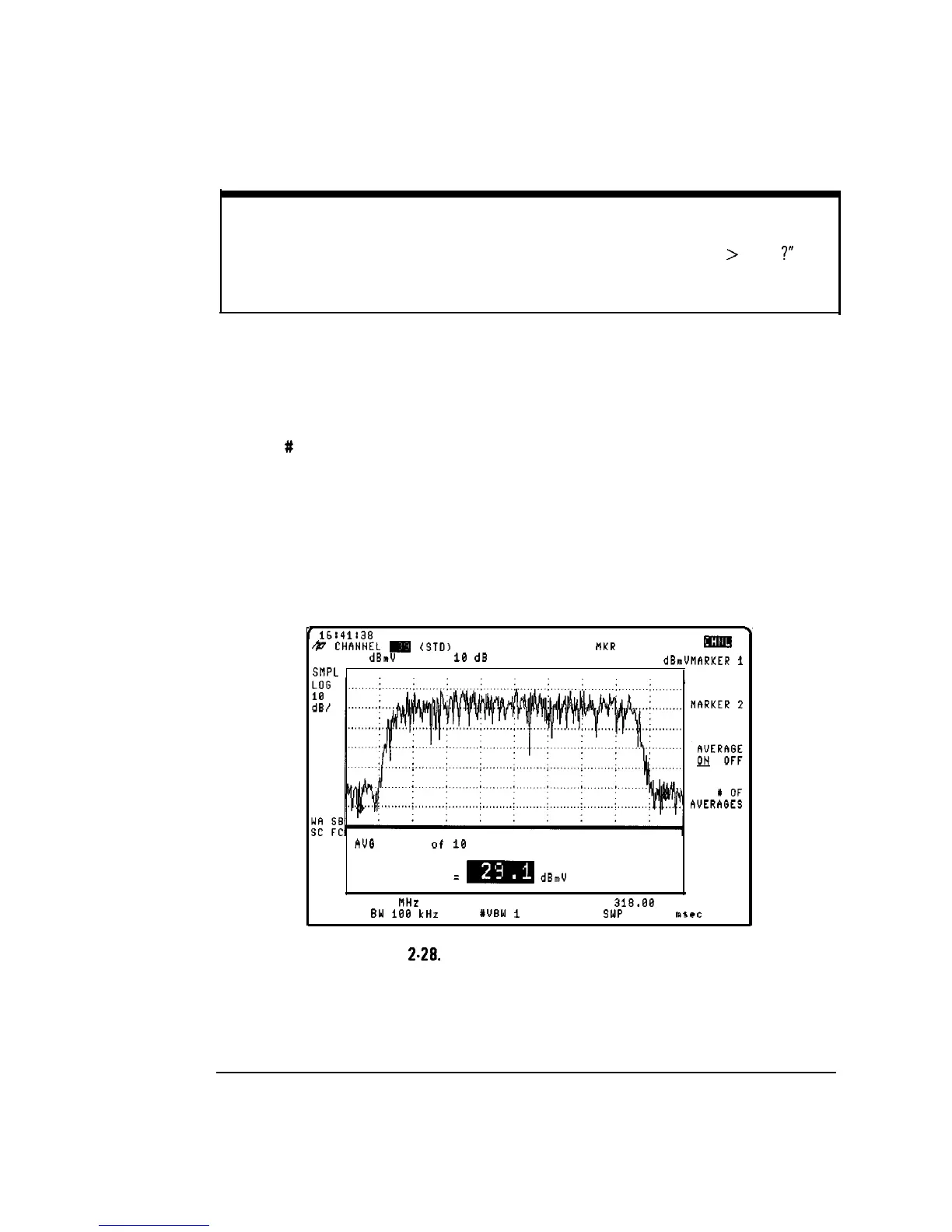

Figure 2.28. Results of Digital Channel Power Test
