Channel Measurements
Making Channel Measurements
REF 119.5 mv AT lo dB
SELECT
TV
LINE
I.
WA SB
SC TC
CORR
x OF
AVERAGES
AUTO SIG
SEARCH
CONTINUE
I
CENTER 59.000 MHz
SPAN 0 HZ
#RES BW 300 kHz #“BW 3 MHZ
#SWP a0 pet

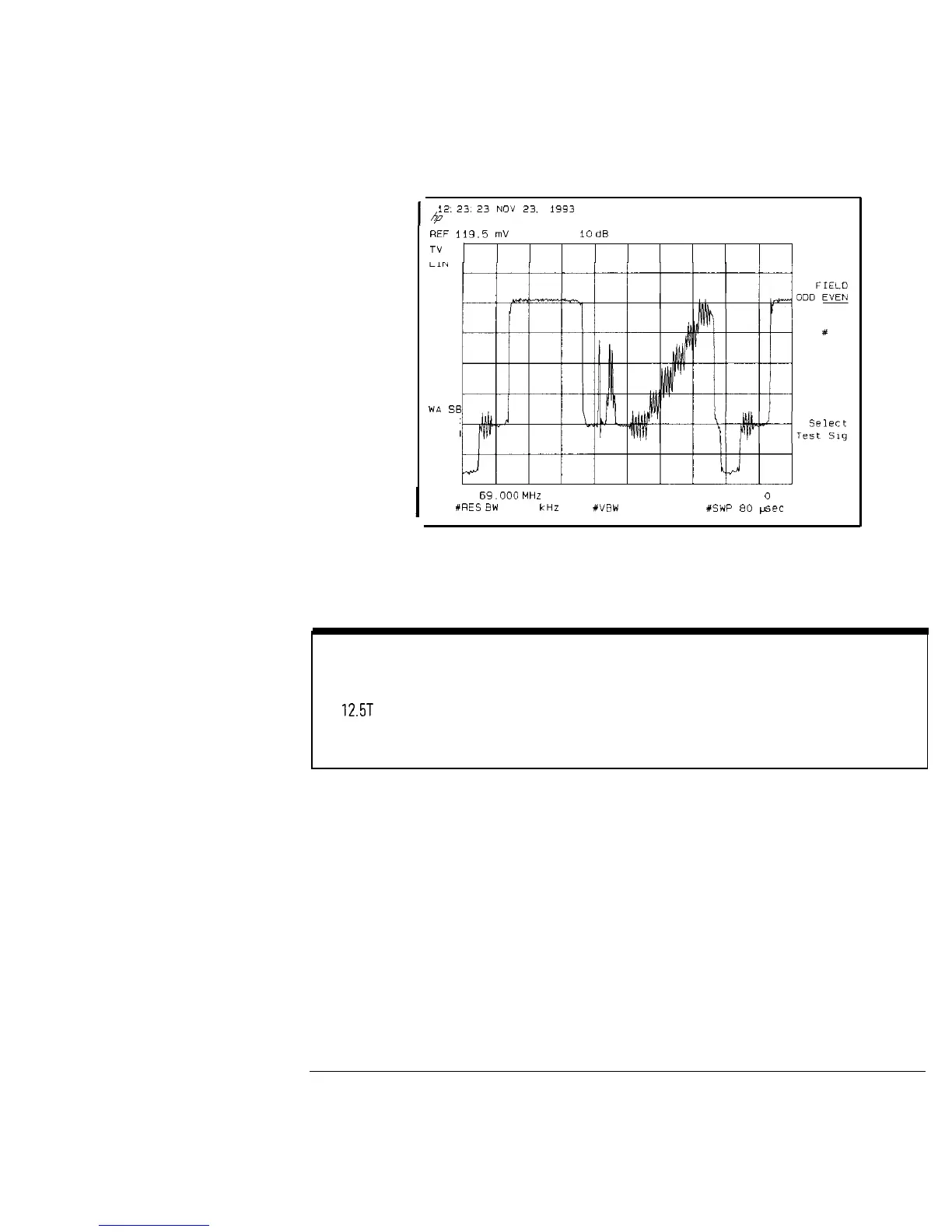

Figure 2-15. NTC 7 Composite Test Signal
NOTE
Chromalluma delay inequality measurements cannot be performed without a test signal line containing
a
12.5T pulse. Non-standard test signal timing will affect results. The analyzer’s internal frequency
calibration routine should be run at the temperature testing is to be performed.
3. If the desired test signal is not displayed, press SELECT LINE then enter
a line number, or press AUTO SIG SEARCH to execute the automatic
search routine.
4. Press FIELD ODD EVEN if you need to change the field.
2-23
